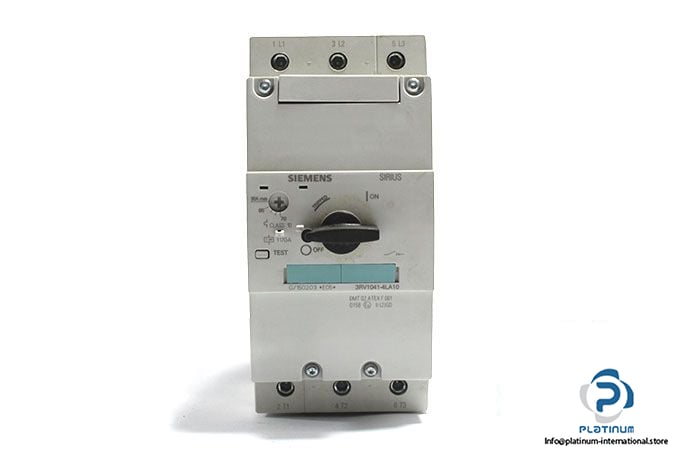

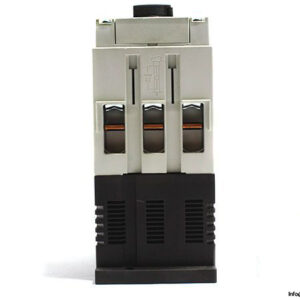

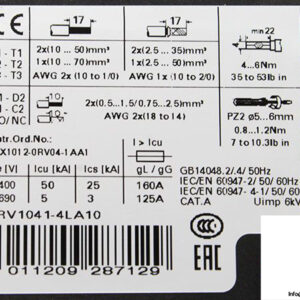

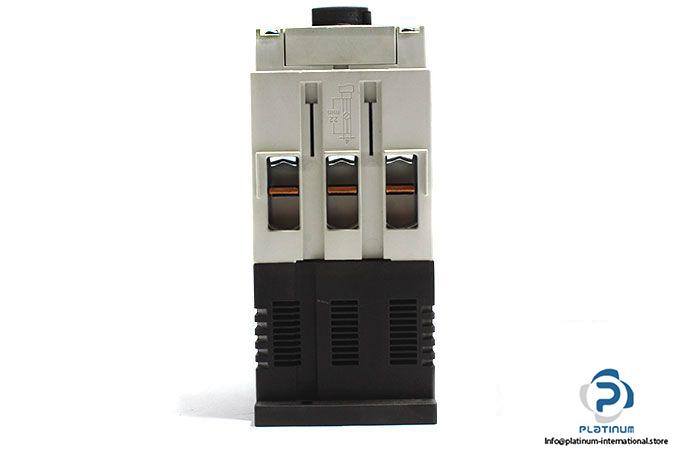

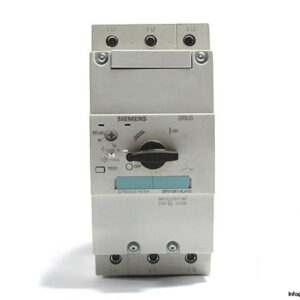

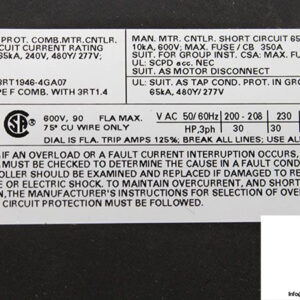

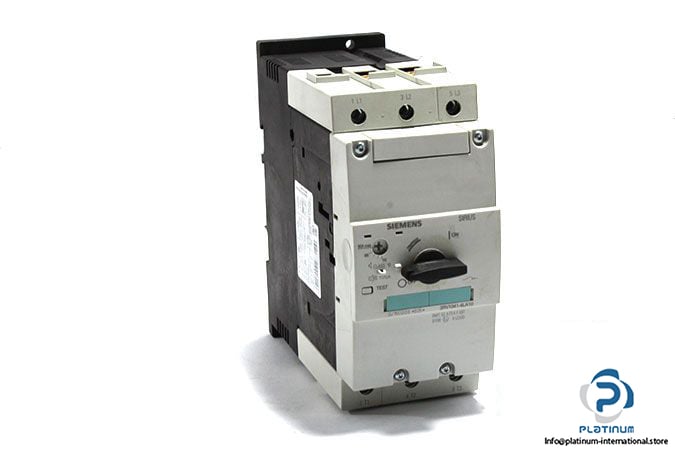

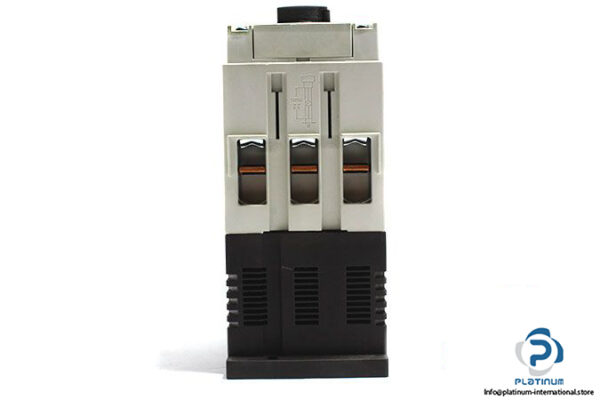

Siemens 3RV1041-4LA10 Circuit Breaker
CIRCUIT BREAKER
High-capacity Siemens Sirius 3RV1041-4LA10 circuit breaker with 90 A rated current, adjustable range 70“90 A, and thermomagnetic release for reliable motor protection in industrial environments.SIEMENS SIRIUS 3RV1041-4LA10 CIRCUIT BREAKER
The Siemens Sirius 3RV1041-4LA10 is a robust motor protection circuit breaker designed for reliable performance in demanding industrial environments. With high breaking capacity, adjustable current settings, and thermomagnetic release technology, it ensures dependable protection for motors and equipment.
Manufacturer: Siemens
Type: Circuit Breaker
Family: Sirius
Model: 3RV1041-4LA10

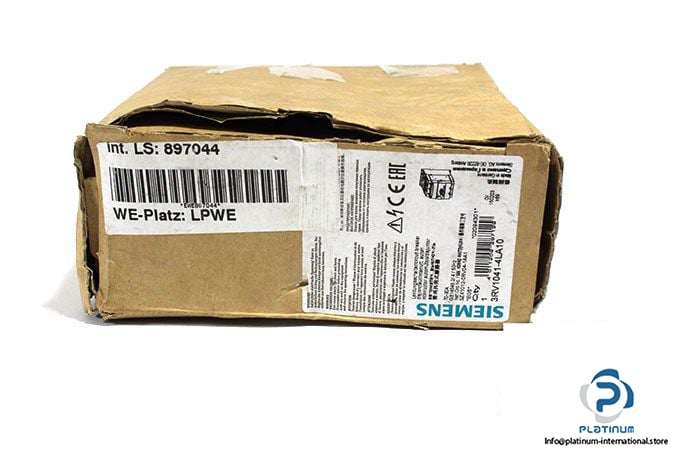

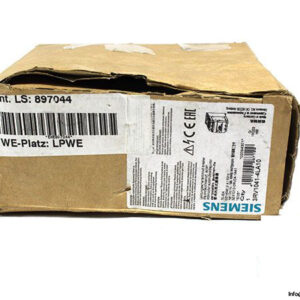

REF NO: 897044 / LPWE
Field of Application: Motor Protection
| Size | S3 |
| Number of Poles | 3 |
| Rated Current | 90 A |
| Range Adjustable Current | 70 / 90 A |
| Rated Operating Voltage | 690 V AC |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Operating Power | 45 kW |
| Breaking Capacity (Icu) | 100 kA (240 V AC), 50 kA (400 V AC), 5 kA (690 V AC) |
| Short-Circuit Release | 1170 A |
| Service Frequency | 50/60 Hz |
| Terminal Type | Screw Terminals |
| Design Release | Thermomagnetic |
| Dimensions (W x D x H) | 70 x 174 x 165 mm |
| Protection Class | IP20 |
| Trip Class | Class 10 |
| Operation Temperature | -20 / 60 °C |
