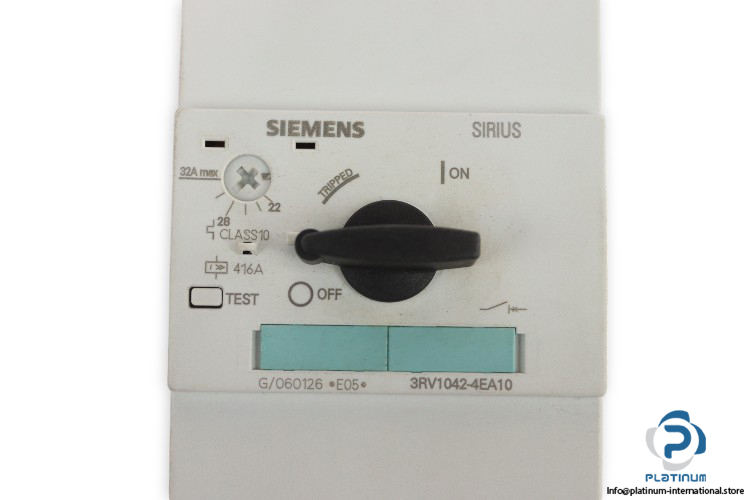

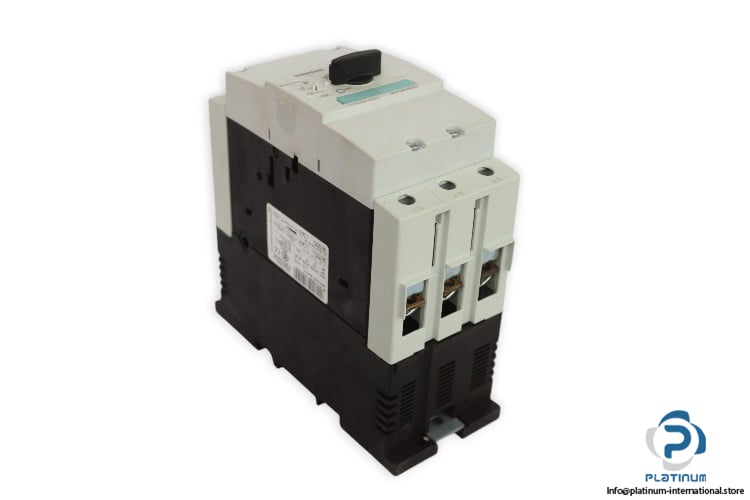

Siemens 3RV1042-4EA10 Circuit Breaker

Manufacturer: Siemens
Type: CIRCUIT BREAKER
Part No.: 3RV1042-4EA10
Family: Sirius

Size: S3
Number of Poles: 3
Short-Circuit release: 416 A
Active power loss: 20 W
Range Adjustable Current: 22 … 32 A
Rated Operating Voltage: 690 V AC/DC
Service power / at AC-3: 15 kW
Impulse voltage resistance / rated value: 6000 V

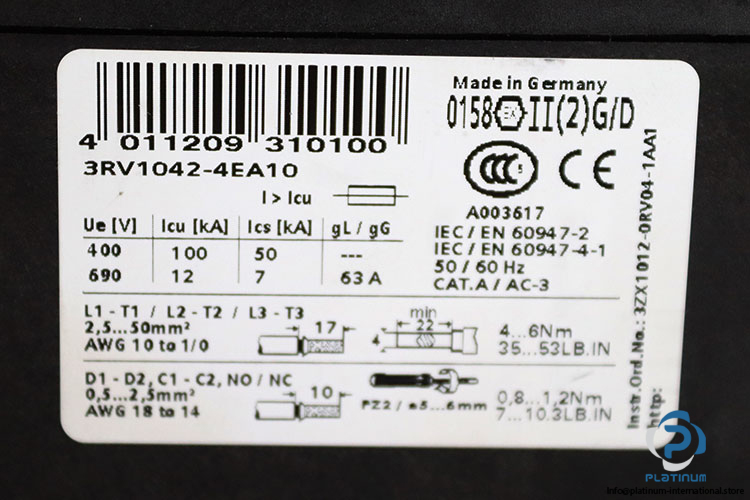

Ultimate Breaking Capacity (I_cu):
100 kA – 400 V
12 kA- 690 V
Service Breaking Capacity (I_cs):
50 kA – 400 V
7 kA – 690 V
Service Frequency: 50/60 Hz
Terminal Type: Screw Connection
Design Release: Thermomagnetic
Dimensions (W x D x H): 70 x 174 x 165 mm
Protection Class: IP20
Trip Class: Class 10
Operating Temperature: -20 … 70 °C
Standard: IEC/EN 60947-2 , IEC/EN 60947-4-1
