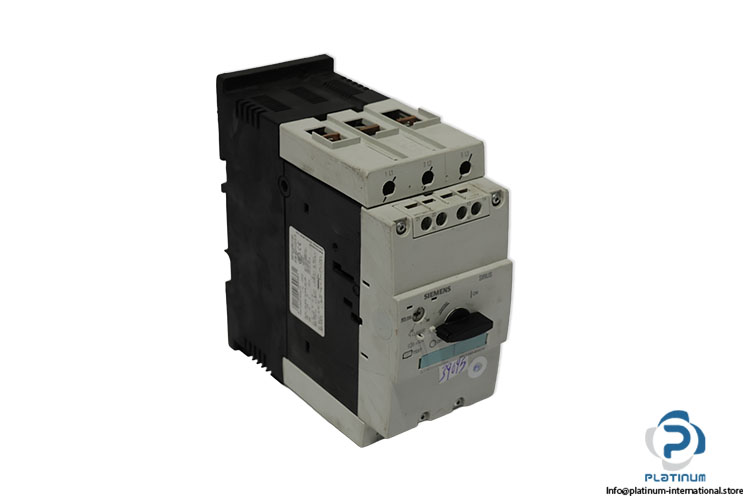

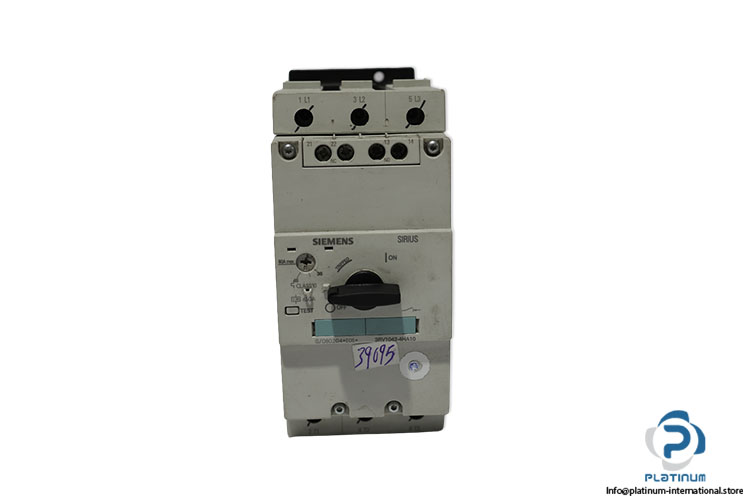

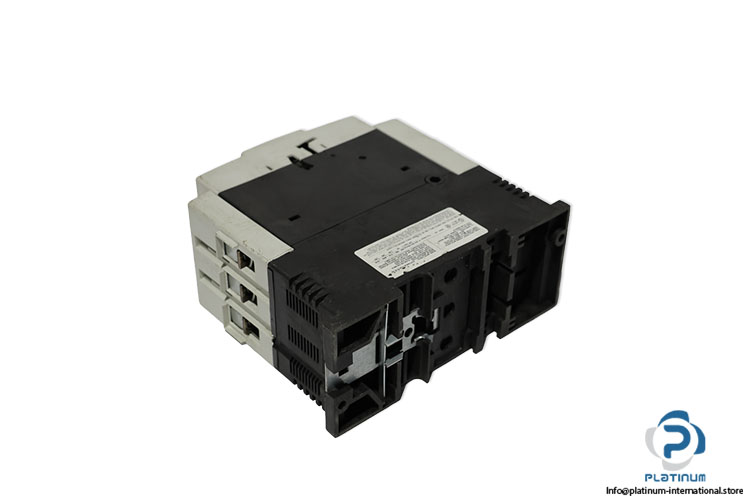

Siemens 3RV1042-4HA10 Circuit Breaker
Used
In stock1 unitReady to ship
Circuit Breaker SIEMENS SIRIUS 3-pole circuit breaker with 690 V AC/DC rated operating voltage, 50 A operational current, and 100 kA breaking capacity at 400 V, designed for industrial electrical protection and switching applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | 3RV1042-4HA10 |
| Family | SIRIUS |
| Breaking Capacity (Icu) | at 400 V / rated value 100 kA |
| Size | S3 |
| Number of Poles | 3 |
| Rated Operating Voltage | 690V AC/DC |
| Service power / at AC-3 / at 400 V / rated value | 22 kw |
| Operational current / at AC-3 / at 400 V / rated value | 50A |
| Active power loss / total / typical | 20W |
| Frequency | 50/60 Hz |
| Standard | IEC/ EN 60947-2, IEC/ EN 60947-4-1 |
| Protection Class | IP20 |
| Trip Class | 10 |
| Operating Temperature | - 50 … +80 °C |
| Type of mounting | screw and snap-on mounting onto 35 mm standard |
| mounting position | any |
| Dimensions | 174 x 165 x 70 mm |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1093671 |
| Weight | 2,18 |
