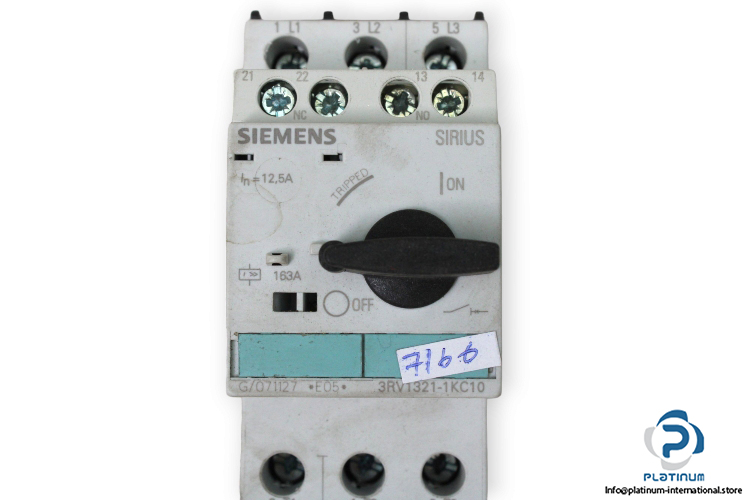

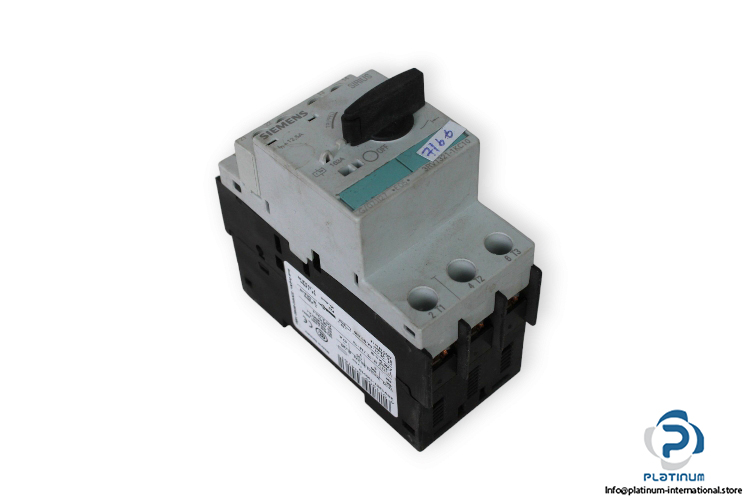

Siemens 3RV1321-1KC10 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker
Brand: SIRIUS
Model: 3RV1321-1KC10

Size of the circuit-breaker: S0
Degree of pollution: 3
Protection class IP: IP20
Insulation voltage / rated value: 690 V
Impulse voltage resistance / rated value: 6,000 V
Active power loss / total / typical: 7 W
Ambient temperature during storage: -50 … +80 °C
Number of poles / for main current circuit: 3
type of voltage: AC/DC
Operating voltage / at AC-3 / rated value / maximum: 690 V
Operating current / at AC-3 / at 400 V / rated value: 12.5 A
Breaking capacity limit short-circuit current (lcu):
• at 400 V / rated value kA 100
• at 500 V / rated value kA 42
• at 690 V / rated value kA 6
Dimensions: 45 X 97 X 96 mm
