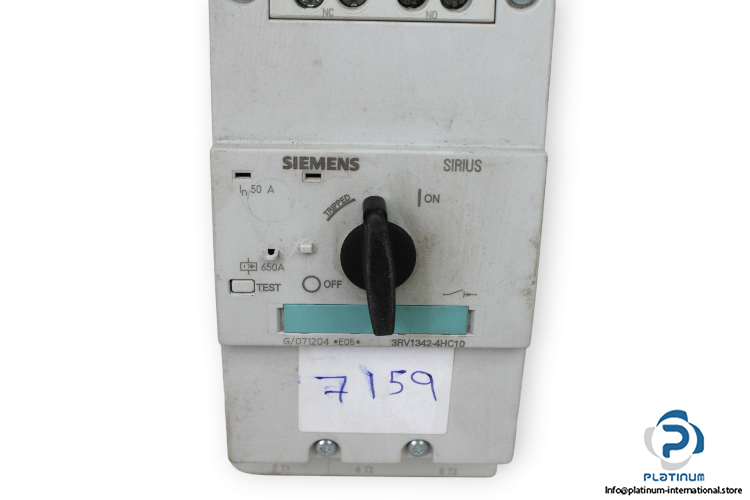

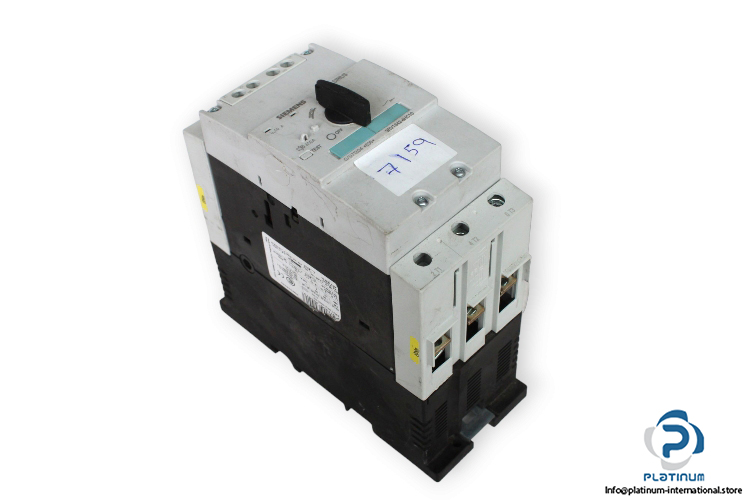

Siemens 3RV1342-4HC10 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker

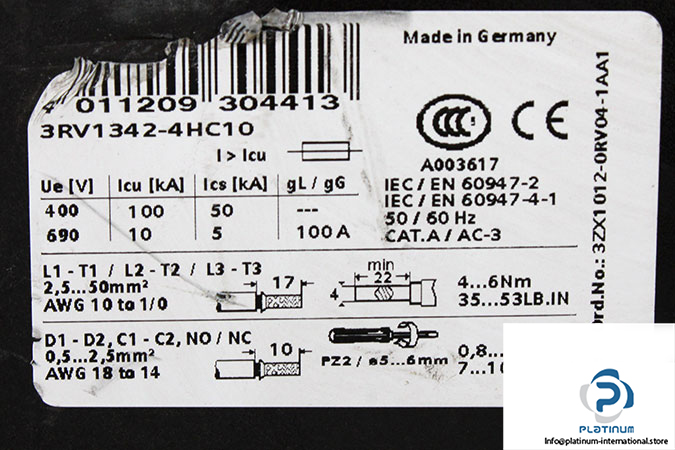

Model: 3RV1342-4HC10

Power loss: 20 W
Surge voltage resistance rated value: 6 000 V
Protection class IP: IP20
Shock resistance: 25g / 11 ms
Continuous current rated value: 50 A
Ambient temperature: -20 … +60 °C
Number of poles for main current circuit: 3
Operating voltage rated value: 690 V
Rated value maximum at AC-3: 690 V
Operating current at AC-3: at 400 V rated value 50 A
Operating power at AC-3: at 400 V rated value 22 kW
Maximum short-circuit current breaking capacity (Icu):
● at AC at 240 V rated value 100 kA
● at AC at 400 V rated value 100 kA
● at AC at 500 V rated value 15 kA
● at AC at 690 V rated value 10 Ka
Dimensions: 165 X 70 X 174 mm
