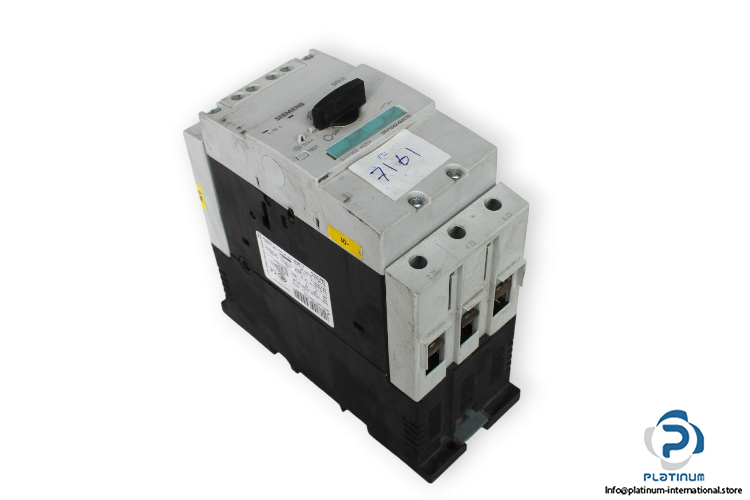

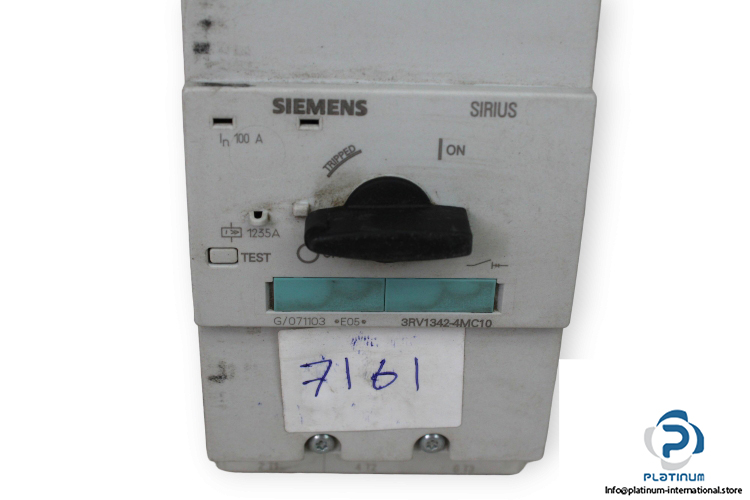

Siemens 3RV1342-4MC10 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker
Brand: SIRIUS
Model: 3RV1342-4MC10

Size: S3
Number of poles / for main current circuit: 3
Protection class IP: IP20
Ambient temperature: -20 … +70 °C
Number of poles for main current circuit: 3
Operating voltage rated value: 690 V
Type of voltage: AC/DC
Service power / at AC-3 / at 400 V / rated value: 45 kW
Operational current / at AC-3 / at 400 V / rated value: 100 A

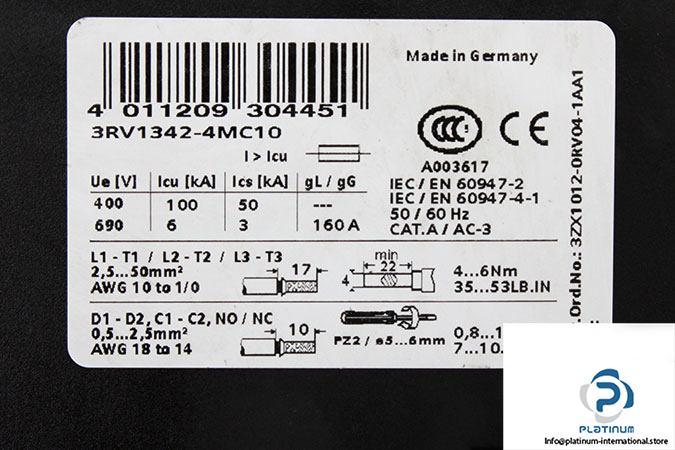

Breaking capacity limit short-circuit current (lcu):
• at 400 V / rated value kA 100
• at 500 V / rated value kA 10
• at 690 V / rated value kA 6
Dimensions: 174 X 165 X 70 mm
