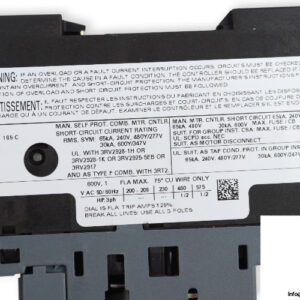

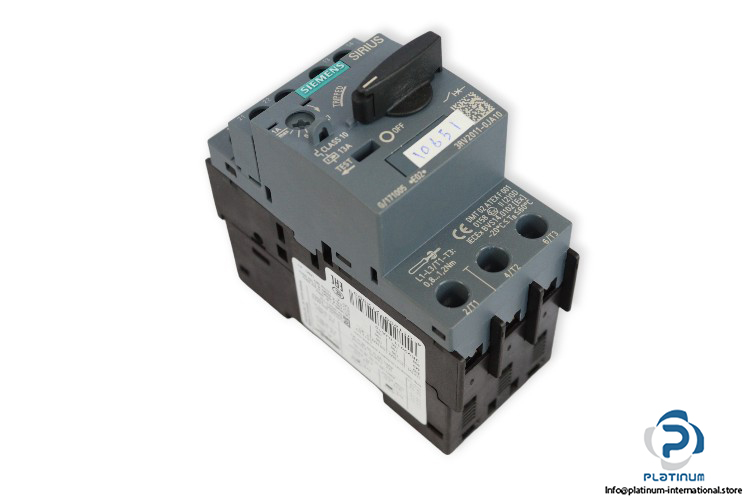

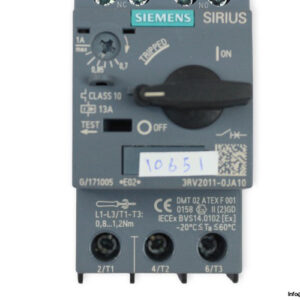

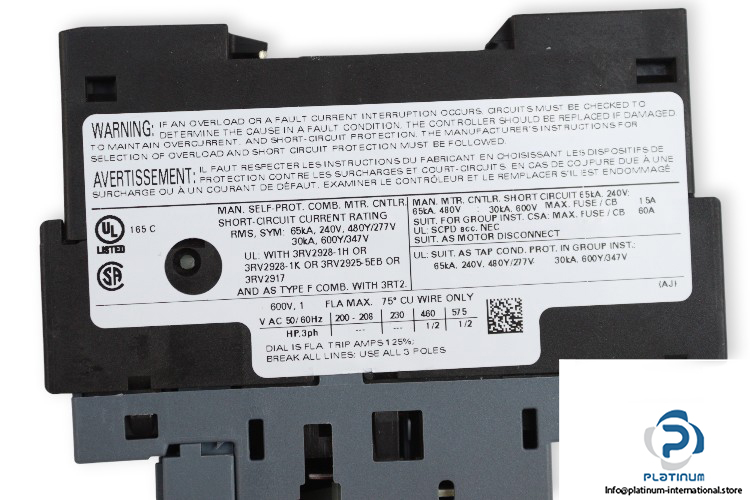

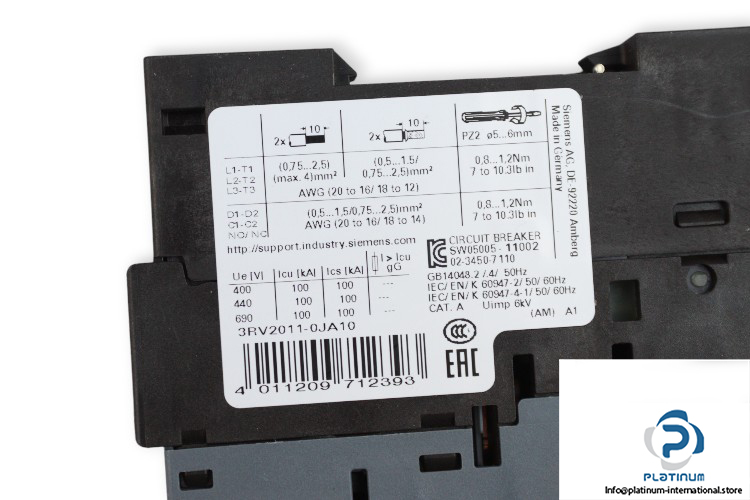

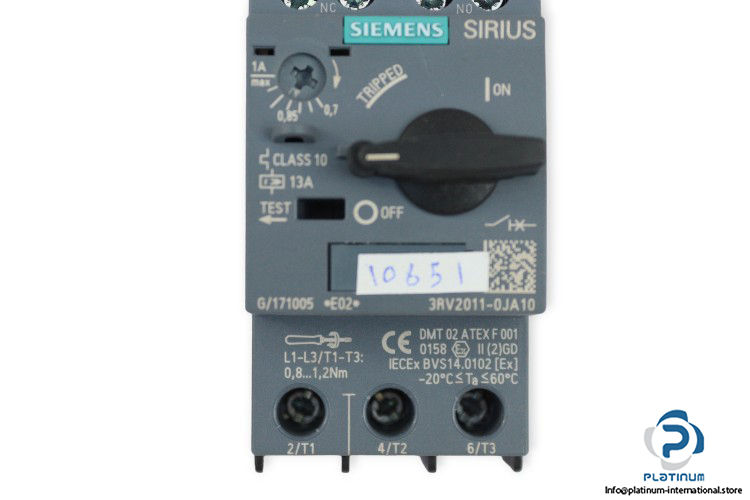

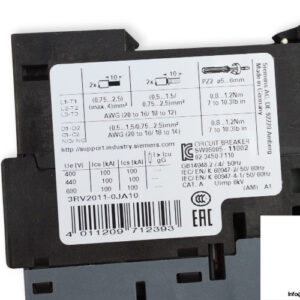

Siemens 3RV2011-0JA10 Circuit Breaker

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3RV2011-0JA10
Product brand name: SIRIUS
Product designation: 3RV2

Size: S00
Adjustable response current: 0.7 … 1 A
Operating Voltage Rated Value: 20 … 690 V
Operational current rated value: 1 A
Rated impulse with stand voltage Uimp: 6 kV
Operating Power: at 230 V rated value 0.2 kW, at 400 V rated value 0.25 kW
Insulation voltage with degree of pollution 3 at AC rated value: 690 V
Operational short-circuit current breaking capacity (Ics) at AC: 400V, 100 kA
Maximum short-circuit current breaking capacity (Icu) at AC:
400V, 100 kA
Frequency: 50/60 Hz
Standard: IEC/EN/K 60947-2, IEC/EN/K 60947-4-1
Operating temperature: -20 … 60°C
Protection class: IP20
No. of poles: 3
Type of electrical connection: screw-type terminals
Dimensions: 97 x 45 x 97 mm
