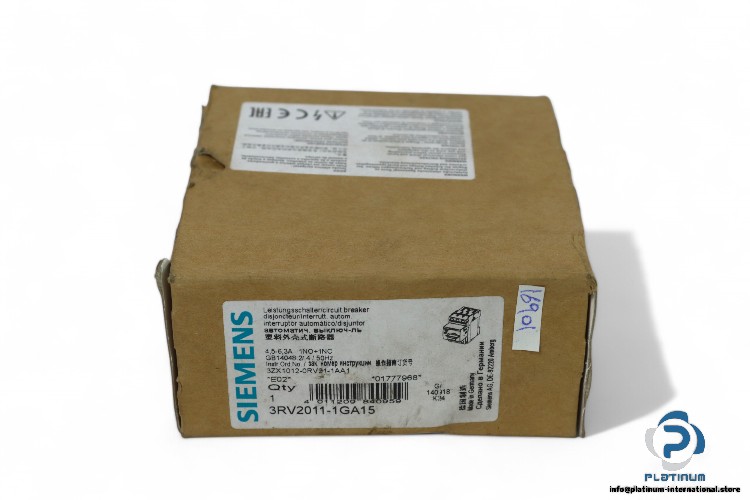

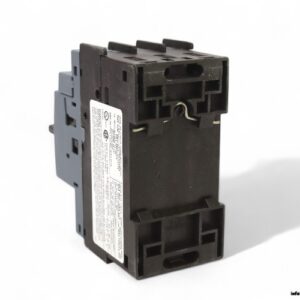

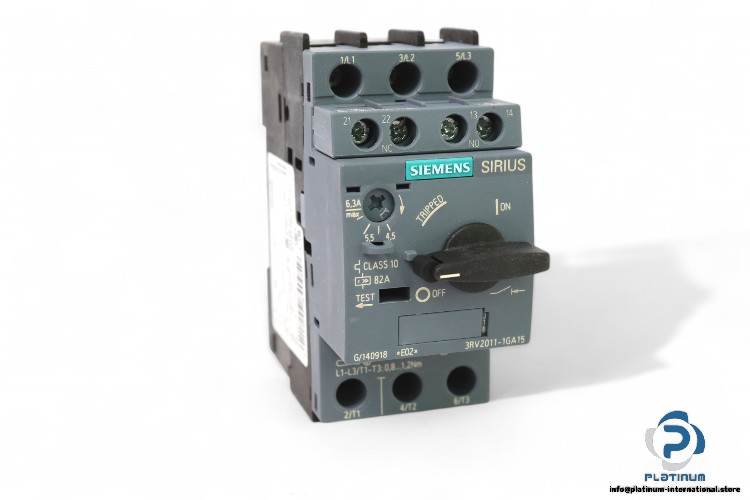

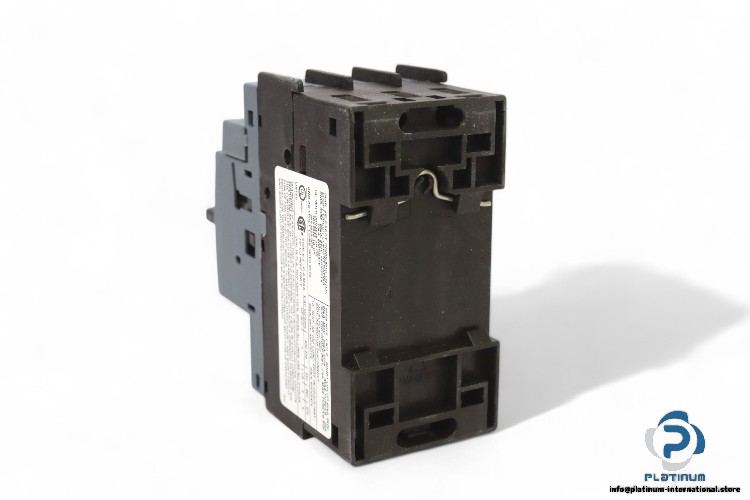

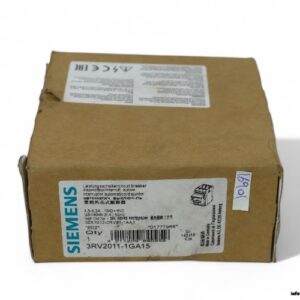

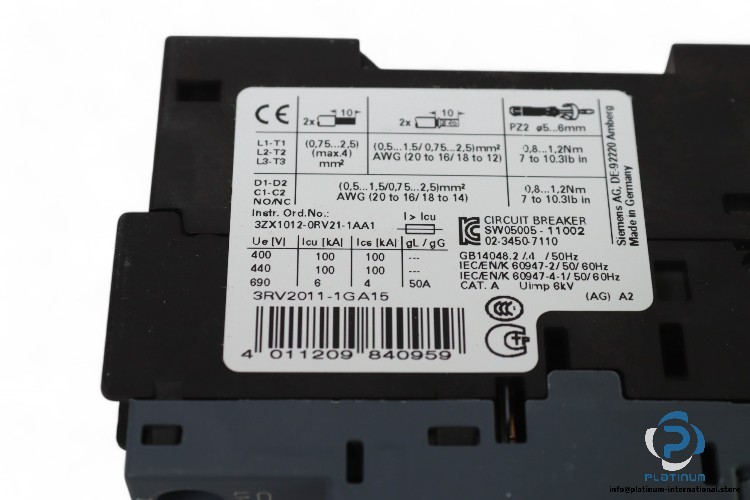

Siemens 3RV2011-1GA15 Circuit Breaker

Manufacturer: Siemens
Type: CIRCUIT BREAKER (THERMAL)
Part No.: 3RV2011-1GA15

Used for: Motor Protection
Size: S00
Brand Name: SIRIUS
Product Type Designation: 3RV2
Rated Operational Voltage (Ue): 20 – 690 V
Rated Current Range: 4.5 – 6.3 A
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V AC
Response Value Current Of Instantaneous Short-Circuit Trip Unit: 82  A
Connection: 1 Normally open NO / 1 Normally close NC
Power loss for rated value of the current at hot operating state: 7.25 W
Rated Operational Power AC-3:
230 V: 1.5 kW
400 V: 2.2 kW
500 V: 3 kW
690 V: 4 kW
Rated Service Breaking Capacity (Ics)@ 240 and 500 – @690: 100-4 kA
Rated Ultimate Breaking Capacity (Icu)@ 240 and 500- @690: 100-6 kA
No. of Poles: 3-Pole
Standard: IEC/EN/K60947-2/50/60Hz _ IEC/EN/K60947-4-1/50/60Hz
Protection Class: IP20
Ambient Temperature: -20 … 60 °C
Dimensions: 97 x 45 x 97 mm
Tightening torque: 0.8 – 1.2 N.m
