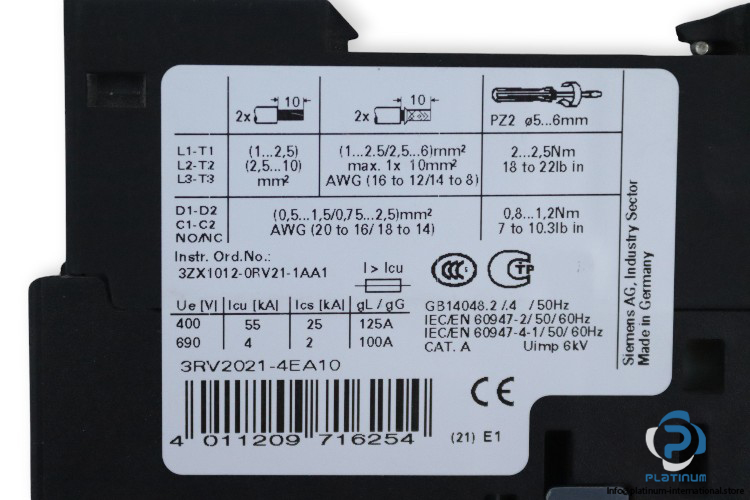

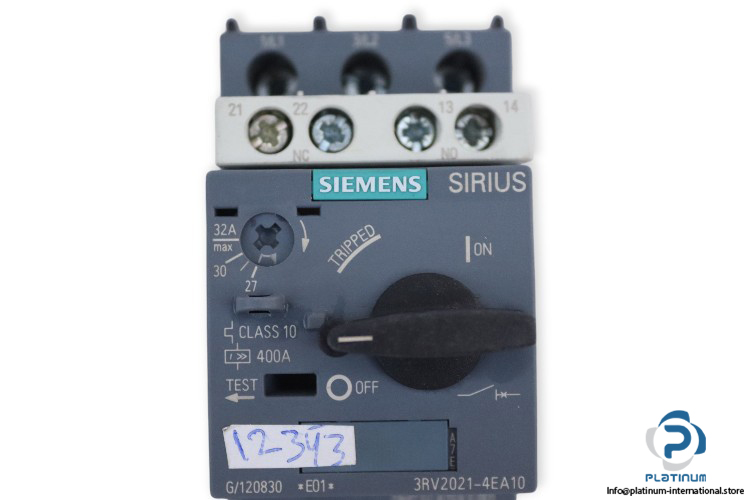

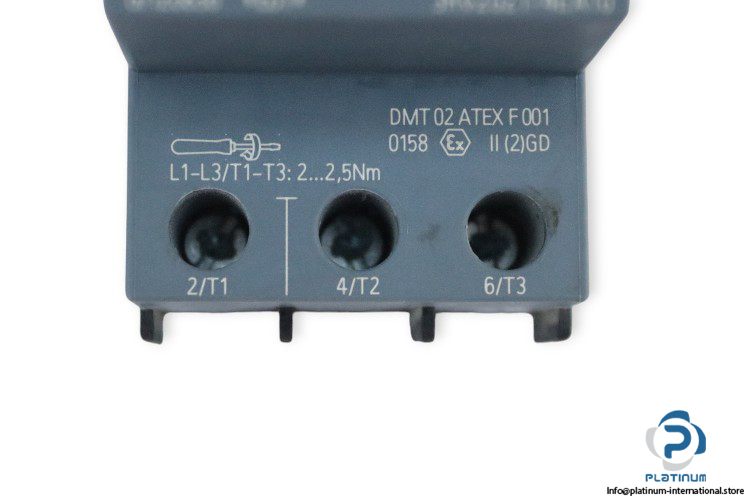

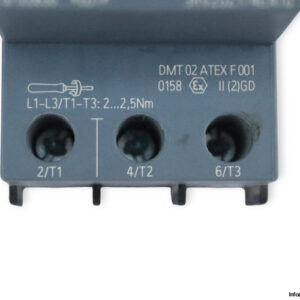

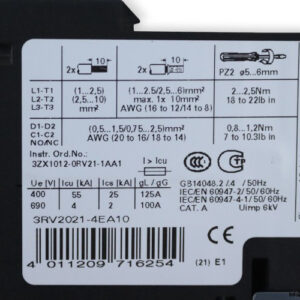

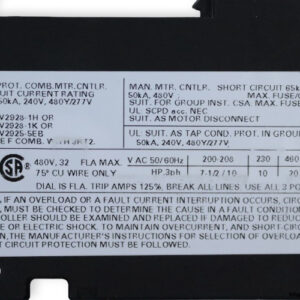

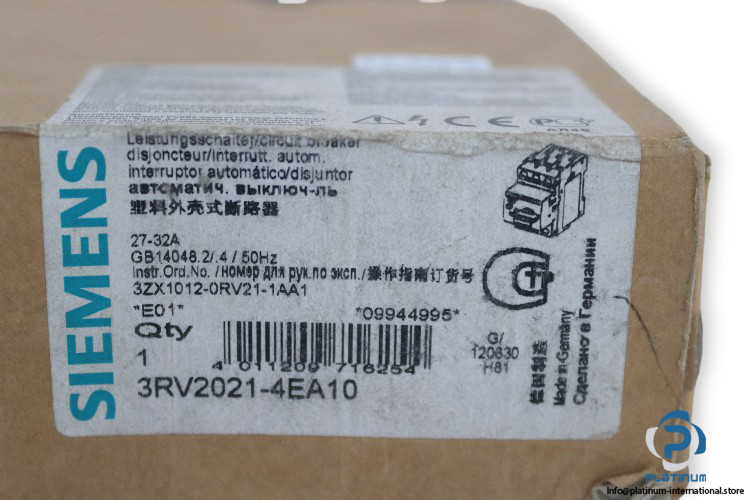

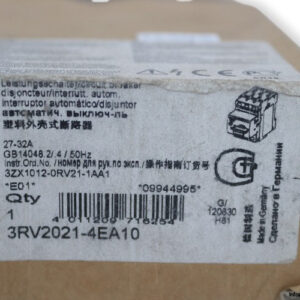

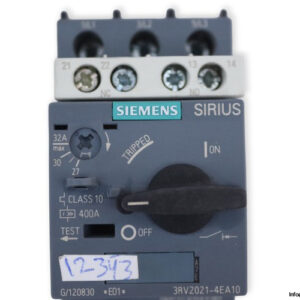

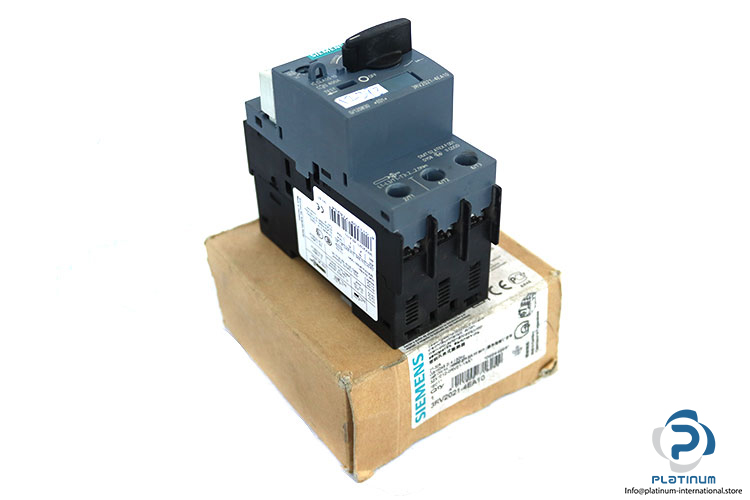

Siemens 3RV2021-4EA10 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3RV20214EA10

Size: S0
Brand Name: SIRIUS
Rated Operational Voltage (Ue): 690 V AC
Rated Operational Current (In): 32 A
Rated Current Range: 27 … 32 A
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V AC
Rated Instantaneous Short-Circuit Current Setting (Ii): 400 A
Rated Operational Power AC-3:
230 V: 7.5 kW
400 V: 15 kW
500 V: 18.5 kW
690 V: 30 kW
Rated Service Short-Circuit Breaking Capacity (Ics):
240 V: 100 kA
400 V: 55 kA
500 V: 10 kA
690 V: 4 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
240 V: 100 kA
400 V: 25 kA
500 V: 5 kA
690 V: 2 kA
Actuator Type: Rotary Handle (ON / OFF)
Power Loss: 13.25 W
No. of Poles: 3-Pole
Protection Class: IP20
Ambient Temperature: -20 … 60 °C
Dimensions: 97 x 45 x 97 mm
