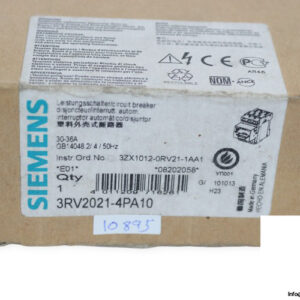

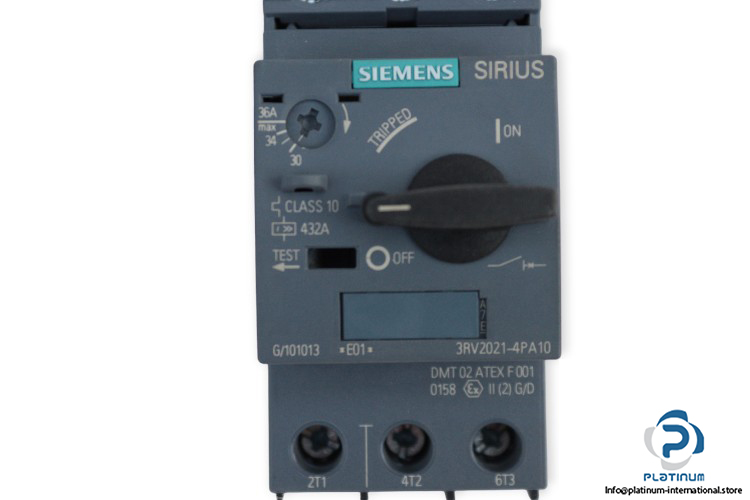

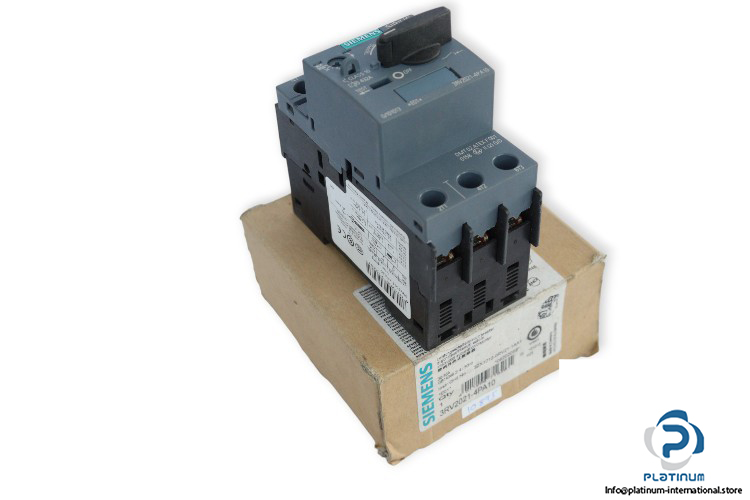

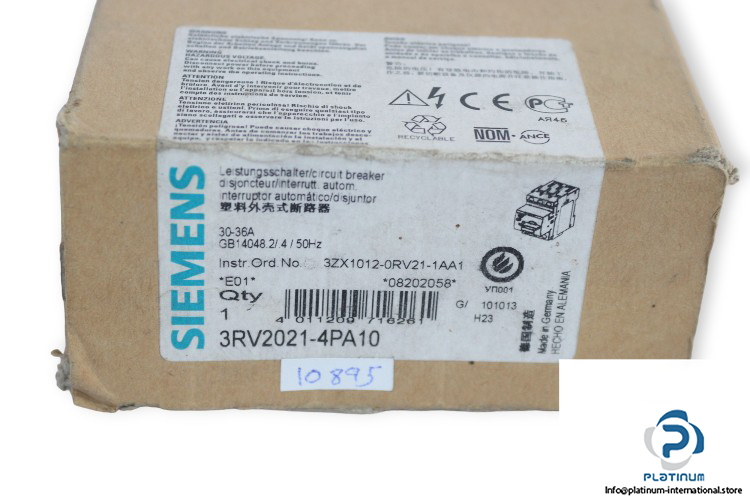

Siemens 3RV2021-4PA10 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3RV20214PA10

Brand Name: SIRIUS
Size: S0
Adjustable Current Range: 30 … 36 A
Rated Insulation Voltage: 690 V AC
Rated Operating Current: 36 A
Frequency: 50 … 60 Hz
Number of Poles: 3-Pole
Service Switching Capacity (Ics):
240 V: 100 kA
400 V: 10 kA
500 V: 3 kA
690 V: 2 kA
Breaking Switching Capacity (Icu):
240 V: 100 kA
400 V: 20 kA
500 V: 6 kA
690 V: 3 kA
Protection Class: IP20
Ambient Temperature: -20 … 40 °C
Dimensions: 174.5 x 104.5 x 106.5 mm
