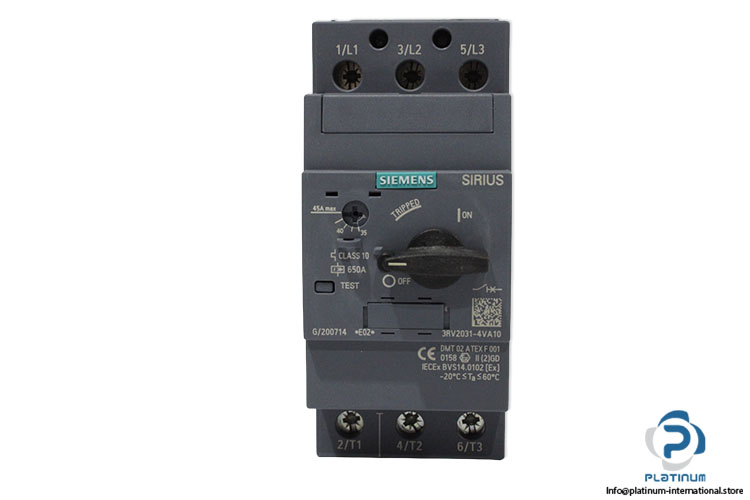

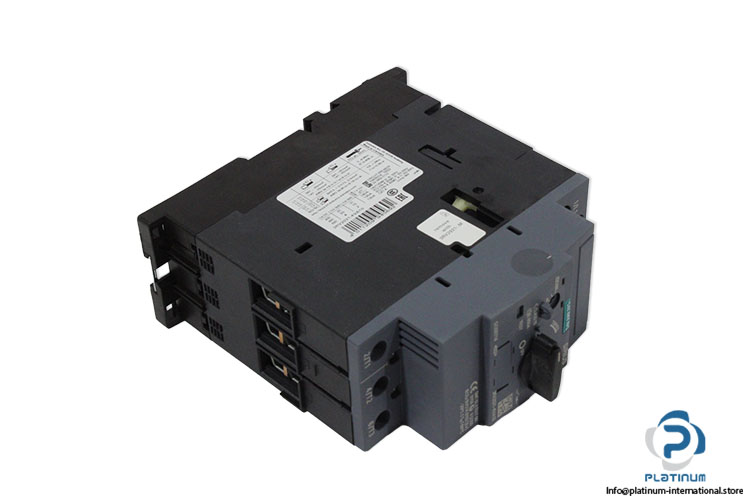

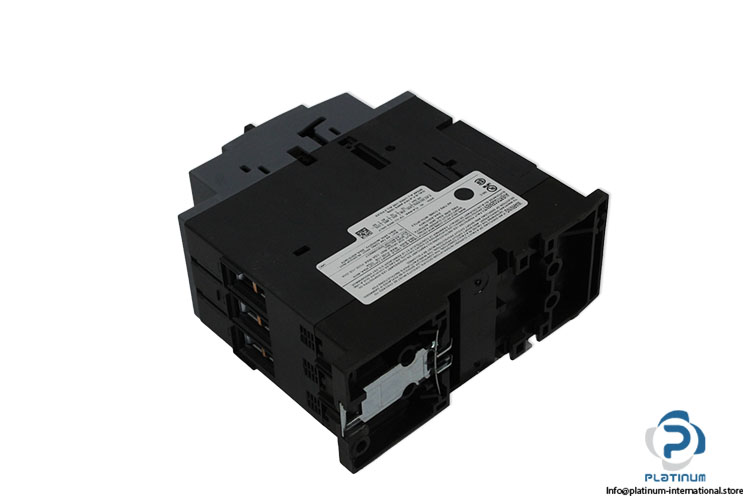

Siemens 3RV2031-4VA10 Circuit Breaker
New
In stock1 unitReady to ship
Siemens SIRIUS 3RV2031-4VA10 Circuit Breaker 3-pole S2 circuit breaker rated at 45 A and 20–690 V, featuring Trip Class 10 thermal overload release, IP20 protection, and 65 kA maximum breaking capacity at 400 V. Designed for reliable industrial motor and circuit protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Manufacture | Siemens |
| MNR | 3RV2031-4VA10 |
| Product brand name | SIRIUS |
| Product designation | 3RV2 |
| Size | S2 |
| Operating Voltage Rated Value | 20 … 690 V |
| Operational current rated value | 45 A |
| insulation voltage | 690V |
| Power loss | 24,5 W |
| Operating Power | (at AC-3/AC-3e, 400V: 22 kW) |
| Trip Class | 10 |
| Design Of The Overload Release | Thermal |
| No. of poles | 3 |
| Operational short-circuit current breaking capacity (Ics) at AC | 400V, 30 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC | 400V, 65 kA |
| Frequency | 50/60 Hz |
| Tightening Torque | 3 to 4,5 N.m |
| Standard | IEC/EN/K 60947-2, IEC/EN/K 60947-4-1 |
| Operating temperature | -20 … 60°C |
| Protection class | IP20 |
| Type of electrical connection | screw-type terminals |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| Dimensions | 140 x 55 x149 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093505 |
| Weight | 1,06 |
