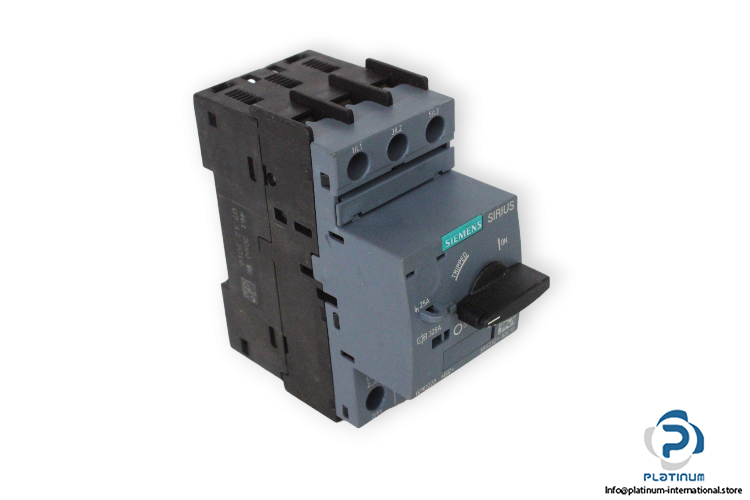

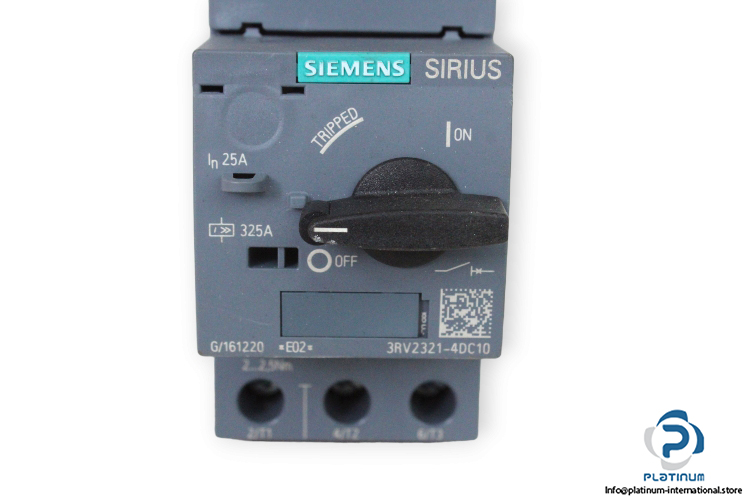

Siemens 3RV2321-4DC10 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit breaker
brand: SIRIUS
Model: 3RV2321-4DC10

Size Of The Circuit-Breaker: S0
Power Loss [W] For Rated Value Of The Current:
At AC In Hot Operating State 10.5 W
At AC In Hot Operating State Per Pole 3.5 W
Insulation Voltage With Degree Of Pollution 3 At AC Rated Value : 690 V
Surge Voltage Resistance Rated Value: 6 Kv
Working Temperature: -20 To +60 °C
Number Of Poles For Main Current Circuit: 3
Operating Voltage:
Rated Value 20 … 690 V
At AC-3 Rated Value Maximum 690 V
At AC-3e Rated Value Maximum 690 V
Operating Frequency Rated Value: 50 … 60 Hz
Operational Current Rated Value: 25 A
Operational Current:
At AC-3 At 400 V Rated Value: 25 A
At AC-3e At 400 V Rated Value: 25 A
Dimensions: 97 X 45 X 97 Mm
