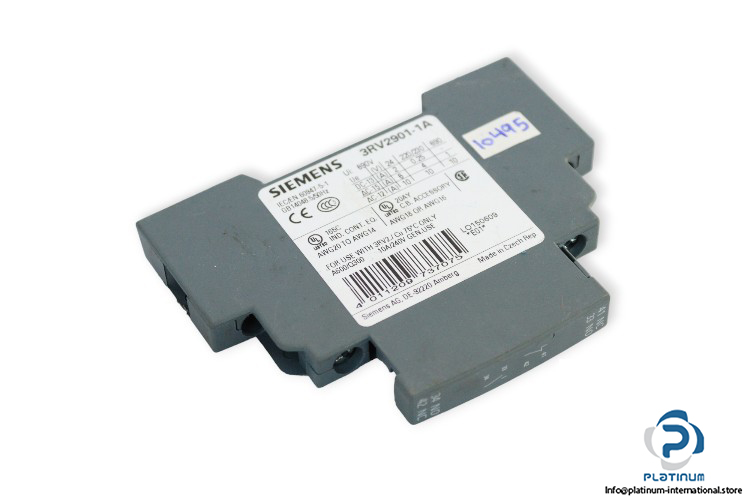

Siemens 3RV2901-1A Lateral Auxiliary Switch

Manufacturer: Siemens
Type: Lateral Auxiliary Switch
MNR: 3RV2901-1A
Product Brand Name: SIRIUS

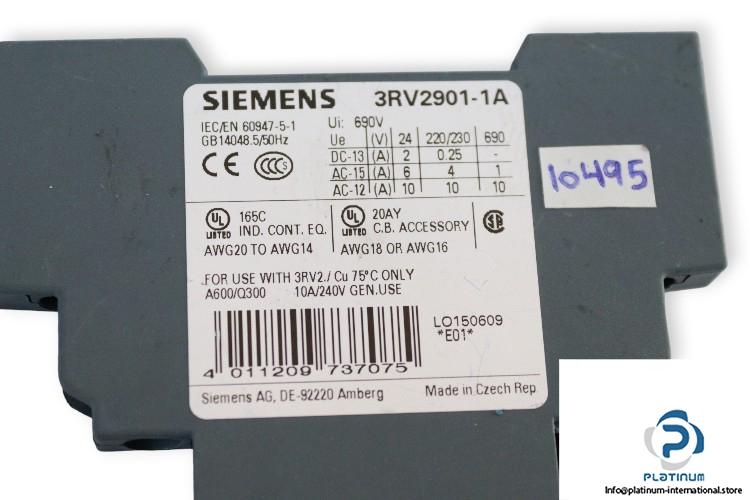

Insulation voltage Ui: 690 V
Switching rate:
DC-13:
24 V DC: 2 A
220/230 V DC: 0.25 A
AC-15:
24 V AC: 6 A
220/230 V AC: 4 A
690 V AC: 1 A
AC-12:
24 V AC: 10 A
220/230 V AC: 10 A
690 V AC: 10 A

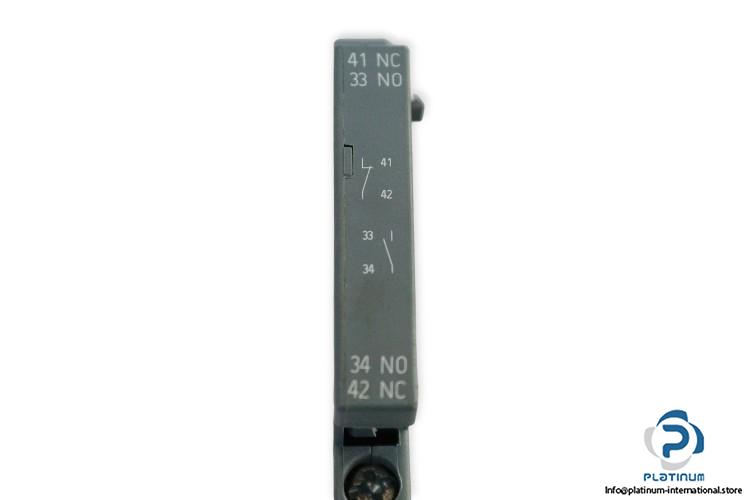

Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
Protection class: IP20
Mounting type: plug-in fixing
Ambient operation temperature: -20 … +60°C
Type of electrical connection: screw-type terminals
Dimensions: 9.5 x 90 x 70 mm
