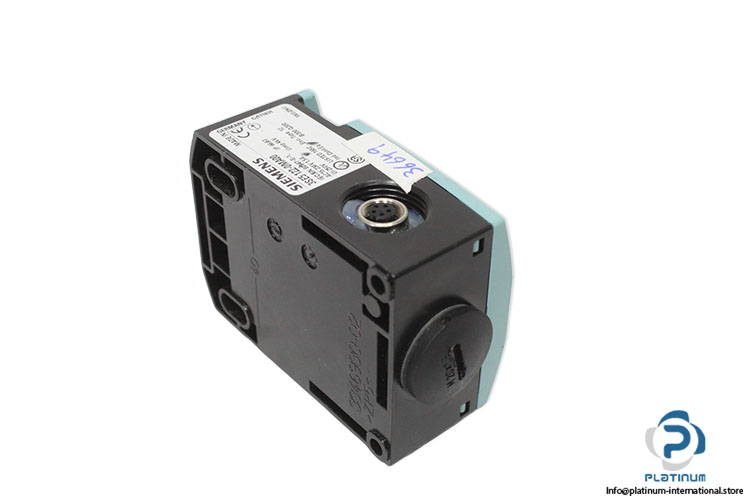

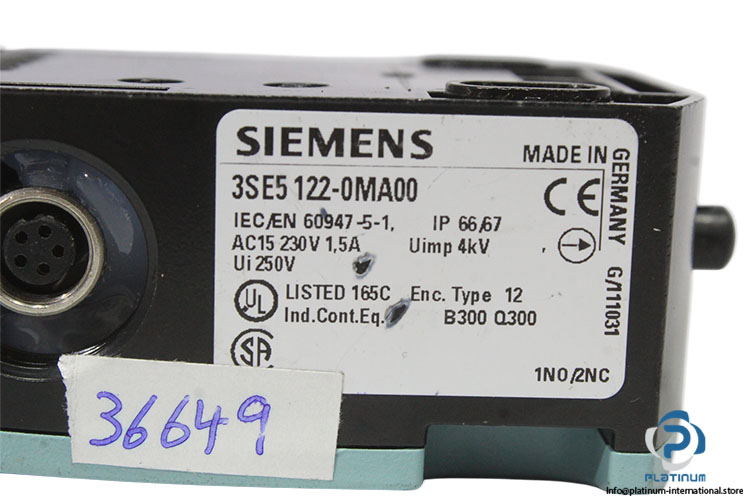

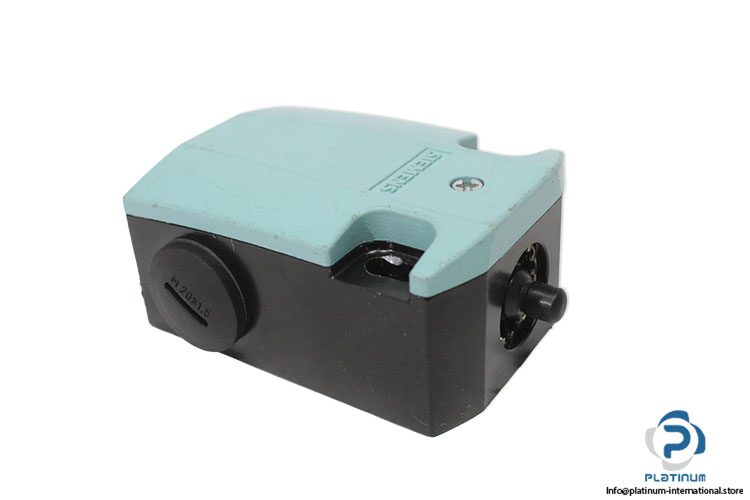

Siemens 3SE5 122-0MA00 Safety Switch
Used
In stock1 unitReady to ship
Mechanical Position / Safety Switch SIEMENS 3SE5122-0MA00 mechanical position and safety switch featuring 1NO/2NC contacts, plunger actuation, IP66/IP67 protection, positive opening operation, and a durable metal housing for industrial safety applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | 3SE5122-0MA00 |
| Insulation Voltage Rated Value | 250 V |
| Degree Of Pollution Class | 3 |
| Contacts | 1NO/2NC |
| Type of Actuation | Plunger |
| Surge Voltage Resistance Rated Value | 4 Kv |
| Protection Class IP | IP66/IP67 |
| Shock Resistance ? According To | IEC 60068-2-27 30g / 11 Ms |
| Electrical Endurance (Operating Cycles) At AC-15 At 230 V Typical 100 000 Thermal Current | 10 A |
| Reference Code According To | IEC 81346-2 B |
| Ambient Temperature During Operation | -25 ... +85 °C |
| Design Of The Housing | Block, Wide |
| Material Of The Enclosure | Metal |
| Coating Of The Enclosure | Cathodic Dip Coating |
| Design Of The Housing According To Standard | No |
| Design Of The Actuating Element | Other, Without, Basic Switch Design Of The Switching Function: Positive Opening With Appropriate Positive Opening Actuator Head |
| Circuit Principle | Slow-Action Contacts |
| Number Of Switching Contacts Safety-Related | 2 |
| Cable Entry Type | 3x (M20 X 1.5) |
| Condition | Used |
| SKU | 1099362 |
| Weight | 0,37 |
