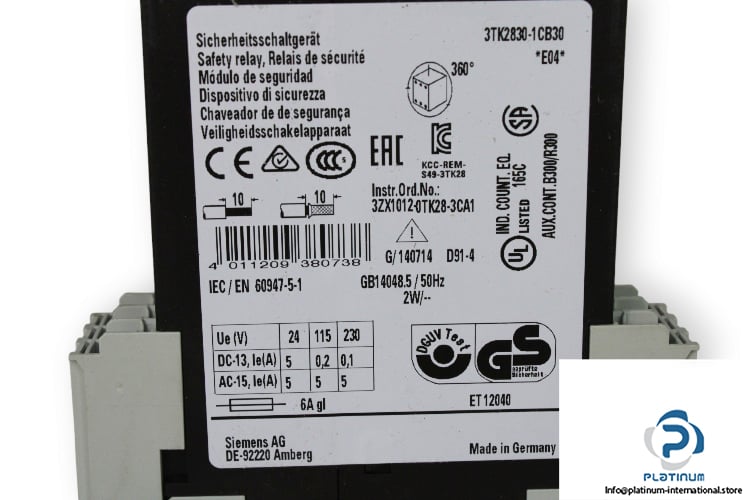

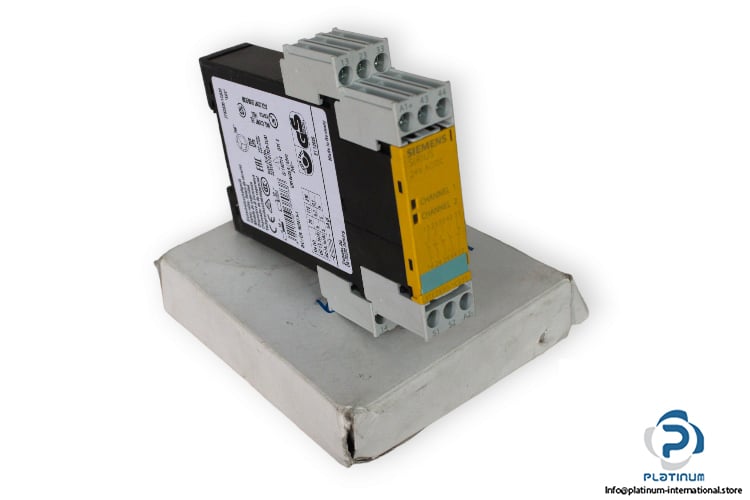

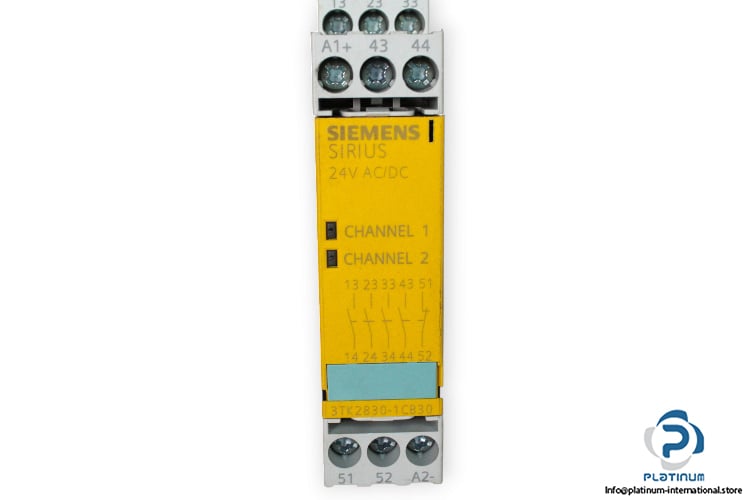

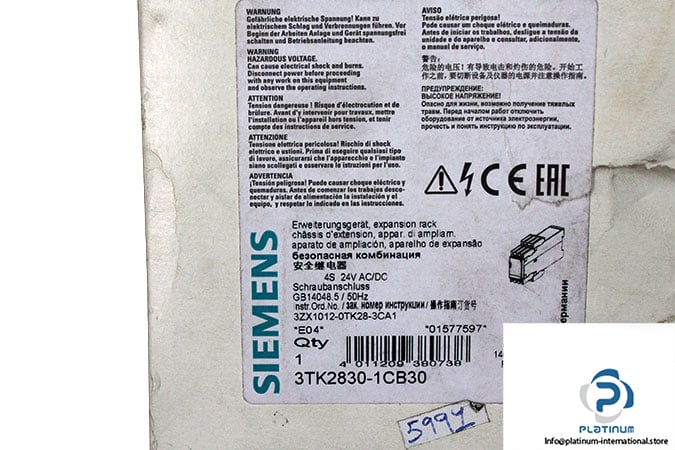

Siemens 3TK2830-1CB30 Safety Relay
Manufacturer: SIEMENS
Type: Safety Relay
Model: 3TK28301CB30
Brand Name: SIRIUS
Supply Voltage: 24 V AC / DC
Frequency: 50 … 60 Hz
Channels No.: 2 Channels
Contact: 4 Normally Open (NO)
Expansion Unit: 1 Normally Closed (NC)
Switching Capacity:
24 VDC, 115 VAC, 230 VAC: 5 A
115 VDC: 0.2 A
230 VDC: 0.1 A
Protection Class: IP40
Operation Temperature: -25 … 60 °C
Dimensions: 22.5 x 120 x 120 mm
