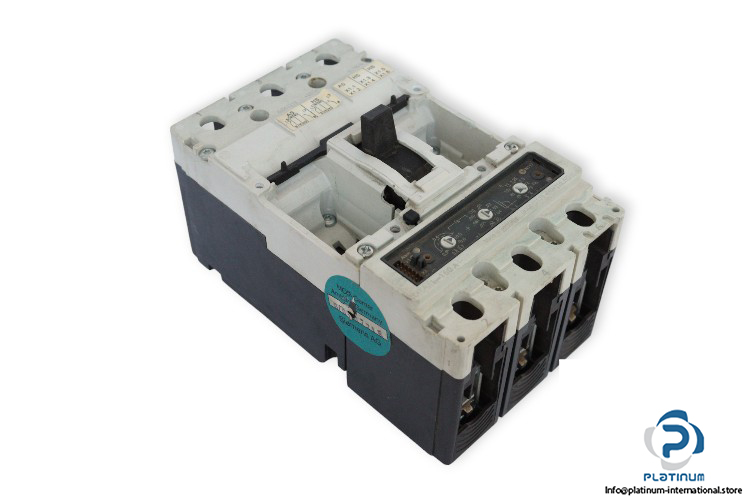

Siemens 3V2716-1AA33-0AA0 Circuit Breaker
Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3V27161AA330AA0
Rated Voltage: 415 V AC
Rated Current: 160 A
Rated Insulation Voltage: 800 V
Frequency: 50 … 60 Hz
Rated Service Short-Circuit Breaking Capacity (Ics):
240 V: 65 kA
415 V: 55 kA
500 V: 20 kA
690 V: 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
240 V: 65 kA
415 V: 55 kA
440 V: 25 kA
480 V: 25 kA
500 V: 25 kA
600 V: 12 kA
690 V: 12 kA
Number of Poles: 3-Pole
Protection Class: IP20
Ambient Temperature: -25 … 70 °C
Dimensions: 174.5 x 104.5 x 106.5 mm
