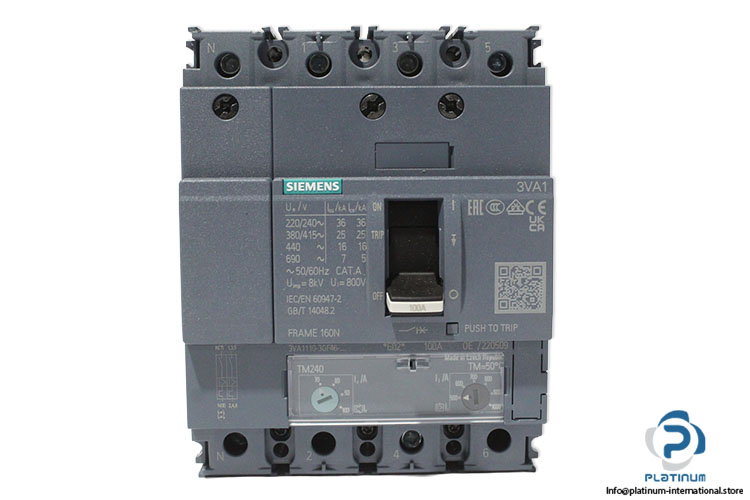

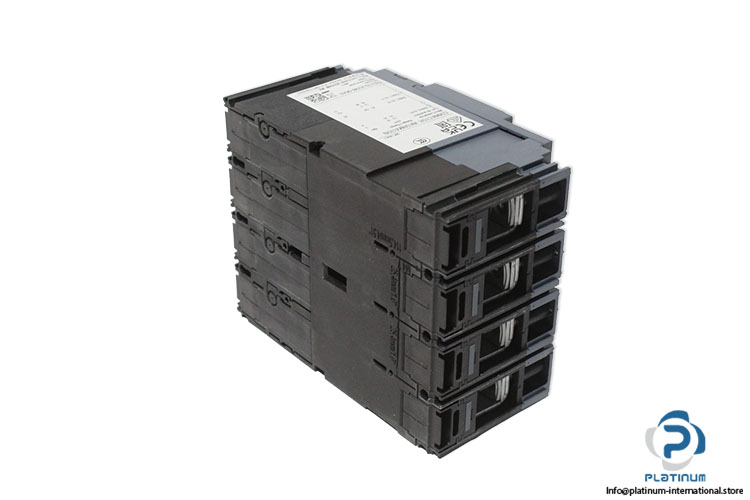

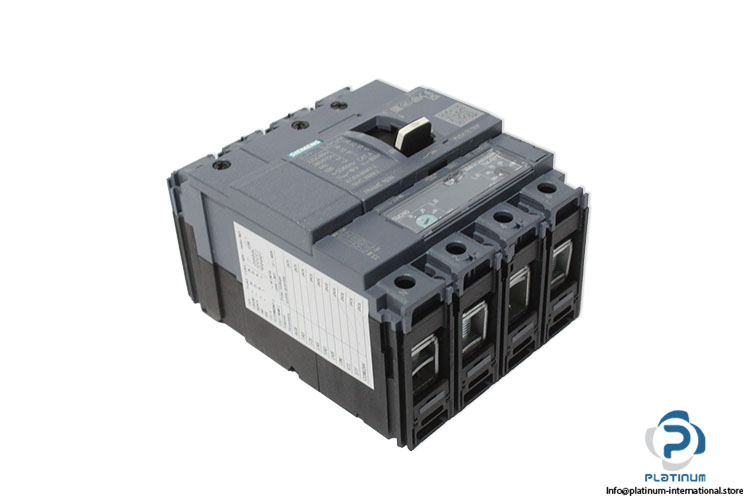

Siemens 3VA1110-3GF46-0AA0 Molded Case Circuit Breaker
New
In stock1 unitReady to ship
Molded Case Circuit Breaker The Siemens 3VA1110-3GF46-0AA0 SENTRON molded case circuit breaker is a 100 A, four-pole MCCB designed for industrial line protection. It supports up to 690 VAC and 600 VDC operation, features a FRAME 160N design, front terminals, and high breaking capacity for reliable electrical protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | 3VA1110-3GF46-0AA0 |
| Product Brand Name | SENTRON |
| Insulation Voltage | 800 V |
| Operating Voltage | 600VDC/ 690VAC |
| Power Loss | max. 25W |
| Current | 100A |
| Number Of Poles | 4 |
| Frequency | 50/60 Hz |
| Rated Breaking Capacity (Icu) | (36kA / 220-240V AC), (25 kA / 380-415V AC) / (16 kA / 440V AC), (7 kA/ 690V AC) |
| Utilization Category | CAT.A |
| Frame | FRAME 160N |
| Field of Application | Line Protection |
| Arrangement Of Electrical Connectors | Front Terminal |
| Type Of Electrical Connection | Box Terminal On Both Sides |
| Number Of CO Contacts | 0 |
| Height | 130 mm |
| Width | 101.6 mm |
| Depth | 70 mm |
| Ambient Temperature | -25 to 70 °C |
| Standard | IEC/EN 60947-2, GB/T 14048.2 |
| Protection Degree | IP40 |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093339 |
| Weight | 1,33 |
