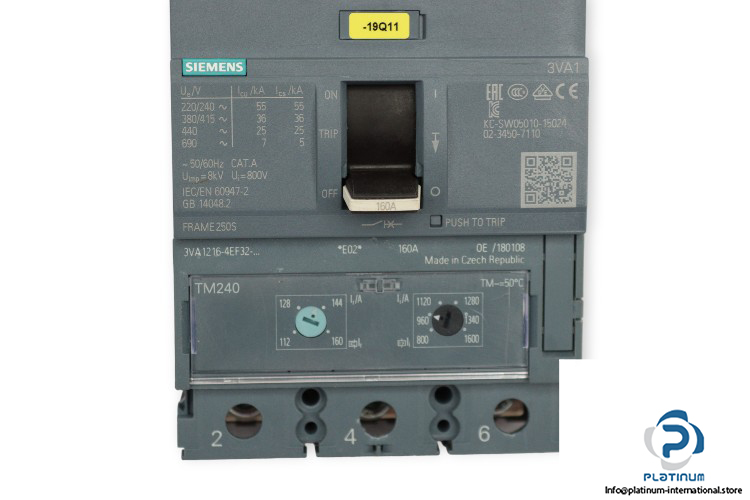

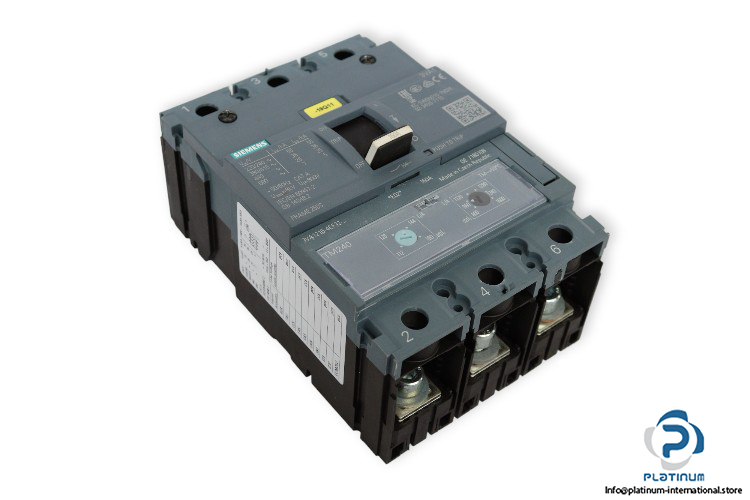

Siemens 3VA1216-4EF32-0AA0 Circuit Breaker

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3VA1216-4EF32-0AA0
Product Brand Name: SENTRON

Design of The Product: Line protection
No. of poles: 3
Insulation Voltage / Rated Value: 800 V
Rated impulse with stand voltage Uimp: 8 kV
Frequency: 50/60 Hz
Operating Voltage: 500 V DC,690 V AC
power loss max: 33 W

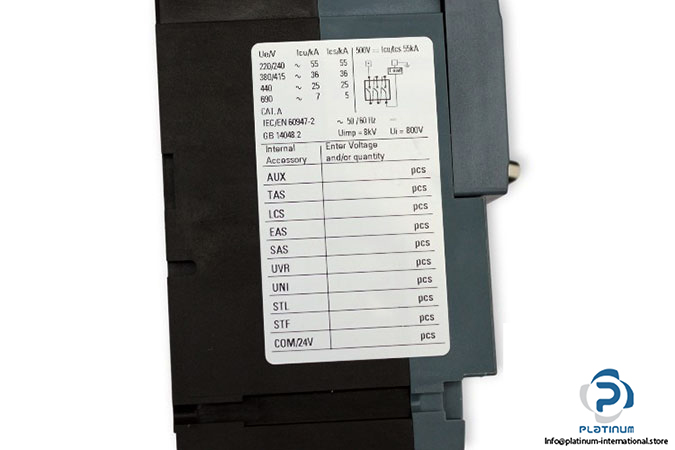

Maximum Short-Circuit Current Breaking Capacity (Icu):
● at 220/240 V 55 kA
● at 380/415 V 36 kA
● at 440 V 25 kA
● at 690 V 7 kA
Operating Short-Circuit Current Breaking Capacity (Ics):
● at 220/240 V 55 kA
● at 380/415 V 36 kA
● at 440 V 25 kA
● at 690 V 5 kA
Protection Class: IP40

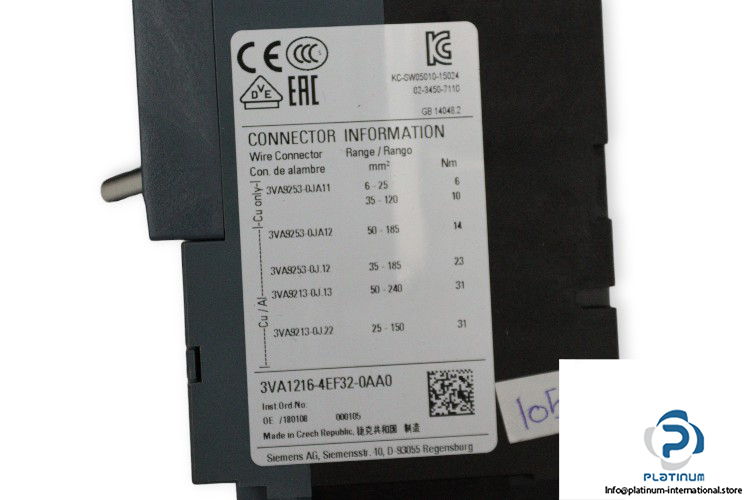

Type Of Electrical Connectors: nut keeper kit on both ends
Ambient Operation Temperature: -25 … 70°C
Dimensions: 158 x 105 x 70 mm
