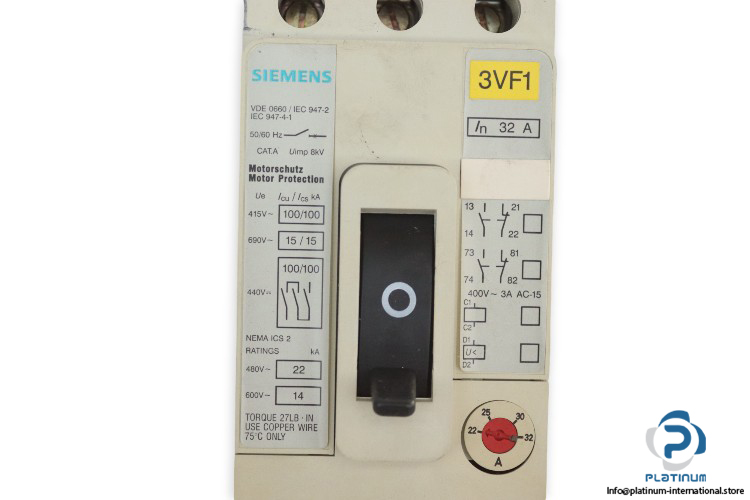

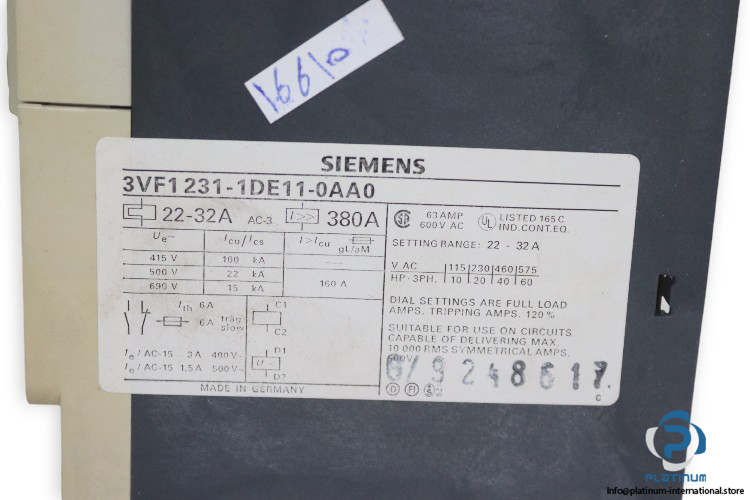

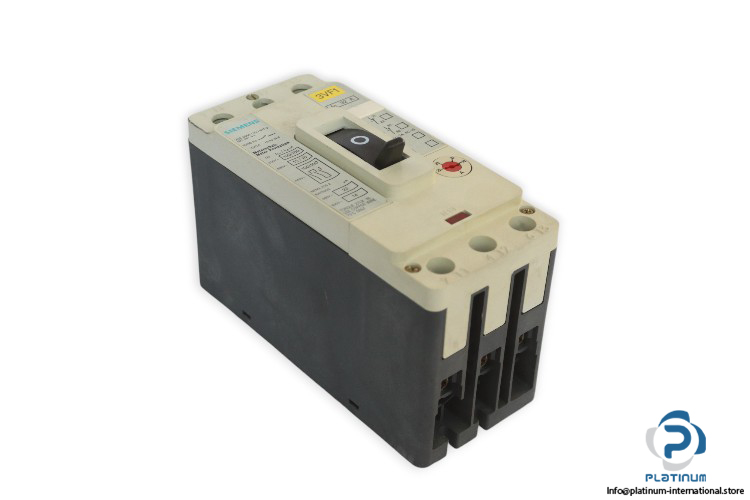

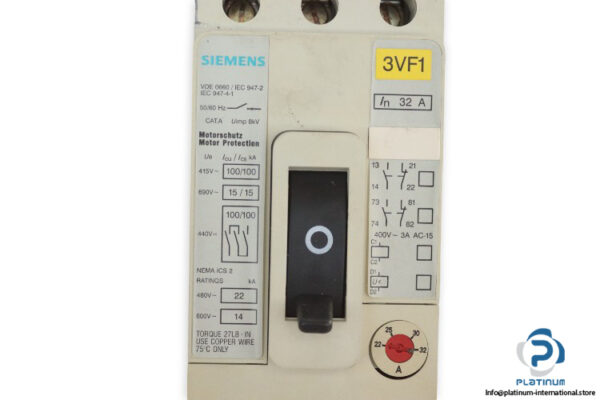

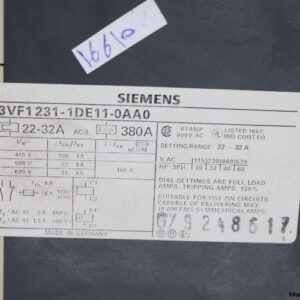

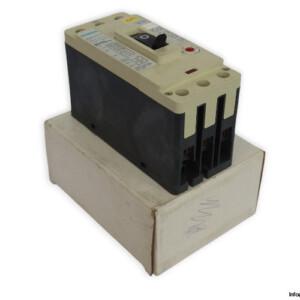

Siemens 3VF1231-1DE11-0AA0 Circuit Breaker

Manufacturer: Siemens
Type: CIRCUIT BREAKER
Part No.: 3VF1231-1DE11-0AA0

Number of Poles: 3
Short-Circuit release: 380 A
Range Adjustable Current: 22-32 A
Rated Operating Voltage: 690 V AC
Horse Power 3-Phase:
115 V – 10 HP
230 V – 20 HP
460 V – 40 HP
575 V – 60 HP
Impulse voltage resistance / rated value: 8 kV
Ultimate Breaking Capacity (I_cu):
100 kA – 415 V
15 kA- 690 V
Service Breaking Capacity (I_cs):
100 kA – 415 V
15 kA- 690 V
Service Frequency: 50/60 Hz
Standard: IEC 947-4-1 , IEC 947-2 , VDE 0660
