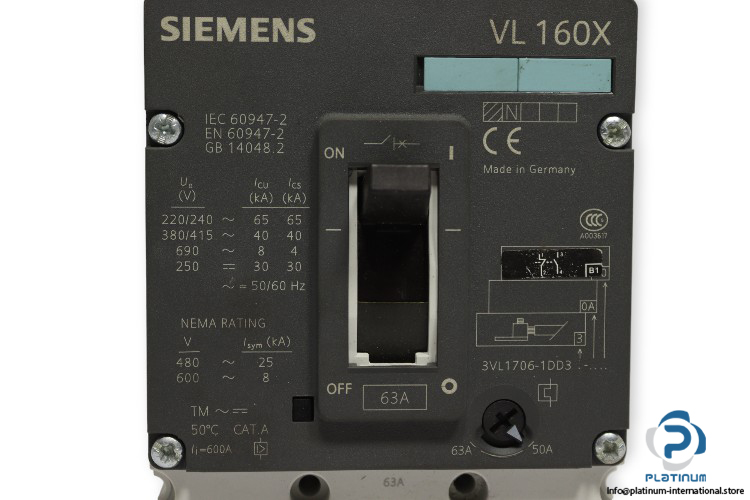

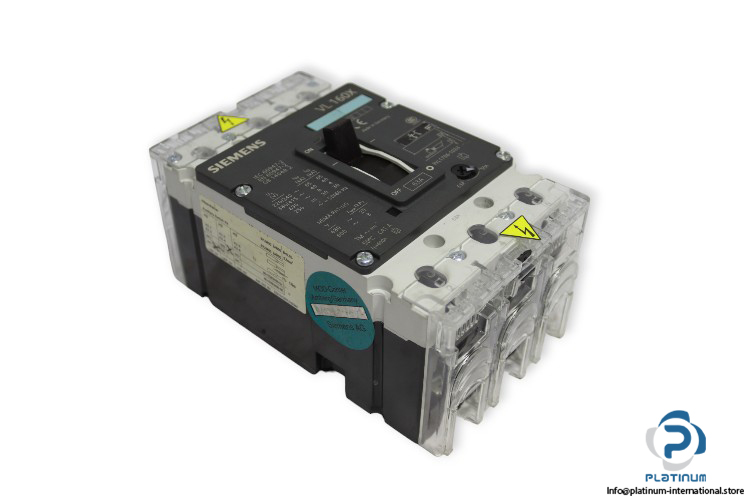

Siemens 3VL1706-1DD33-0AA0 Circuit Breaker

Manufacturer: Siemens
Type: Circuit Breaker
Series: 3VL
Designation: VL160X
MNR: 3VL17061DD330AA0

Size: 3VL1
Number of Poles: 3
Rated Current (Ir): 50 … 63 A
line protection Current (In): 63 A
Rated Surge Voltage Resistance (Vimp): 8 kV
Rated operational voltage (Ue): max. 690 V
Rated Insulation Voltage (Ui): 800 V
Operational short-circuit current breaking capacity (Ics):
65 kA/240 V AC
40 kA/415 V AC
4 kA/690 V AC
30 kA/250 V DC
Maximum short-circuit current breaking capacity (Icu):
65 kA/240 V AC
40 kA/415 V AC
8 kA/690 V AC
30 kA/250 V DC
Standards: IEC 60947-2 / EN 60947-2 / GB 14048.2
Mounting: fixed mounting
Overcurrent Release: Thermal-Magnetic TM
Operating Frequency: 50/60 Hz
Protection Class: IP20
Dimensions (H x W x D): 157.5 X 104.5 X 106.5 mm
Operation Ambient Temperature: 0 … 70 °C
Accessories:
SIEMENS 3VL9400-2AH00 ROTARY OPERATOR
Manufacturer: Siemens
Type: Rotary Operator
MNR: 3VL9400-2AH00
Accessories For: VL160X, VL160, VL250, VL400
