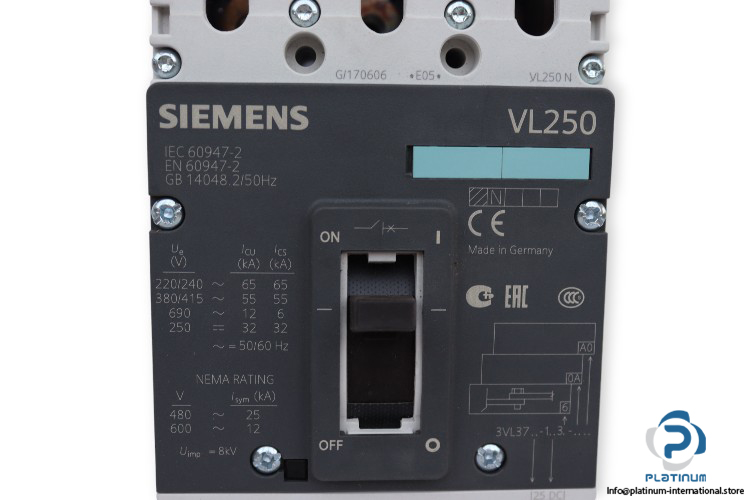

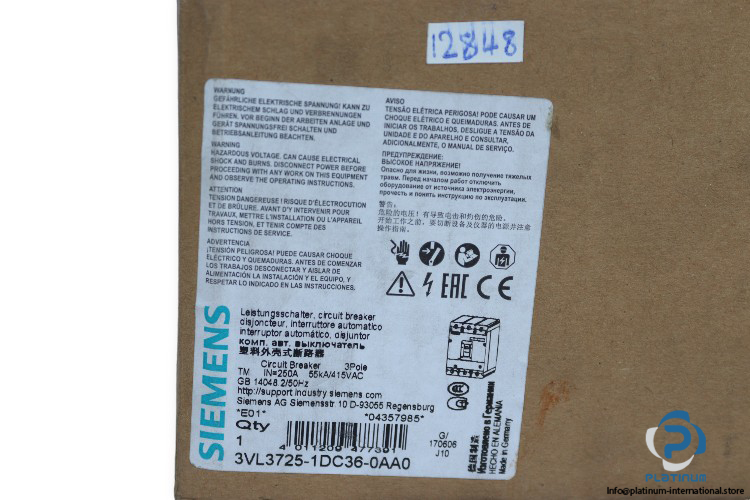

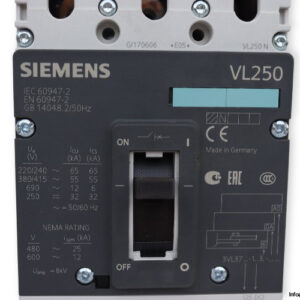

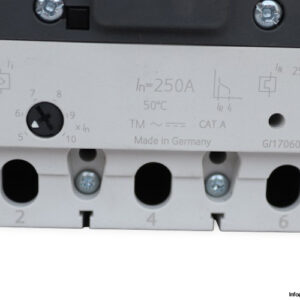

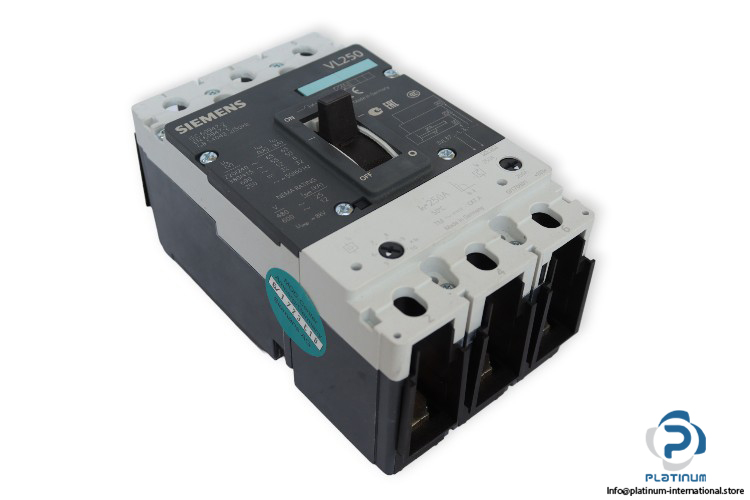

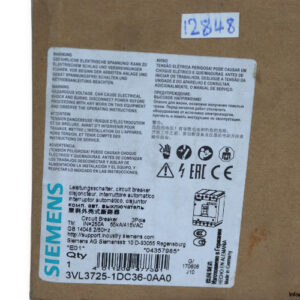

Siemens 3VL3725-1DC36-0AA0 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3VL37251DC360AA0

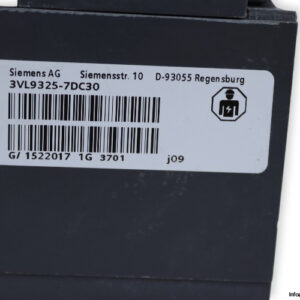

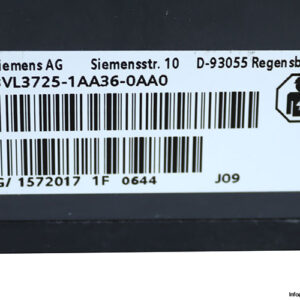

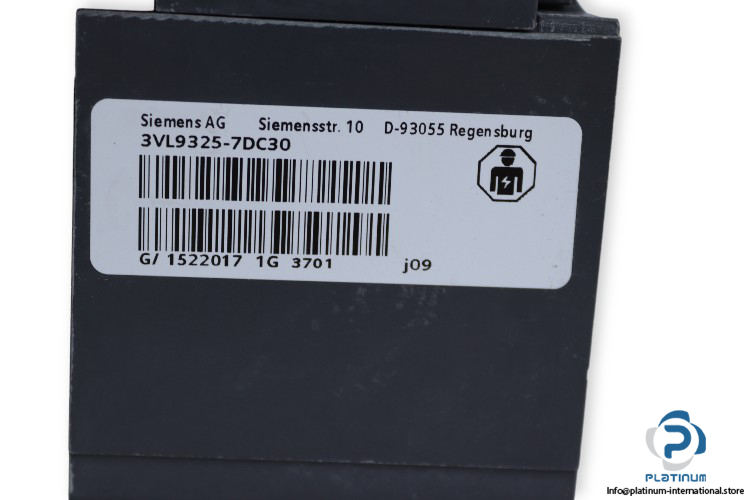

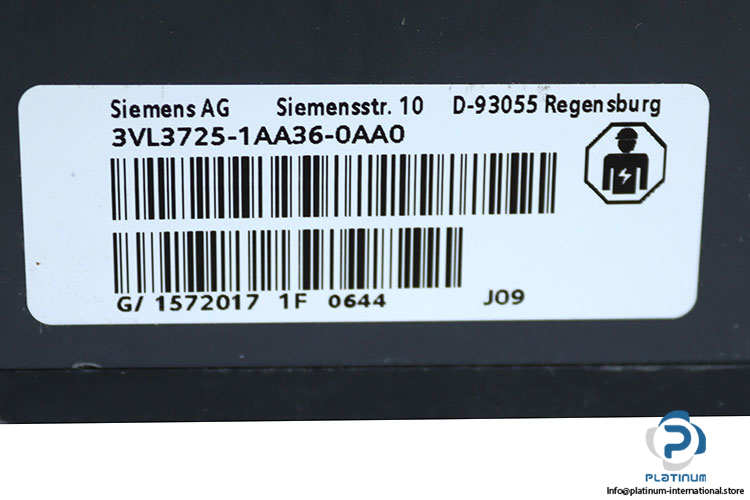

Alternative Model: 3VL93257DC30 / 3VL37251AA360AA0

Size: 3VL3
Range: VL250
Suitability for: Motor Protection
Rated Operational Voltage: 690 V AC

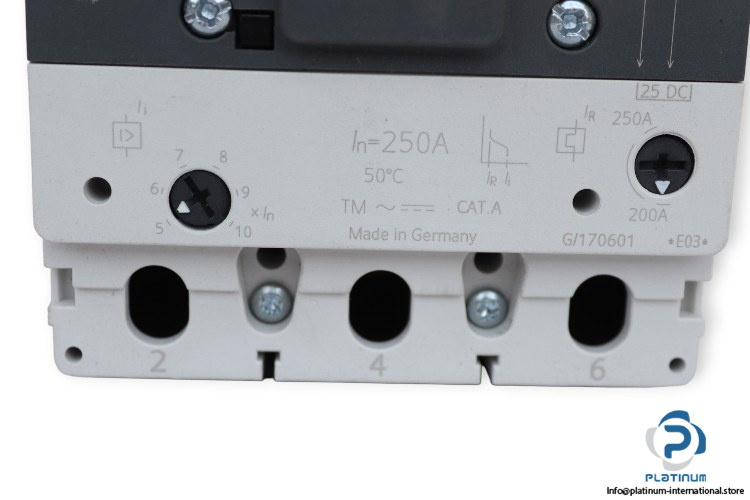

Rated Current: 250 A
Rated Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 8 kV
Rated Operating Power AC-3:
230 V: 46 kW
400 V: 138.5 kW
Poles No.: 3-Poles
Rated Service Short-Circuit Breaking Capacity (Ics):
240 V AC: 65 kA
415 V AC: 55 kA
500 V AC: 20 kA
690 V AC: 6 kA
250 V DC: 32 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
240 V AC: 65 kA
415 V AC: 55 kA
440 / 480 / 500 V AC: 25 kA
600 / 690 V AC: 12 kA
250 V DC: 32 kA
Protection Class: IP20
Operation Temperature: 0 … 70 °C
Dimensions: 185.5 x 104.5 x 106.5 mm
