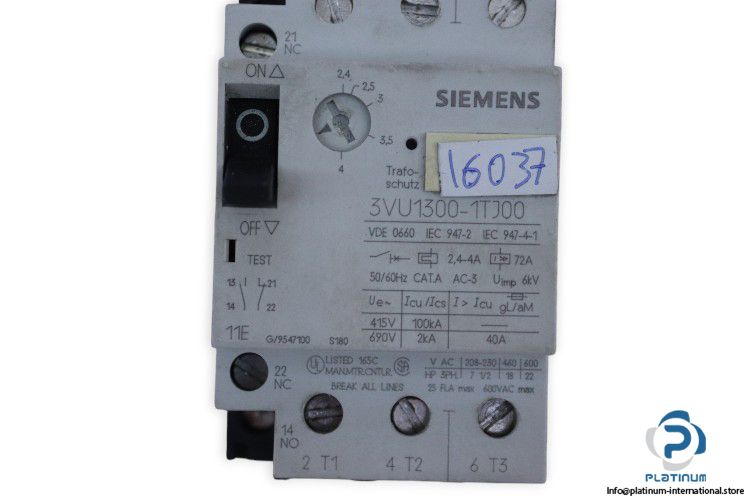

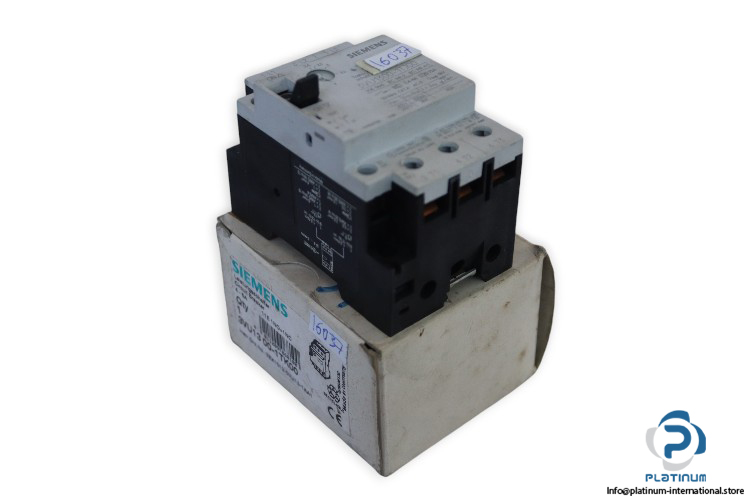

Siemens 3VU1300-1TJ00 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3VU13001TJ00

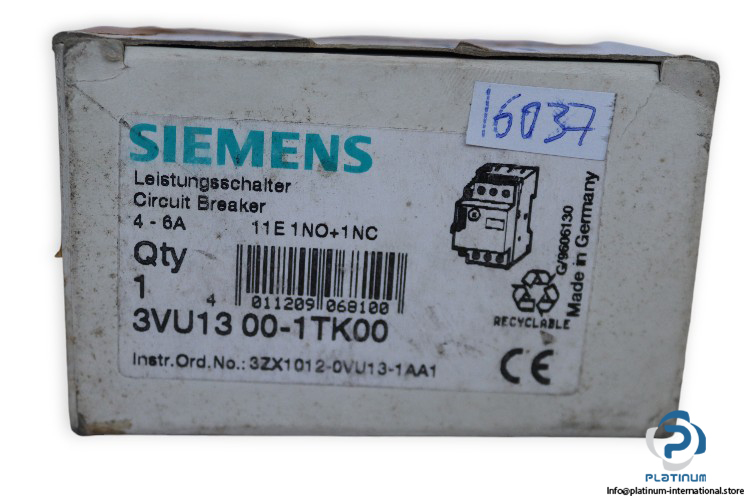

Alternative Model: 3VU13001TK00

Brand Name: SIRIUS
Used for: Motor Protector
Operating Voltage: 600 V AC
Adjustable Current: 2.4 … 4 A
Frequency: 50 … 60 Hz
Horse Power AC-3: 7.5 / 18 / 22 HP
Rated Impulse Voltage Uimp: 6 kV
Contact: 2-Pole 1 Normally Open (NO) + 1 Normally Closed (NC)
Rated Service Short-Circuit Breaking Capacity (Ics):
415 V AC: 100 kA
690 V AC: 2 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
415 V AC: 100 kA
690 V AC: 2 kA
Protection Class: IP20
Operation Temperature: -20 … 60 °C
Dimensions: 102 x 76 x 51 mm
