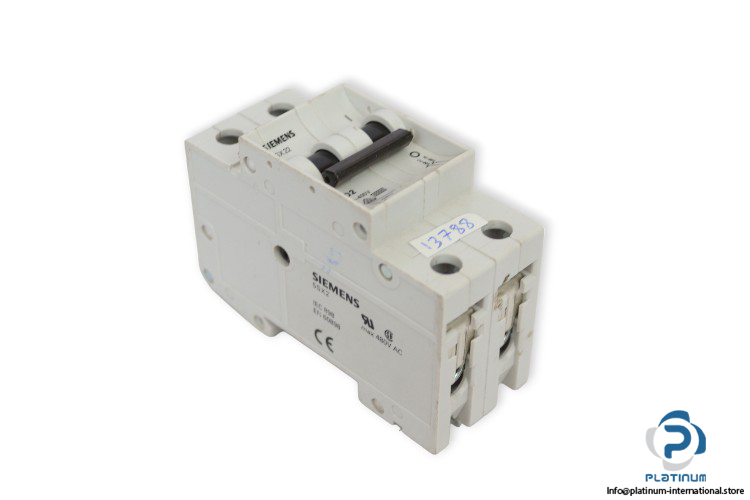

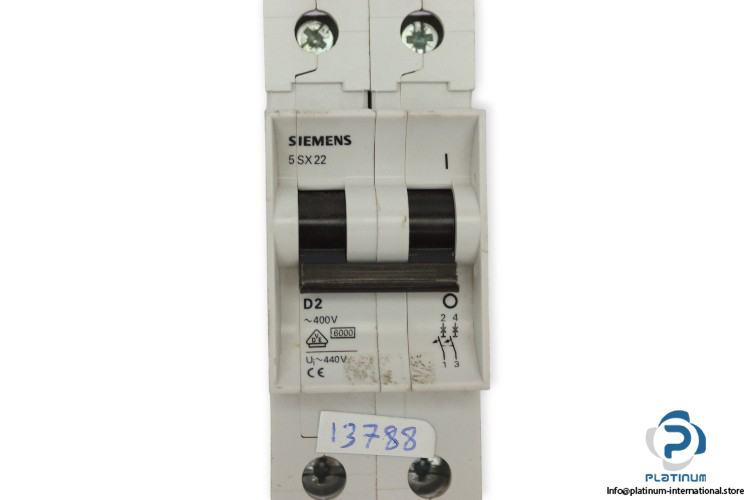

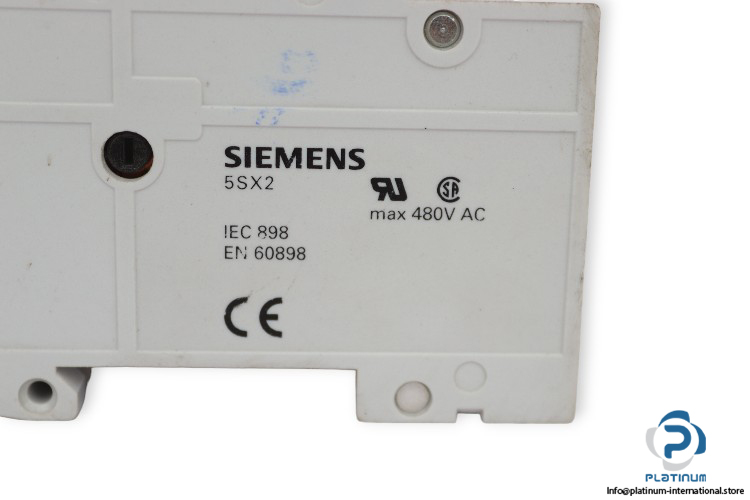

Siemens 5SX22 D2 Miniature Circuit Breaker
Manufacturer: Siemens
Type: Miniature Circuit Breaker
Model: 5 SX22 D2
Rated Voltage: 400 V AC
Insulation voltage Ui: 440 V AC
Rated Breaking Capacity: 6000 A
No. of Poles: 2
Terminal tightening torque recommended: 2.5 … 3 Nm
Degree of protection: IP 00 according to DIN 40 050, IP 40 when mounted in distribution boards
Ambient temperature: -25 … 45°C
Standard: IEC 898, EN 60898
