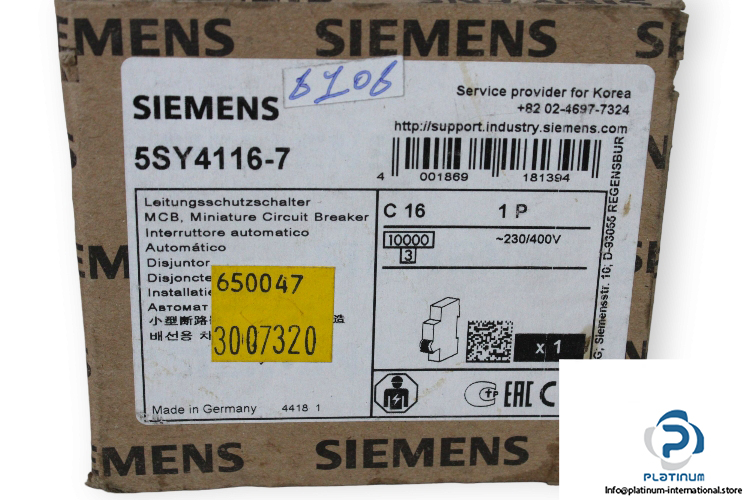

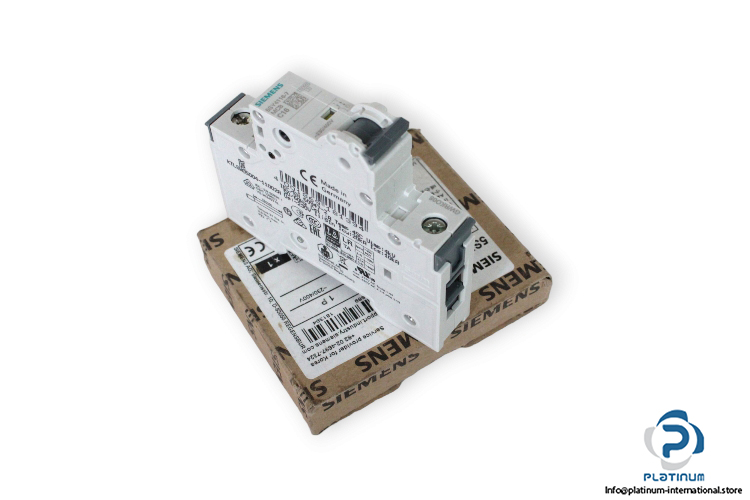

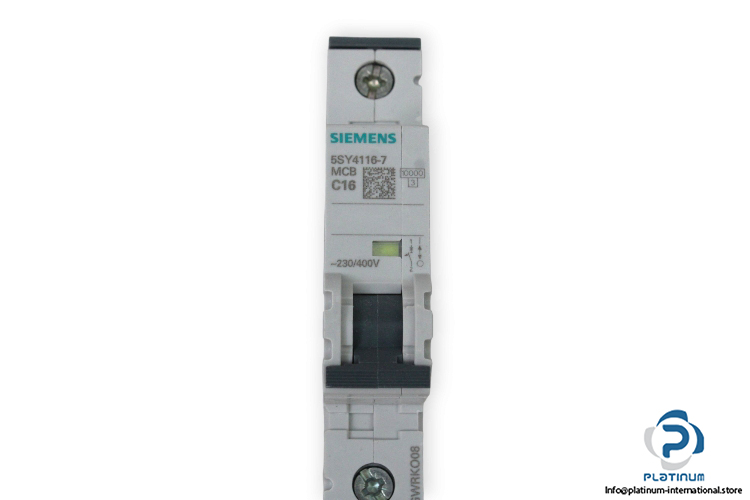

Siemens 5SY4116-7 Circuit Breaker

Manufacturer: SIEMENS
Type: Miniature Circuit breaker
Model: 5SY4116-7

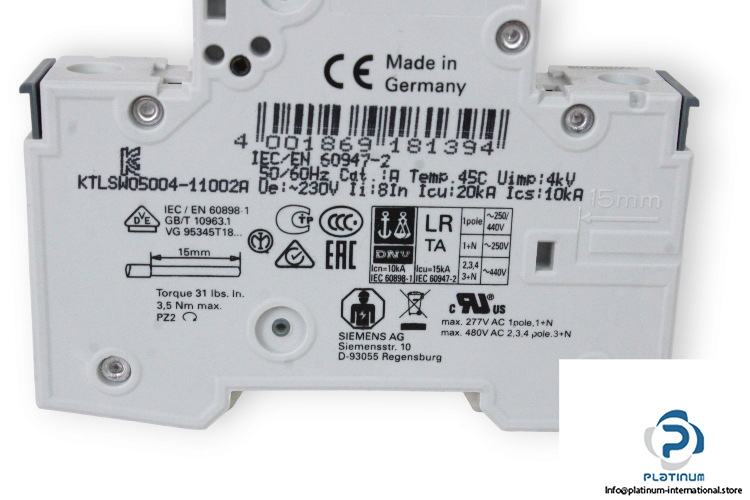

KTLSW05004-11002A

number of poles: 1
degree of pollution: 3
type of voltage of the operating voltage: AC
insulation voltage (Ui):
with single-phase operation at AC rated value 440 V
with multi-phase operation at AC rated value 440 V
supply voltage with single-phase operation at AC rated value: 230 V
supply voltage:
at AC rated value 400 V
at DC rated value 60 V
value range of the supply voltage frequency: 50/60 Hz
switching capacity current
at DC according to IEC 60947-2 rated value 15 kA
according to EN 60898 rated value 10 kA
according to IEC 60947-2 rated value 20 kA
operating voltage at DC rated value maximum: 72 V
protection class IP: IP20
power loss [W] for rated value of the current at AC in hot
operating state per pole: 1.6 W
Dimensions: 90 x 18 x 70 mm
Ambient temperature: -40 … 70 °C
