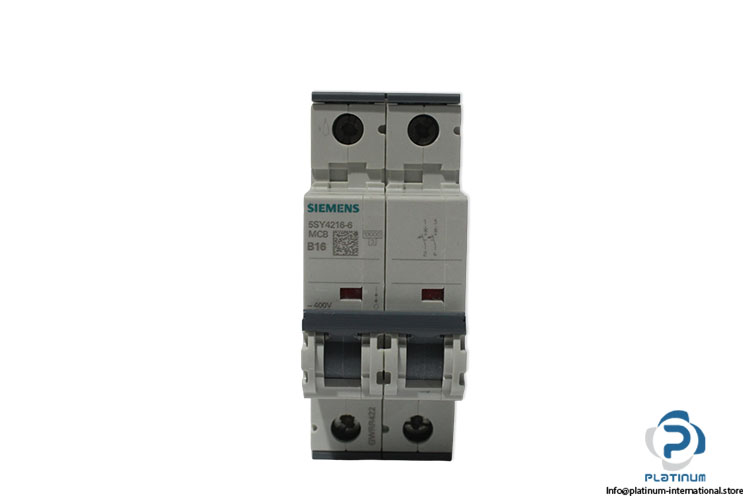

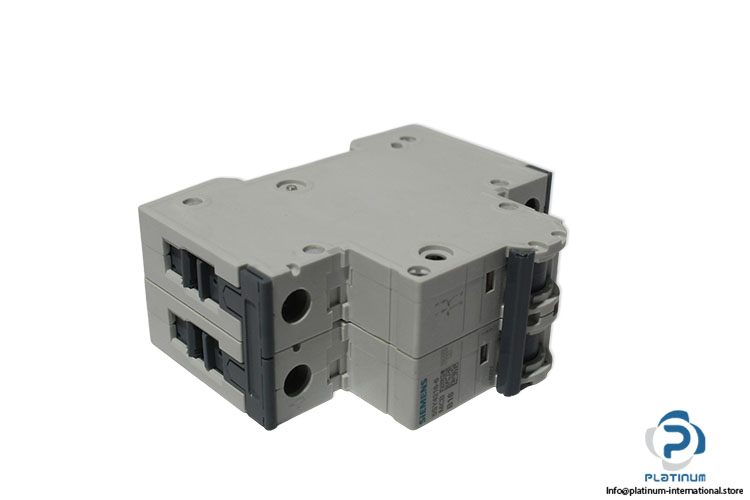

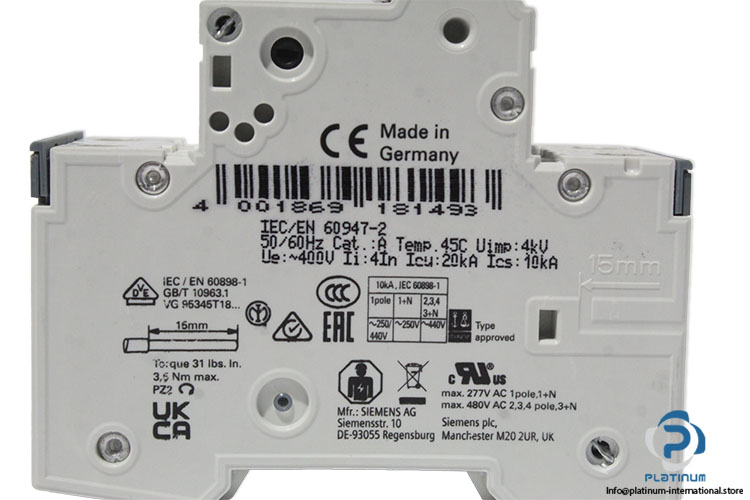

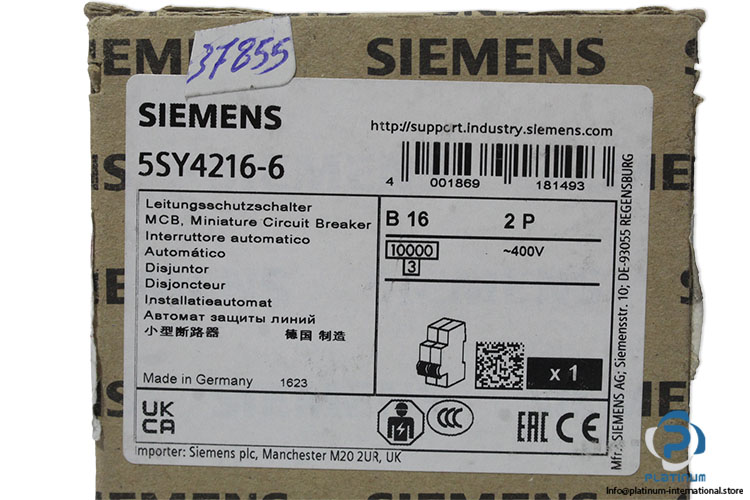

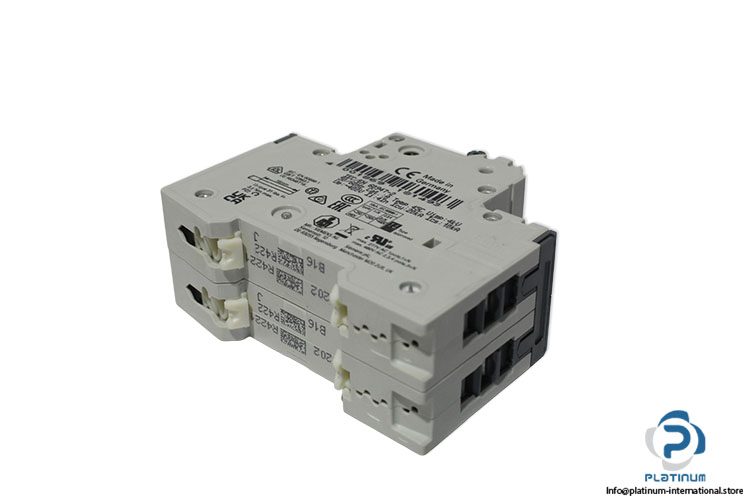

Siemens 5SY4216-6 Miniature Circuit Breaker
New
In stock2 unitsReady to ship
Siemens 5SY4301-7 SENTRON Miniature Circuit Breaker is a 2-pole circuit protection device rated at 16 A with a B tripping characteristic. It supports 400 V AC and 60 V DC supply voltage and features DIN rail mounting, IP20 protection, and compliance with IEC, EN, and UL standards.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Manufacture | Siemens |
| MNR | 5SY4301-7 |
| Product Brand Name | SENTRON |
| Insulation Voltage | 440 V AC |
| Supply Voltage | 400 V AC, 60 V DC |
| Operational Current | 16 A |
| Frequency | 50/60 Hz |
| No. of poles | 2 |
| Degree of pollution | 3 |
| Tripping characteristic class | B |
| Power loss | 1.8 W |
| Fastening method | DIN rail |
| Tightening Torque Max. | 3.5 N.m |
| Number Of Modular Width Units | 2 |
| Standard | IEC / EN 60898-1, IEC / EN 60947-2 / UL1077 |
| Ambient temperature during operation | -40 … 75°C |
| Dimensions | 90 x 36 x 76 mm |
| Protection class | IP20 |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093494 |
| Weight | 0,31 |
