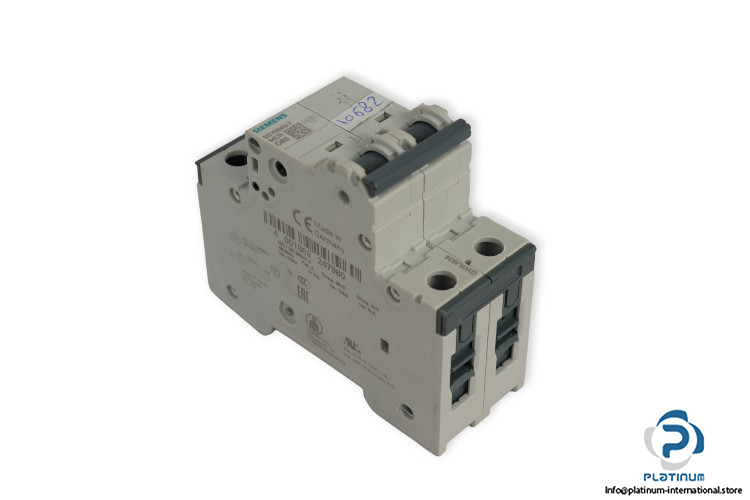

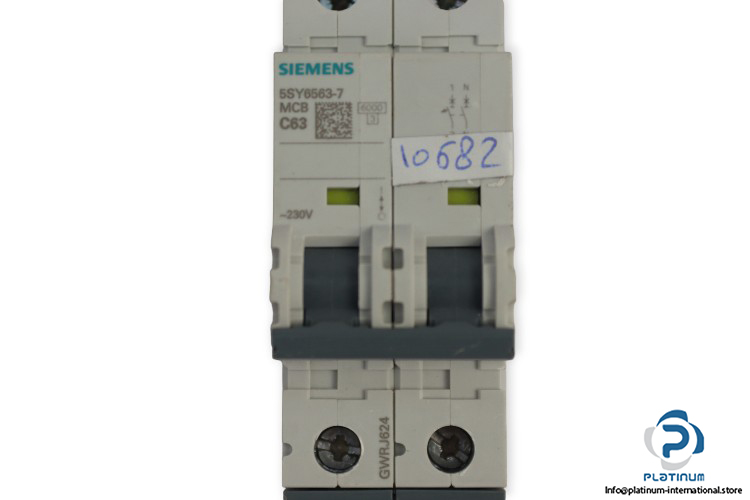

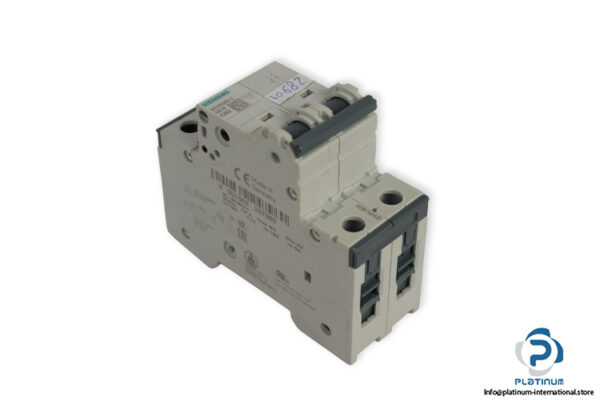

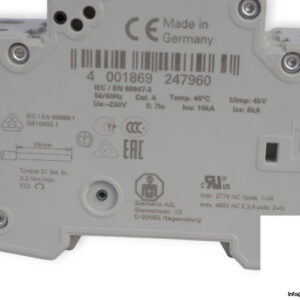

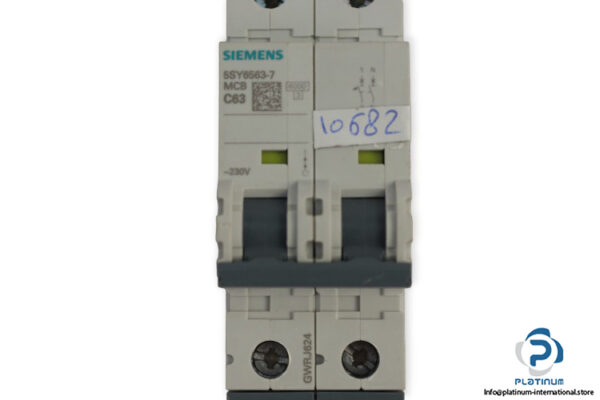

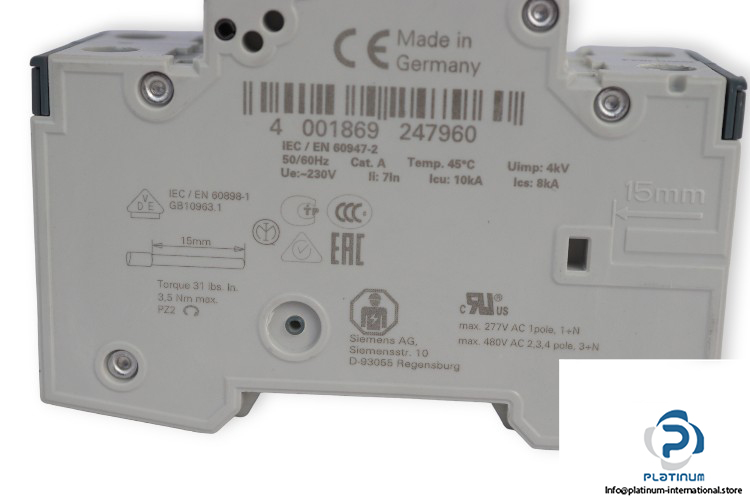

Siemens 5SY6563-7 Miniature Circuit Breaker

Manufacturer: SIEMENS
Type: Miniature Circuit Breaker
Model: 5SY65637
Alternative Model: GWRJ624

Brand Name: SENTRON
Rated Supply Voltage: 230 V AC
Rated Operational Current (In): 7 A
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 4 kV
Rated Insulation Voltage (Ui): 440 V AC
Power Loss: 6 W
Rated Service Short-Circuit Breaking Capacity (Ics): 8 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 10 kA
No. of Poles: 1+N-Pole
Protection Class: IP20
Ambient Temperature: -25 … 55°C
Dimensions: 90 x 36 x 70 mm
