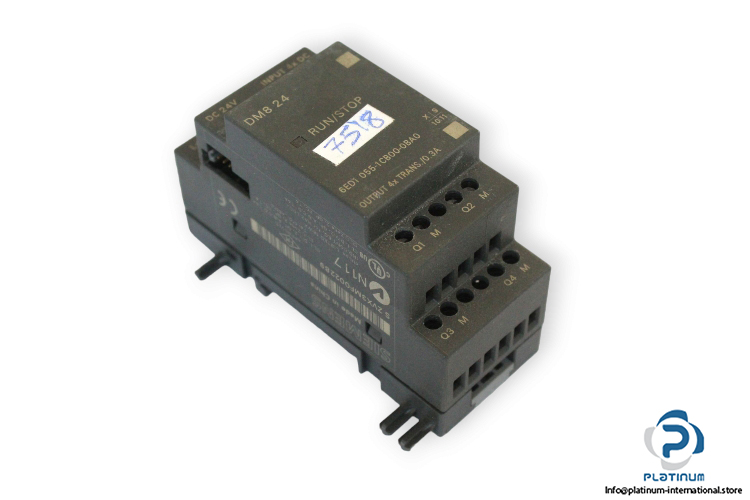

Siemens 6ED1 055-1CB00-0BA0 Expansion Module
33,33$
Siemens 6ED1055-1CB00-0BA0 LOGO! DM8 24 Expansion Module Efficient expansion module for Siemens LOGO! controllers. Features 4 digital inputs (DI) and 4 digital outputs (DO), compact DIN rail mounting, and reliable industrial automation performance.
Siemens 6ED1055-1CB00-0BA0 LOGO! DM8 24 Expansion Module
The Siemens 6ED1055-1CB00-0BA0 is a compact and efficient Expansion Module from the LOGO! family, designed to extend the functionality of Siemens LOGO! logic controllers. This module provides additional digital inputs and outputs, ensuring seamless integration in industrial automation applications.
Key Details:
Manufacturer: Siemens
Type: Expansion Module
Model: DM8 24
Model Number (MNR): 6ED1055-1CB00-0BA0
Family: LOGO!
The Siemens LOGO! DM8 24 expansion module is ideal for industrial applications that require increased input/output capacity in automation systems. It ensures seamless connectivity, easy DIN rail mounting, and reliable switching performance in various automation environments.
| Installation Type/Mounting | 35 mm DIN rail, 2 spacing units wide |
| Supply Voltage | 24 V DC |
| Operating Voltage Range | 20.4 to 28.8 V DC |
| Input Delays | 1.5 ms |
| Input Current | 0.85 mA |
| Number of Digital Relays | 4 DI (Digital Inputs) and 4 DO (Digital Outputs) |
| Output Current | 0.3 A |
| Switching Frequency | 10 Hz |
| Dimensions | 36 x 90 x 55 mm |
| Operating Temperature | 0 to 55°C |
