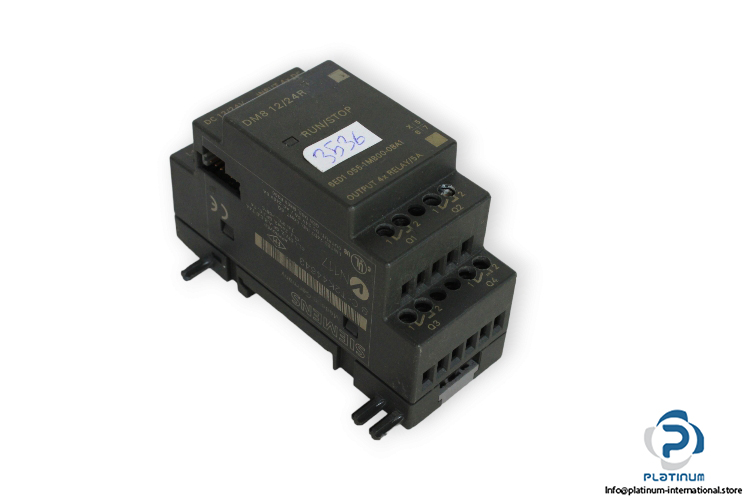

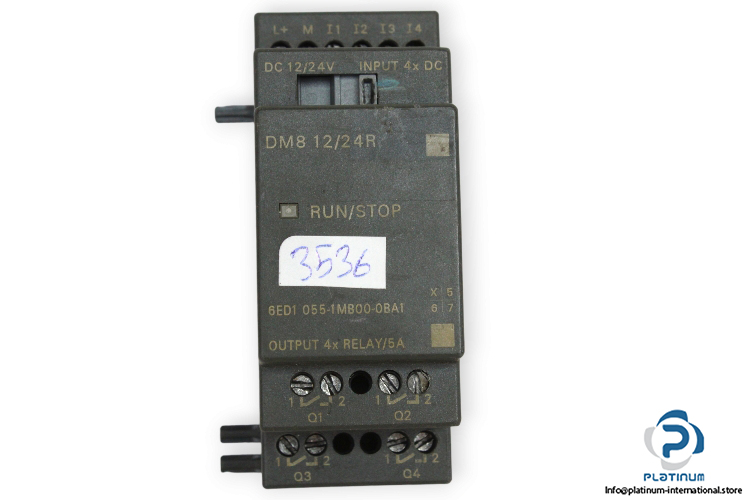

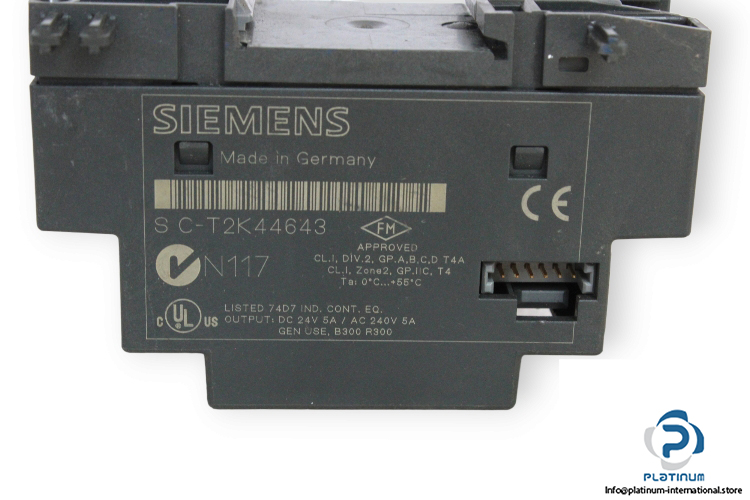

Siemens 6ED1 055-1MB00-0BA1 Expansion Module

Manufacturer: SIEMENS
Type: Expansion Module
Model: 6ED1055-1MB00-0BA1
MNR: DM8 12/24R

permissible range, lower limit (DC): 10.8 V
permissible range, upper limit (DC): 28.8 V
Digital inputs: Number of digital inputs 4
Type of input voltage: DC
Input current:
for signal “0”, max. (permissible quiescent current) 0.05 mA
for signal “1”, typ. 1.5 mA
Input delay (for rated value of input voltage) for standard inputs:
— at “0” to “1”, max. 1.5 ms
— at “1” to “0”, max. 1.5 ms
Number of digital outputs: 4 Relays
Switching capacity of the outputs: on lamp load, max. 1 000 W
Output current: for signal “1” rated value 5 A
Ambient temperature: 0 … 55 °C
Dimensions
Width: 36 mm
Height: 90 mm
Depth: 55 mm
