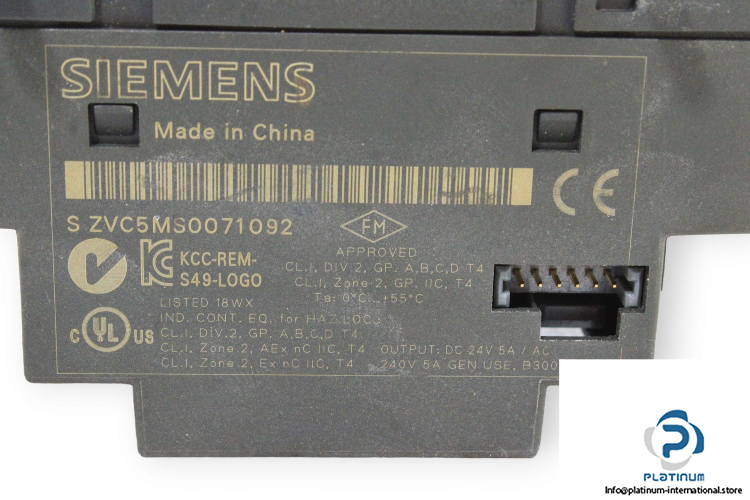

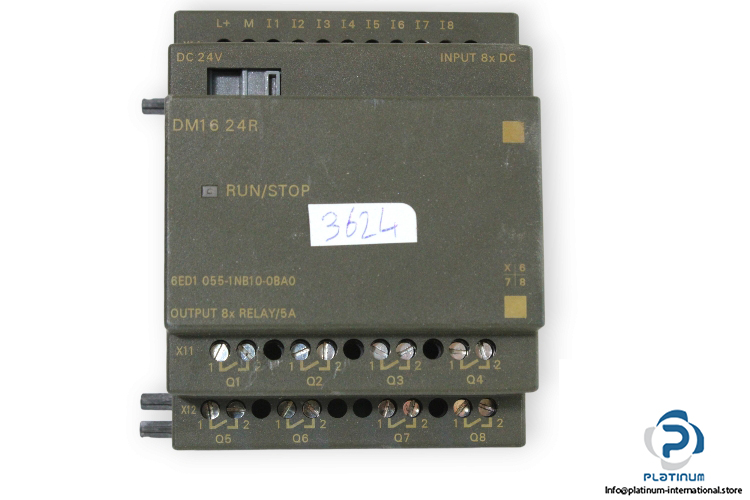

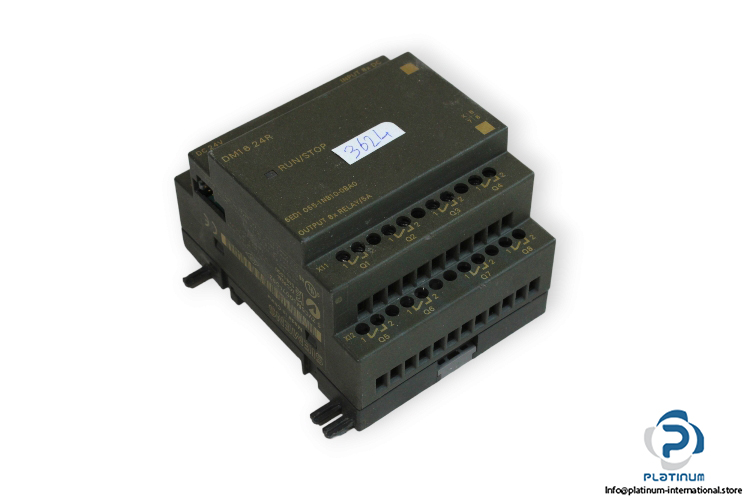

Siemens 6ED1 055-1NB10-0BA0 Expansion Module

Manufacturer: SIEMENS
Type: Expansion Module
Model: DM16 24R
Part No.: 6ED1 055-1NB10-0BA0

Rated value (DC): 24 V DC Yes
permissible range, lower limit (DC): 20.4 V
permissible range, upper limit (DC): 28.8 V
Digital inputs
Number of digital inputs: 8
Input voltage
Type of input voltage: DC
Input current
for signal “0”, max. (permissible quiescent current): 1 mA
for signal “1”, typ.: 2 mA
Input delay (for rated value of input voltage)
for standard inputs
— at “0” to “1”, max.: 1.5 ms
— at “1” to “0”, max.: 1.5 ms
Digital outputs
Number of digital outputs: 8; Relays
on lamp load, max.: 1 000 W
Output current
for signal “1” rated value: 5 A
Ambient Temperature: 0 … 55 °C
Protection Class: IP20
