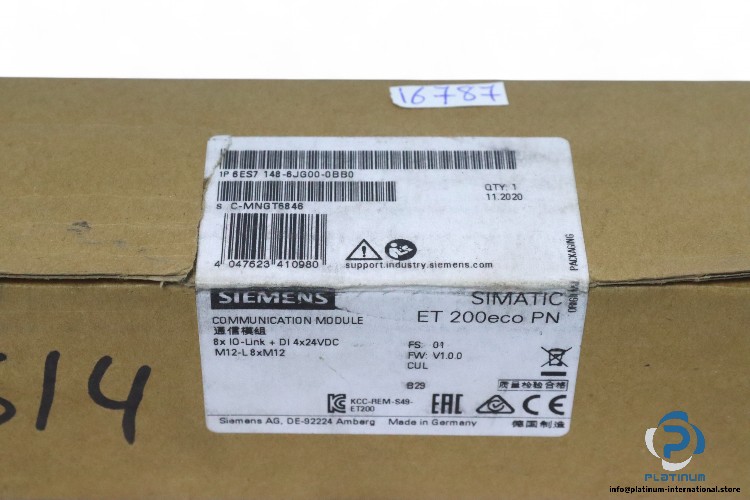

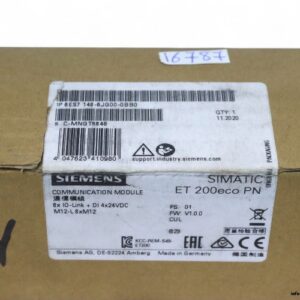

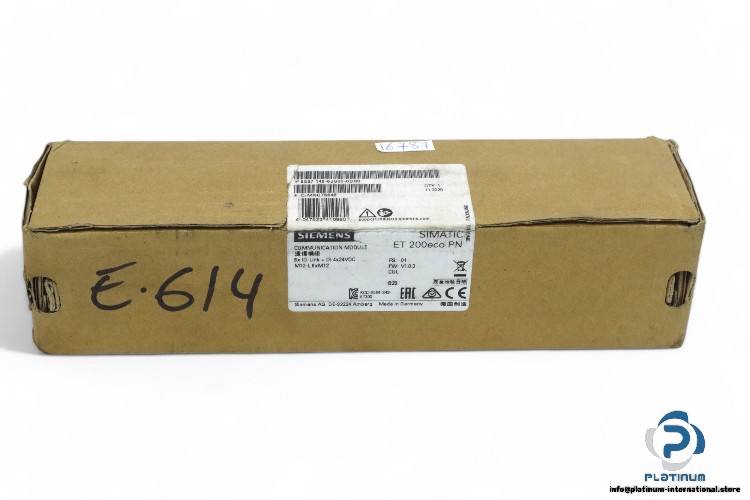

Siemens 6ES7 148-6JG00-0BB0 Communication Module

Manufacturer: SIEMENS
Type: COMMUNICATION MODULE
Model: 6ES7 148-6JG00-0BB0

Input voltage: 24 V DC
Input current: 2.5 mA
Cable length: 30 m
Design of electrical connection: 4/5-pin M12 circular connectors

Load voltage 1L+, Load voltage 2L+
• Rated value: 24 V DC
• permissible range, lower limit: 20.4 V DC
• permissible range, upper limit: 28.8 V DC
Input current:
Current consumption: 70 mA; without load
from load voltage 1L+ (unswitched voltage): 12 A; Maximum value
from load voltage 2L+, max.: 12 A; Maximum value

Number of outputs: 8
Power loss: 5.5 W

Address space per module:
• Inputs: 264 byte; + 8 bytes
• Outputs: 256 byte

Number of digital inputs: 4
Ambient Temperature: -40 … 60 °C
Dimensions (H x W x D): 200 x 45 x 48 mm
