Siemens 6ES7 153-1AA03-0XB0 Interface Module
New
In stock3 unitsReady to ship
277,77$
CONNECTION INTERFACE MODULE
Siemens IM 153-1 is a communication interface module for ET 200M systems, delivering stable 5V output, PROFIBUS connectivity, and reliable operation at 24 V DC input.153-1153-1AA03-0XB0200M24v6ES7AutomationBackplaneBUSCommunicationdcDPETIMInterfaceIP20ModulePLCProfibusS7-300SiemensSimatic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

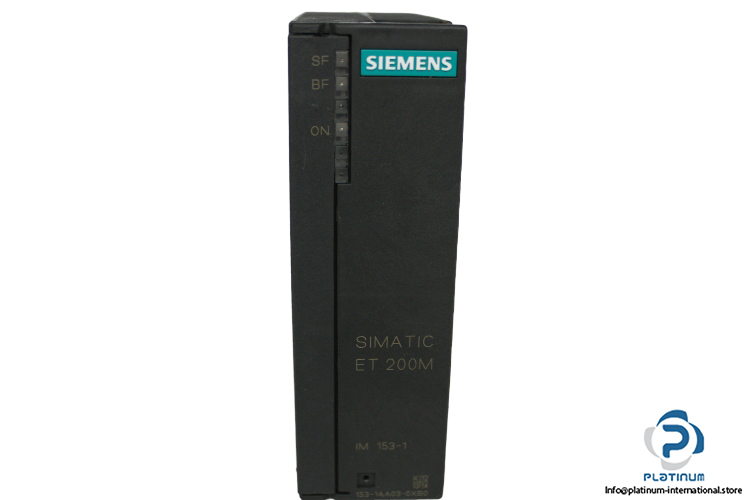

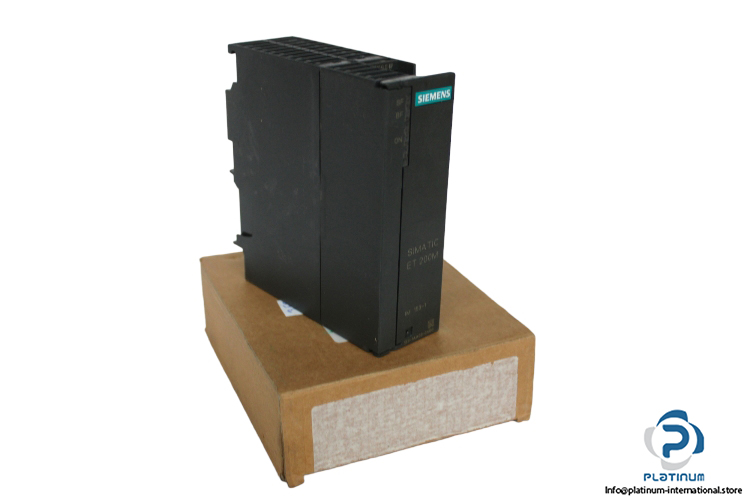

SIEMENS IM 153-1 CONNECTION INTERFACE MODULE
The Siemens IM 153-1 is a robust connection interface module from the SIMATIC DP S7-300 family, engineered for use with ET 200M distributed I/O systems. It ensures reliable communication via PROFIBUS and stable power distribution across the backplane bus, making it ideal for demanding industrial automation environments.
Manufacturer: SIEMENS
Family: SIMATIC DP S7-300
Type: Connection Interface Module
Model: IM 153-1

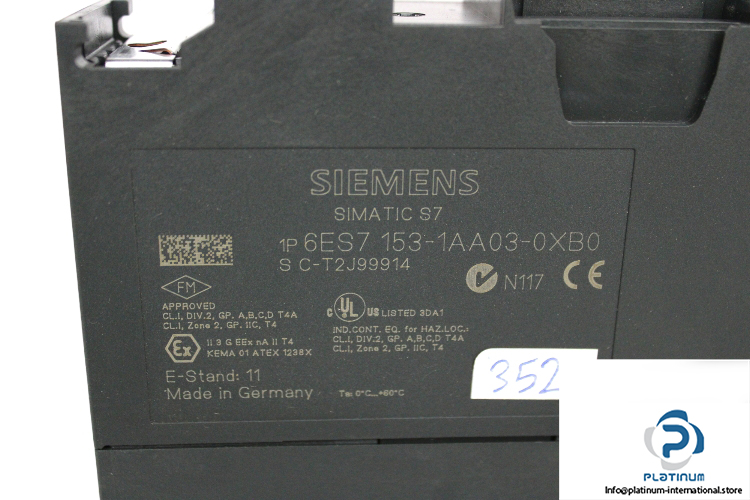

MRN: 6ES7 153-1AA03-0XB0
SN: C-T2J99914
E SWTAND: 11
Uses: For ET 200M Siemens PLC
| Supply Voltage | 24 V DC |
| Input Current | 350 mA |
| Inrush Current | typ. 2.5 A |
| Rated Output Voltage | 5 V DC |
| Output Current | 1 A for backplane bus 5 V DC |
| Power Loss | 3 W |
| Connection of PROFIBUS | 9-pin sub D socket |
| Protection | IP20 |
| Dimensions (W x H x D) | 40 mm x 125 mm x 117 mm |
| Operating Temperature | 0 / 60°C |
