Siemens 6ES7 214-1BD23-0XB0 CPU Module
Used
Available on request
COMPACT COMMUNICATIONS PROCESSOR CPU
Siemens SIMATIC S7-200 CPU 224 with 14 digital inputs, 10 relay outputs, 2 analog potentiometers, and IP20 protection. Designed for efficient automation control in compact installations.AutomationCompactControlControllerCPUDigitalIndustrialInputIP20OutputPLCprocessorProtectedRelayS7-200SiemensSimaticUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

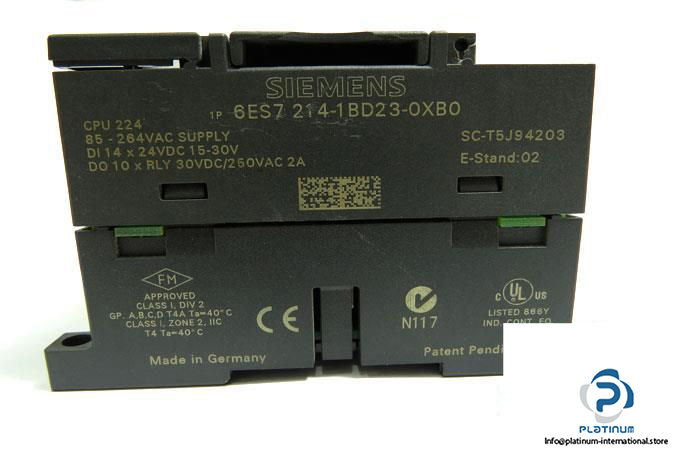

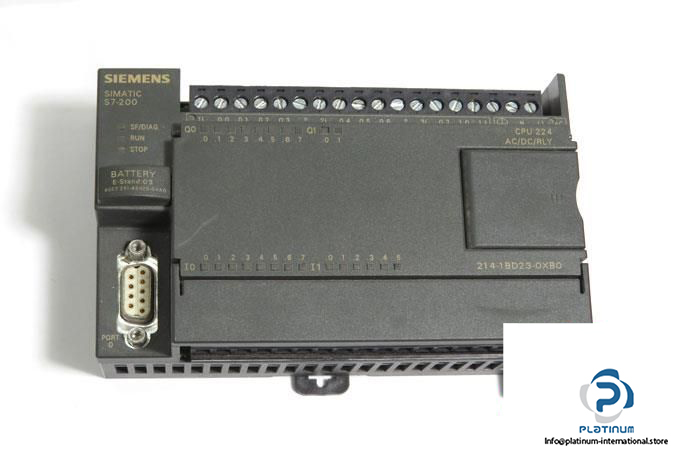

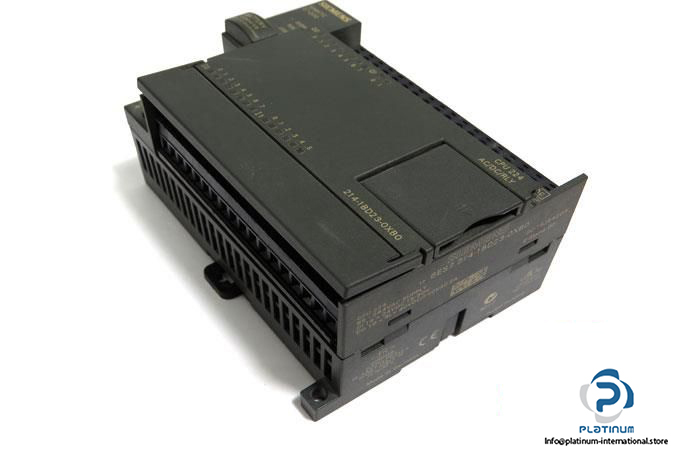

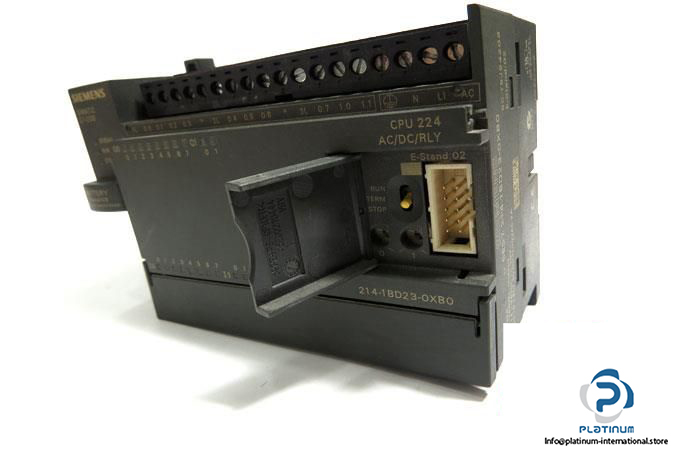

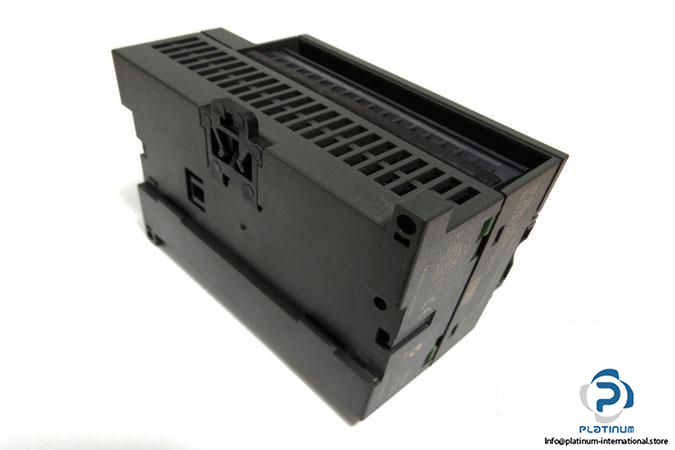

SIEMENS SIMATIC S7-200 CPU 224
The Siemens SIMATIC S7-200 CPU 224 is a compact communications processor designed for efficient automation control in industrial applications. With its combination of digital inputs, relay outputs, and integrated analog potentiometers, it delivers reliable performance in space-saving installations. Its robust construction and IP20 protection make it suitable for demanding environments.
Manufacturer: Siemens
Family: SIMATIC S7-200
Type: Compact Communications Processor CPU
Model: CPU 224
MRN: 6ES7214-1BD23-0XB0
SN: SC-T5J94203
E Stand: 02
| Inputs | 14 digital, 24 V, 2.5 mA |
| Input Current | 2.5 mA |
| Outputs | 10 relay outputs, 2A for signal œ1 |
| Output Delay (Resistive Load) | 10 ms |
| Analog Potentiometers | 2 |
| Rated Supply Voltage | 120 V AC / 230 V AC |
| Permissible Frequency Range | 47 Hz “ 63 Hz |
| Input Inrush Current | 20 A |
| Input Current from Supply Voltage L1 | 200 mA |
| Power Loss | 10 W |
| Integrated Memory | 12 Kbyte (Program), 8 Kbyte (Data) |
| Dimensions | 120.5 x 80 x 62 mm |
| Protection | IP20 |
