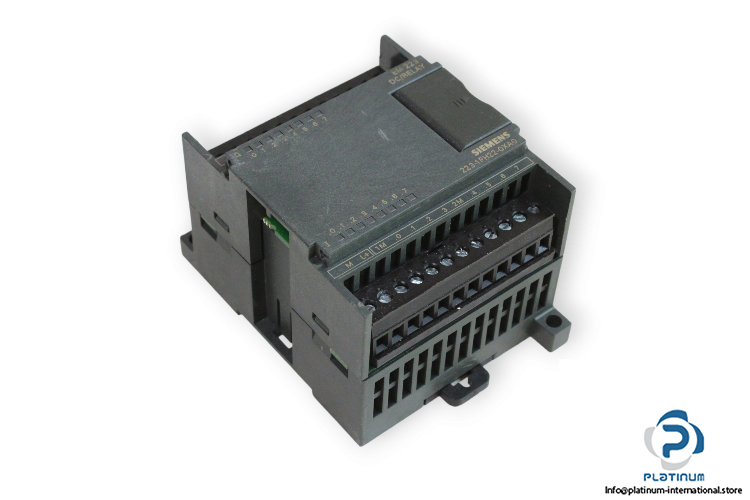

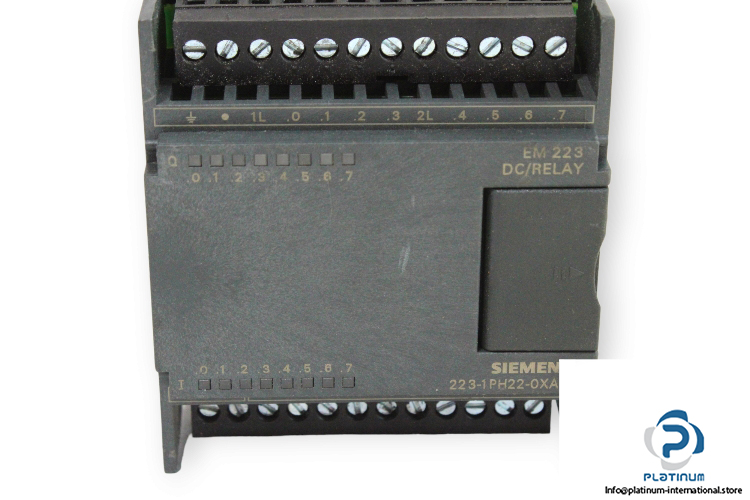

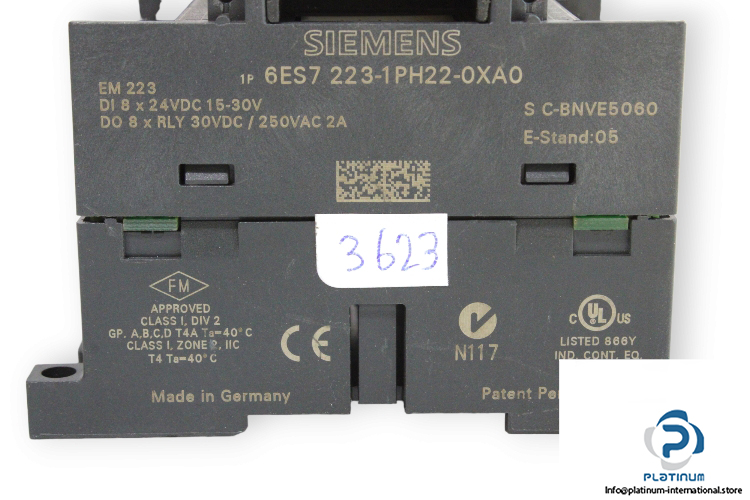

Siemens 6ES7 223-1PH22-0XA0 Digital I/O Module

Manufacturer: SIEMENS
Type: Digital I/O Module
Family: SIMATIC S7-200
Model: 6ES7223-1PH22-0XA0

Load voltage L+
Rated value (DC): 24 V
permissible range, lower limit (DC): 5 V
permissible range, upper limit (DC): 30 V
Load voltage L1
Rated value (AC): 230 V; 24V AC to 230V AC
permissible range, lower limit (AC): 5 V
permissible range, upper limit (AC): 250 V
Input current
from external supply (24 V DC), max.: 72
mA
from backplane bus 5 V DC, max.: 80 mA
from coil current, max.: 9 mA
Power loss, typ.: 3 W
Digital inputs
Number of digital inputs: 8
Input voltage
Type of input voltage: DC
 Rated value (DC): 24 V
 for signal “0”: 0 to 5 V
 for signal “1”: 15 V DC to 30 V DC
Input current
 for signal “1”, typ.: 4 mA
Dimensions
Width: 71.2 mm
Height: 80 mm
Depth: 62 mm
