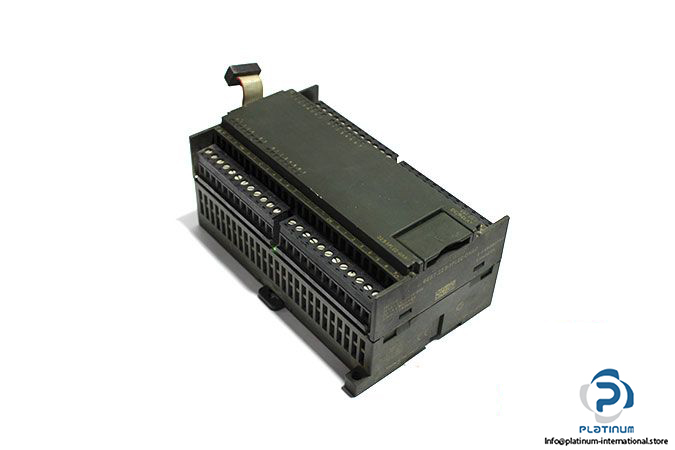

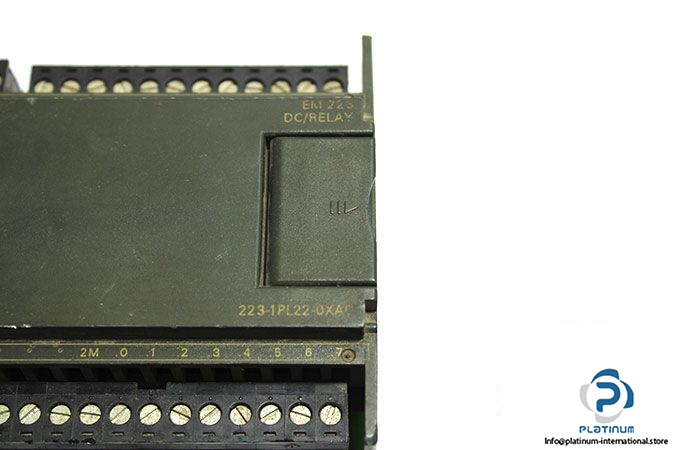

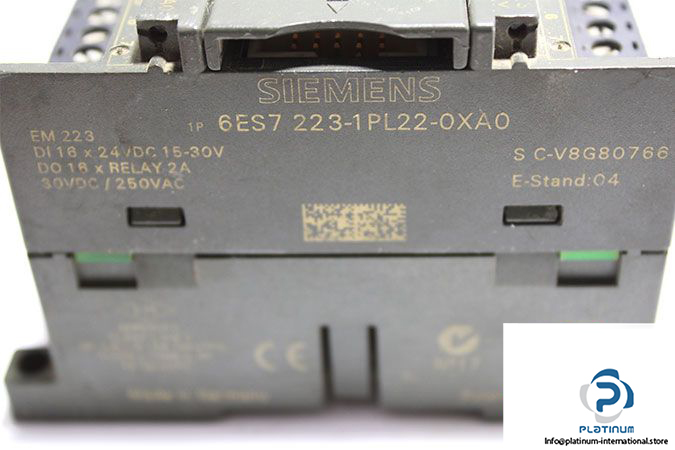

Siemens 6ES7 223-1PL22-0XA0 Digital Combination Module

Manufacturer: SIEMENS

Type: Digital Combination Module

Family: SIMATIC S7-200

Model: EM 223

MRN: 6ES7 223-1PL22-0XA0

Application: only for S7-22X CPU

Power Supply:  24 V DC

No. of Digital Inputs: 16

DI Voltage:  24 V DC

DI current: 4 mA

No. of Digital Outputs: 16

DQ Voltage:  30 V DC

DQ Current: 2 000 mA for signal “1” rated value

Power Loss: 6 W

No. of Digital Relay: 16

Relay Voltage: 250 V AC / DC

Dimensions: 137.5 x 80 x 62 mm

Weight: 0.3 kg
