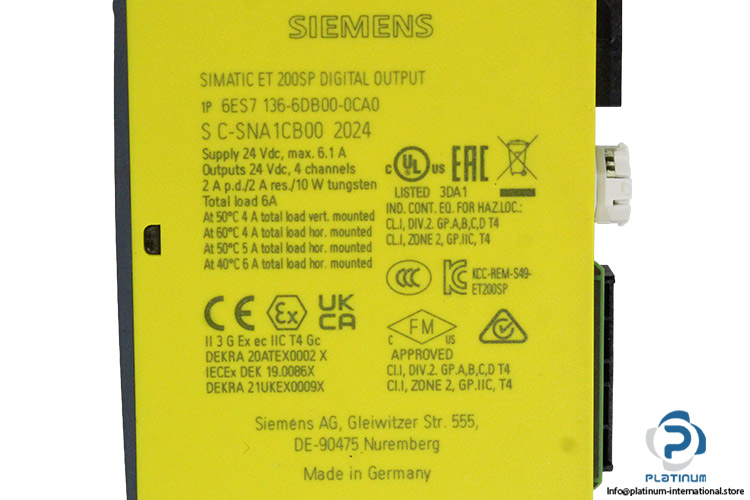

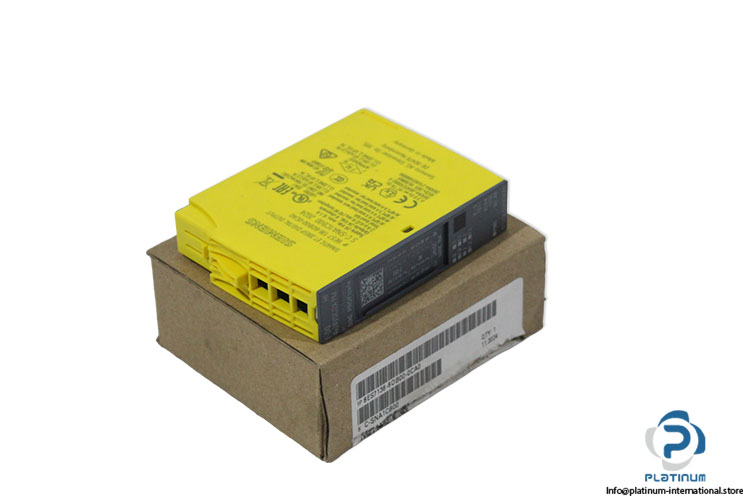

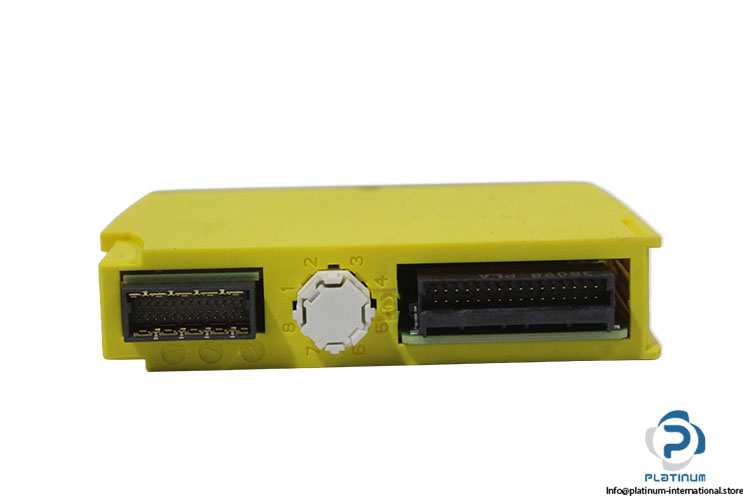

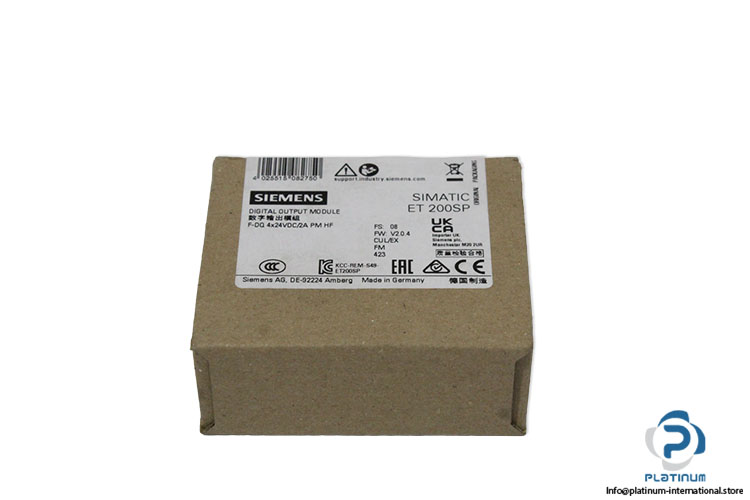

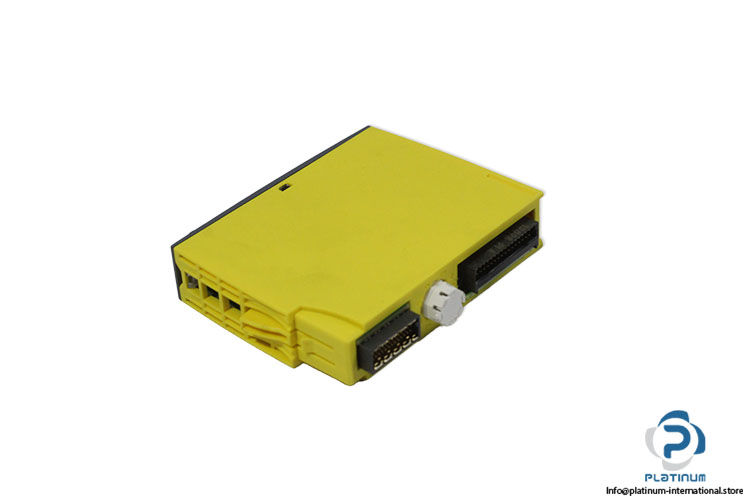

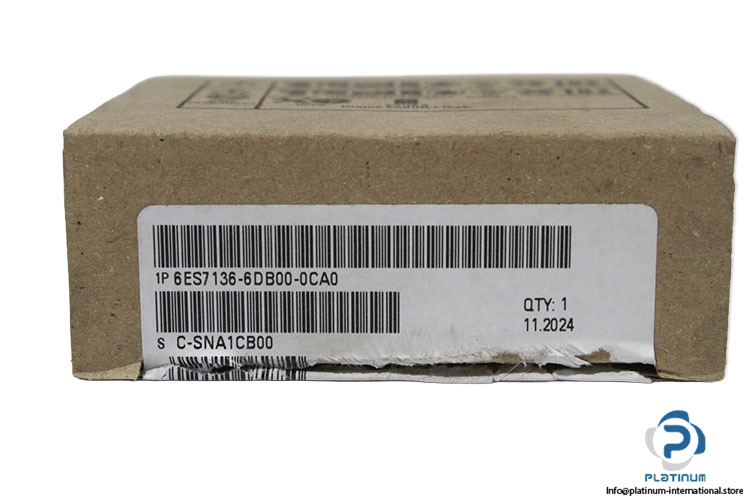

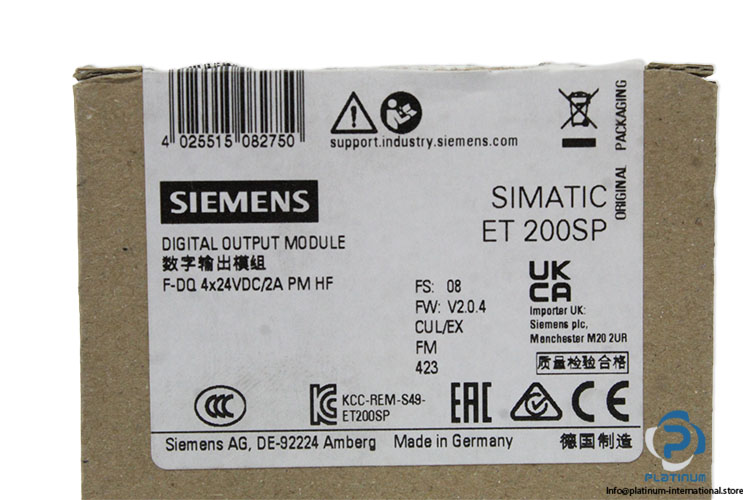

Siemens 6ES7136-6DB00-0CA0 Electronics Module
New
In stock2 unitsReady to ship
100,00$
Electronics Module
A compact safety digital output module for the ET 200SP system, offering four transistor-based 24 V DC outputs with high reliability and seamless integration into SIMATIC DP and PROFINET automation architectures.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 6ES7 136-6DB00-0CA0 Electronics Module
A high-performance safety digital output module designed for the ET 200SP distributed I/O system. This SIMATIC DP module provides reliable and precise control of safety-related outputs in industrial automation environments and integrates seamlessly with SIEMENS engineering platforms. Manufacturer: SIEMENS
Type: Electronics Module for ET 200SP
Family: SIMATIC DP
MRN: 6ES7 136-6DB00-0CA0
Product Type Designation: F-DQ 4x24VDC/2A PM HF
Usable BaseUnits: BU Type A0
| Engineering Software | STEP 7 TIA Portal configurable/integrated from V12 |
| Engineering Software | STEP 7 configurable/integrated from V5.5 SP3 |
| Communication | PROFINET from GSD version/GSD revision V2.31 |
| Supply Voltage (DC) | 24 V |
| Permissible Range (Lower Limit) | 19.2 V DC |
| Permissible Range (Upper Limit) | 28.8 V DC |
| Input Current (Rated, No Load) | 75 mA |
| Current Consumption (Max) | 21 mA per output |
| Output Voltage | 24 V DC |
| Power Available from Backplane Bus | 70 mW |
| Power Loss (Typical) | 4 W |
| Digital Output Type | Transistor |
| Number of Digital Outputs | 4 |
| Response Threshold (Typical) | 2.9 A |
| Inductive Shutdown Voltage Limitation | Typ. -2 x 47 V |
| Ambient Temperature (Horizontal Installation) | 0 °C to 60 °C |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
