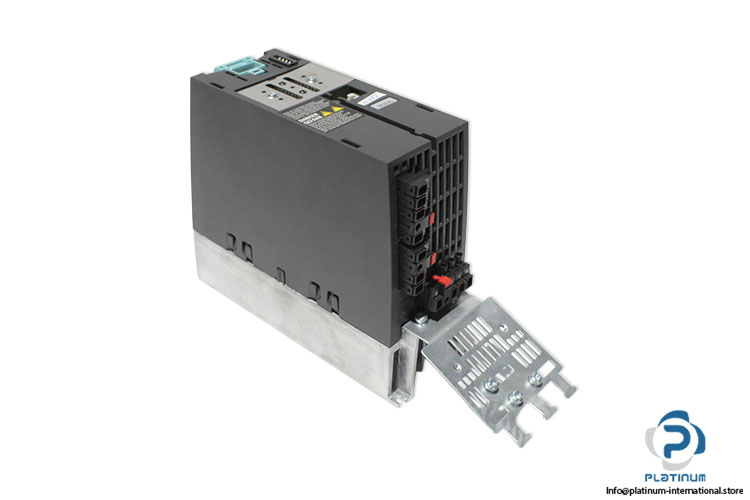

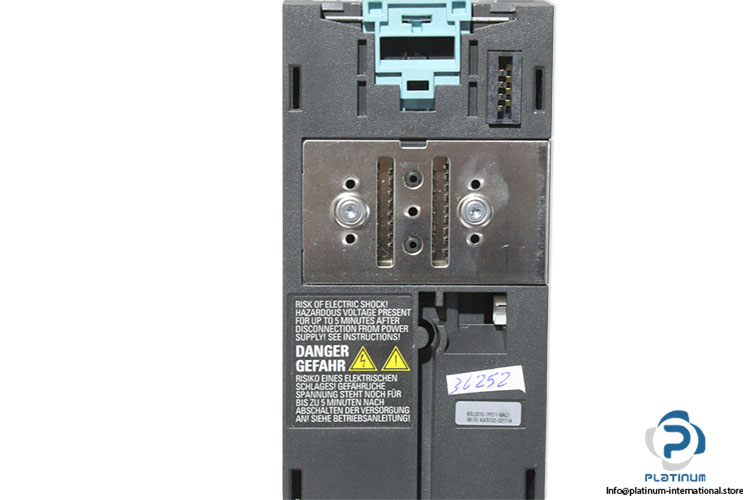

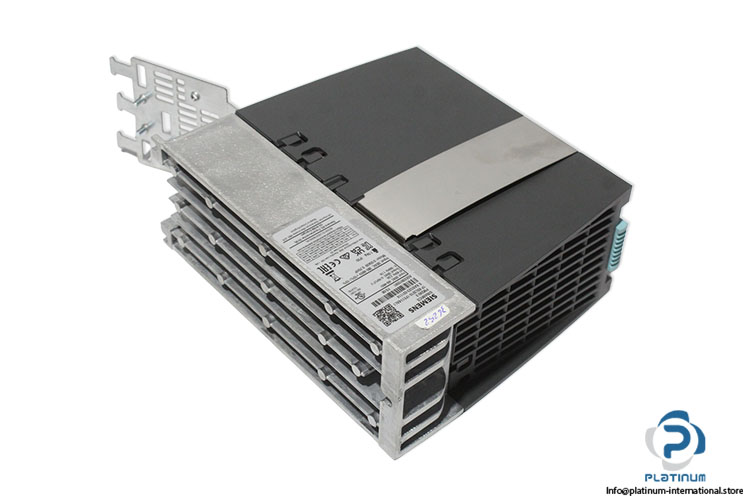

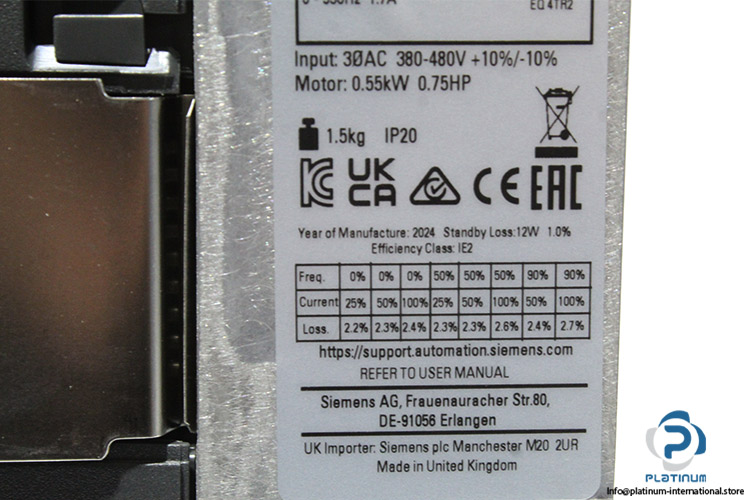

Siemens 6SL3210-1PE11-8AL1 Power Module
New
In stock1 unitReady to ship
Power Module SIEMENS SINAMICS PM240-2 power module designed for industrial motor control applications, featuring 3-phase input, high efficiency, integrated Class A filter, and reliable performance for variable speed drive systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | 6SL3210-1PE11-8AL1 |
| Family | SINAMICS |

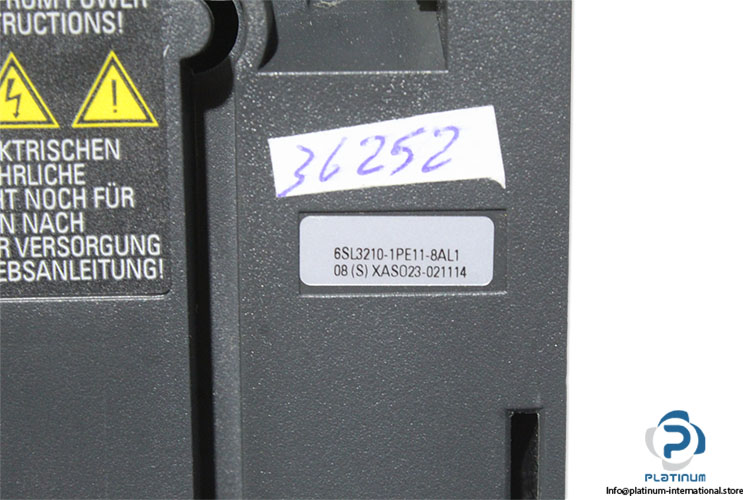

| Code | 08 (S) XASO23-021114 |

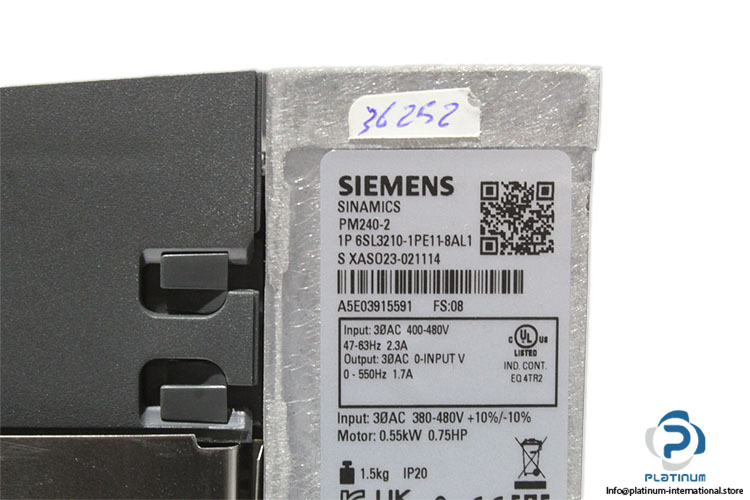

| SN | A5E03915591 |
| FS | 08 |
| Number of phases, Input | 3 AC |
| Line voltage , Input | 400 ... 480 V |
| Input Current | 2.3A |
| Line frequency, Input | 47 ... 63 Hz |
| Rated voltage | 400V IEC 480V NEC 1) |
| Rated power (HO) | 0.37 kW 0.50 hp |
| Rated current (LO) | 1.70 A |
| Rated current (HO) | 1.30 A |
| Max. output current | 2.60 A |
| Pulse frequency | 4 kHz |
| Output frequency for vector control | 0 ... 200 Hz |
| Output frequency for V/f control | 0 ... 550 Hz |
| Power factor | 0.85 |
| Offset factor | 0.95 |
| Efficiency | 0.96 |
| Sound pressure level (1m) | 72 dB |
| Power loss | 0.04 kW |
| Filter class (integrated) | Class A |
| Cooling | Internal air cooling |
| Cooling air requirement | 0.005 m³/s (0.177 ft³/s) |
| Installation altitude | 1,000 m (3,280.84 ft) |
| Ambient temperature,Operation LO | -10 ... 40 °C |
| Line side Version | Plug-in screw terminals |
| Degree of protection | IP20 / UL open type |
| Frame size | FSA |
| Width | 73 mm (2.87 in) |
| Height | 196 mm (7.72 in) |
| Depth | 165 mm (6.50 in) |
| Conductor cross-section | 1.00 ... 2.50 mm² (AWG 18 ... AWG 14) |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099616 |
| Weight | 1,66 |
