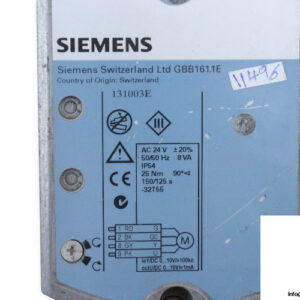

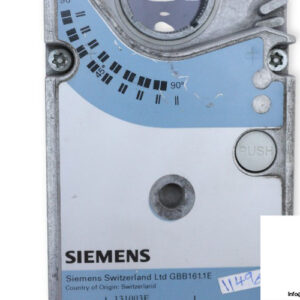

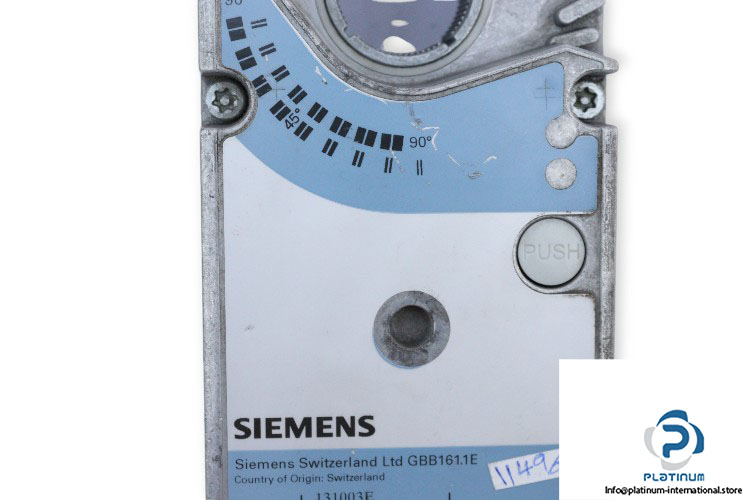

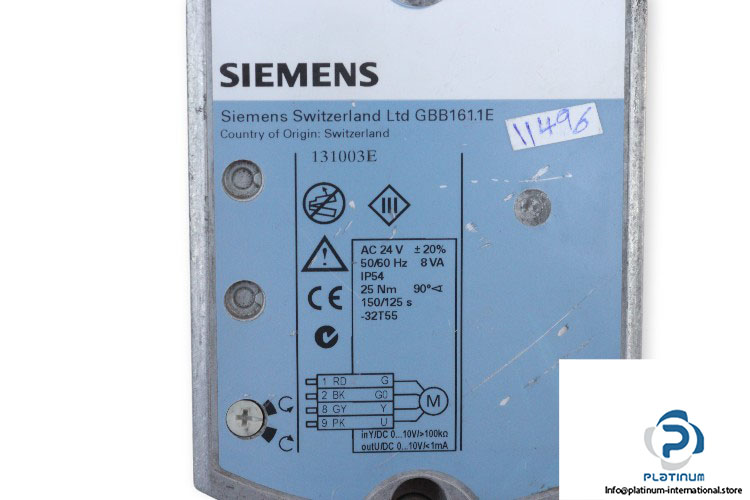

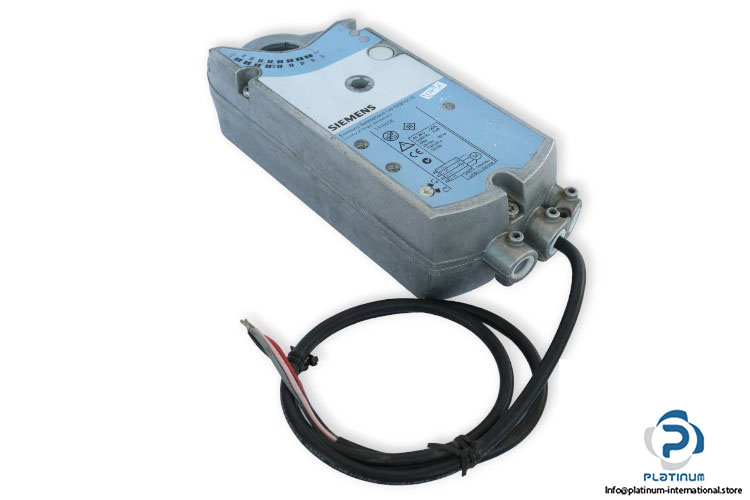

Siemens GBB161.1E Rotary AIR Damper Actuator

Manufacture: Siemens
Type: Rotary Air Damper Actuator
Model: GBB161.1E

Torque: 25 Nm
Angular rotation: 90°
Operating Voltage: 24 V AC
Input Positioning signal: 0 … 10 V DC (100 kohm)
Output Position feedback: 0 … 10 V DC (1 mA)
Power: 8 VA
Frequency: 50/60 Hz
Cable length: 0.9 m (4 wires)
Positioning time: 150/125s
Protection Class: IP54
Ambient temperature operation: -32 … 55 °C
Dimensions (W x H x D): 100 x 313 x 71 mm
