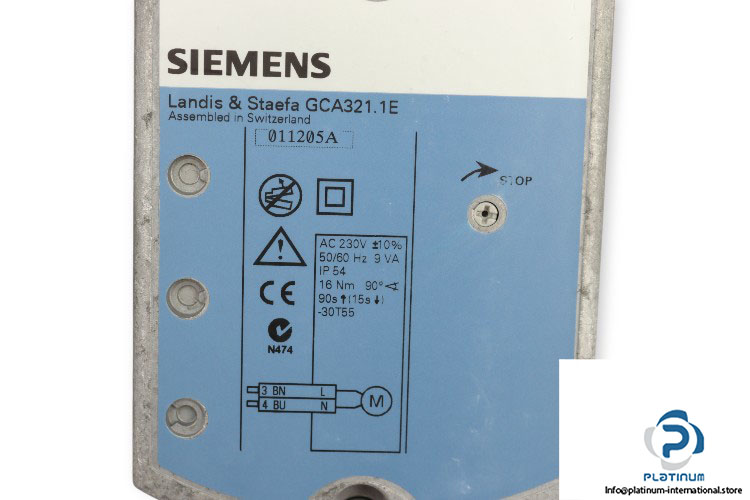

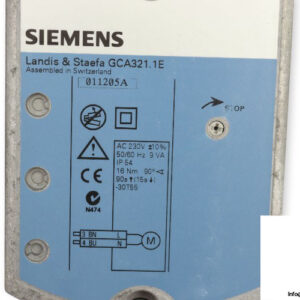

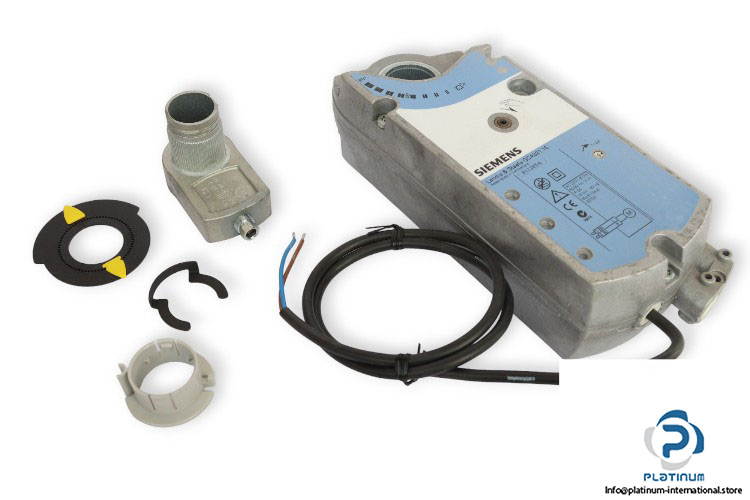

Siemens GCA321. 1E Rotary AIR Damper Actuator

Manufacture: Siemens
Type: Rotary air damper actuator
Model: GCA3211E
Part No.: 011205A

Torque: 16 Nm
Control type: Two-position control
Rotary direction: Clockwise or counter-clockwise movement depends on the mounting position of the damper shaft and on the type of control
Angular rotation: 90°
Operating Voltage: 230 V AC
Power consumption: 9 VA
Frequency: 50/60 Hz

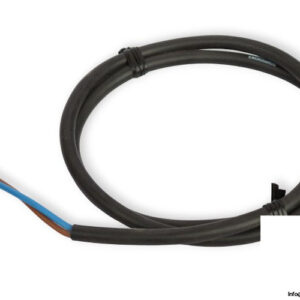

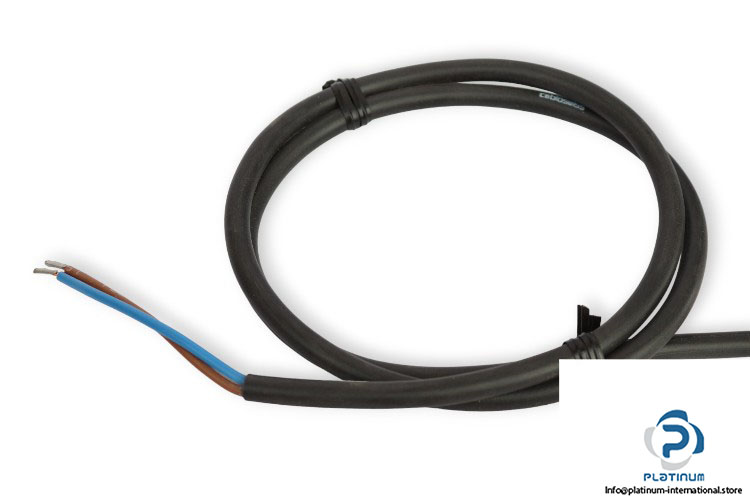

Cable length: 0.9 m (2 wires)

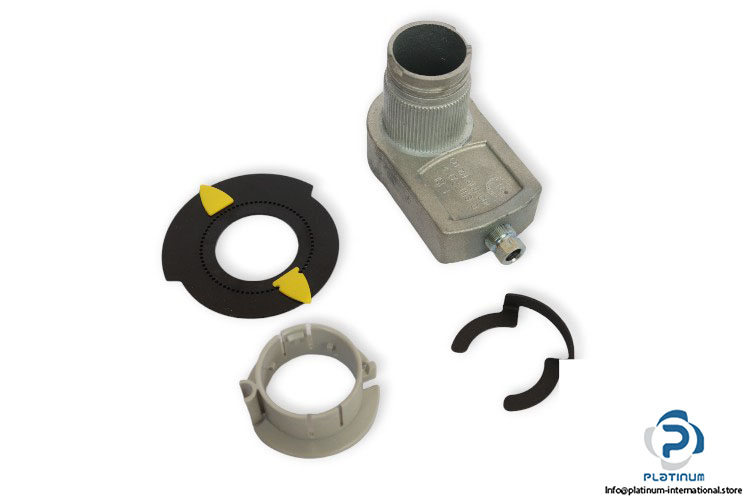

Damper shaft: Round / square Min.: 8…25.6 / 6…18 mm, shaft length: 20 mm
Positioning time: 90/15s
Protection Class: IP54
Ambient temperature operation: -32 … 55 °C
Dimensions (W x H x D): 67.5 x 300 x 100 mm
