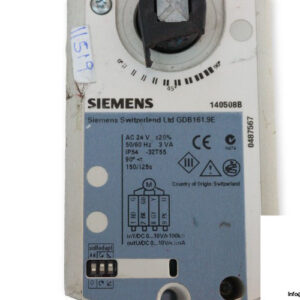

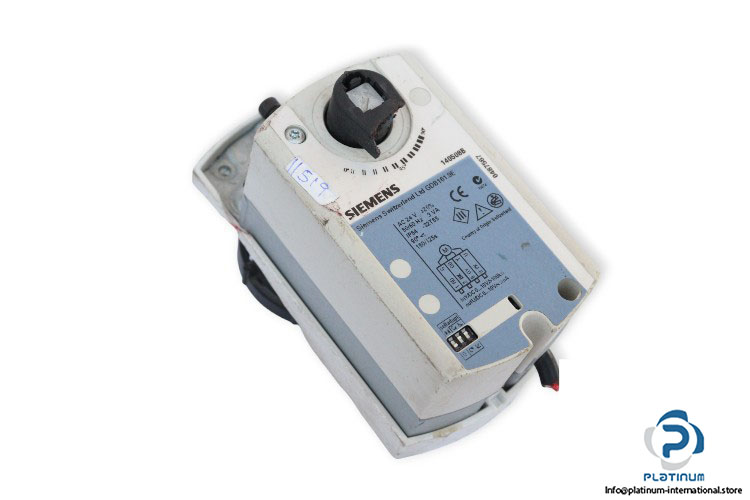

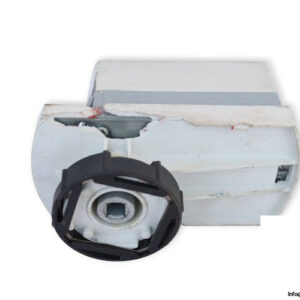

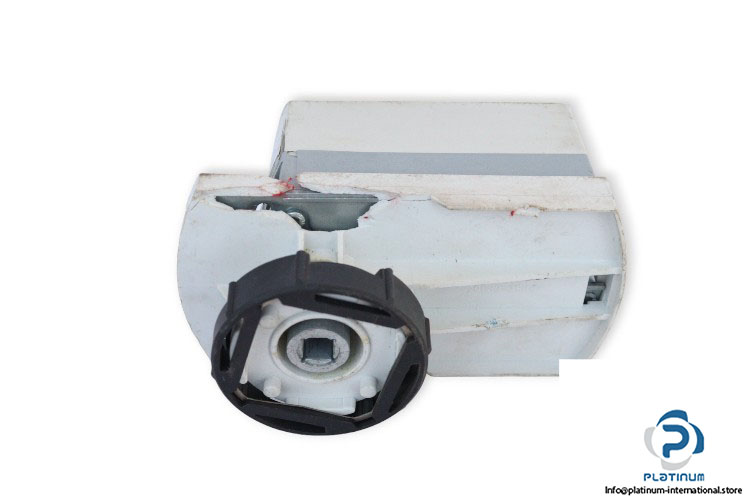

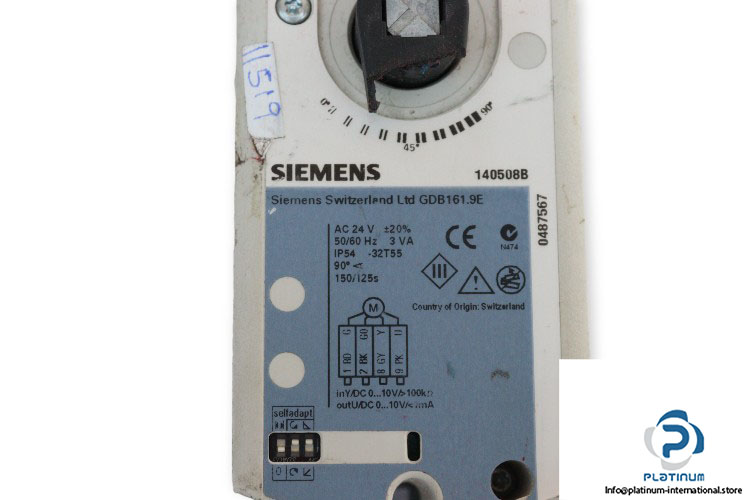

Siemens GDB 161.9E Electro Motoric Rotary Actuator

Manufacture: Siemens
Type: Electro motoric rotary actuator
Model: GDB161.9E
Part No.: 140508B 0487567

Torque: 5 Nm
Control type: Three-position control
Angular rotation: 90°
Operating Voltage: 24 V AC
Power: 3 VA
Frequency: 50/60 Hz
Positioning time: 150/125s
Protection Class: IP54
Input voltage Y: DC 0…10 V
Output voltage U: DC 0…10 V

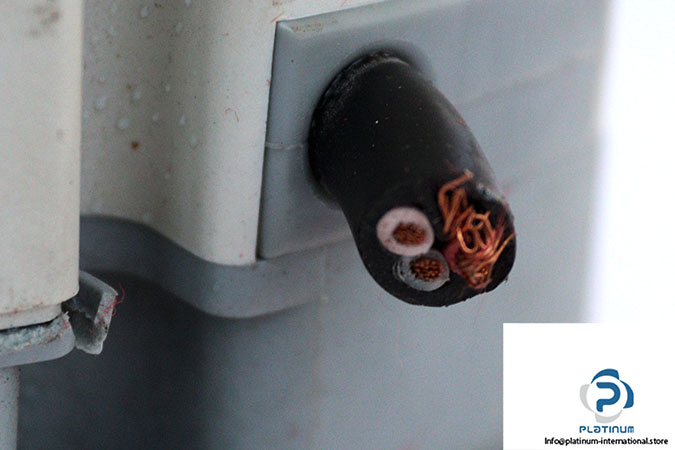

Connection cable length: 0.9 m
Ambient temperature operation: -32 … 55 °C
Dimensions (W x H x D): 101.2 x 112.4 x 143.2 mm
