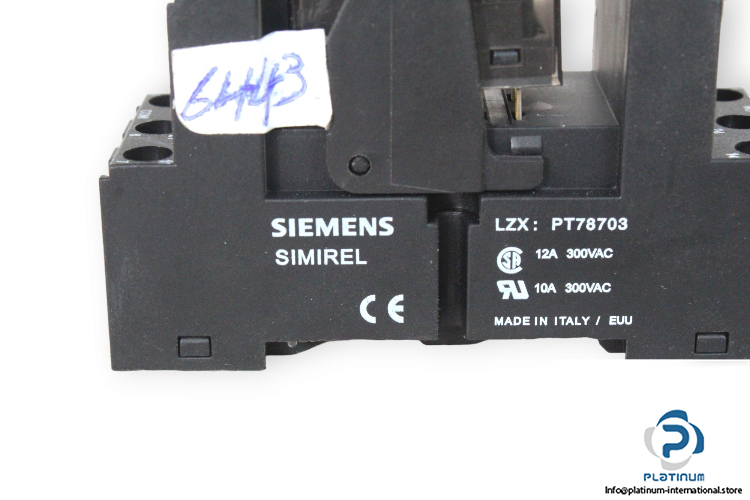

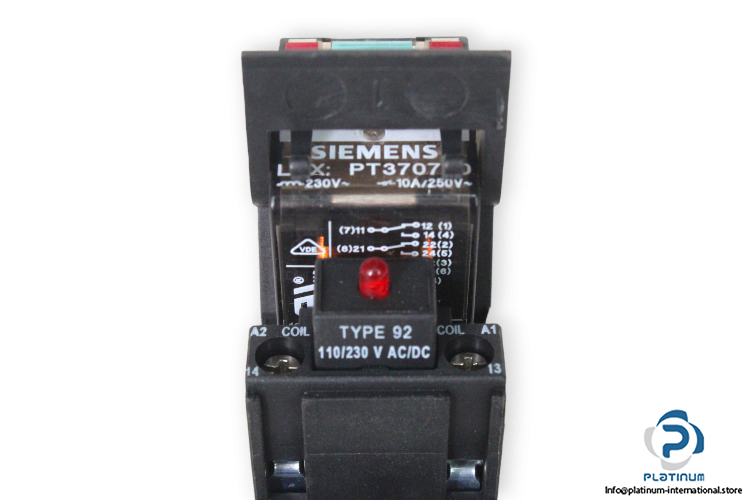

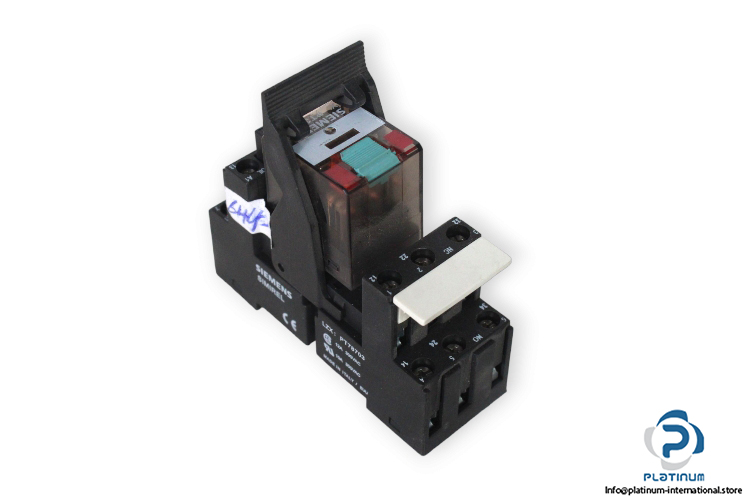

Siemens PT78703 / PT370730 Plug-IN Relay

Manufacturer: SIEMENS
brand: SIRIUS
Type: Plug-In Relay
Model: PT78703 / PT370730

Thermal Current: 10 A
product type designation: LZX
Reference Code According To: IEC 81346-2 K
Control Supply Voltage At AC:
 At 50 Hz Rated Value 230 V
 At 60 Hz Rated Value 230 V
Control Supply Voltage Frequency:
 1 Rated Value 50 Hz
 2 Rated Value 60 Hz
Number Of CO Contacts For Auxiliary Contacts: 3 Changeover
Operational Current Of Auxiliary Contacts At AC-15 At 250 V: 2 A
Operational Current At DC-13 At 24 V Rated Value: 4 A
Dimensions: 28 X 22.5 X 35 mm
