Siemens Elmo-G 2BH1 300-1AC01 Side Channel Blower
Used
In stock1 unitReady to ship

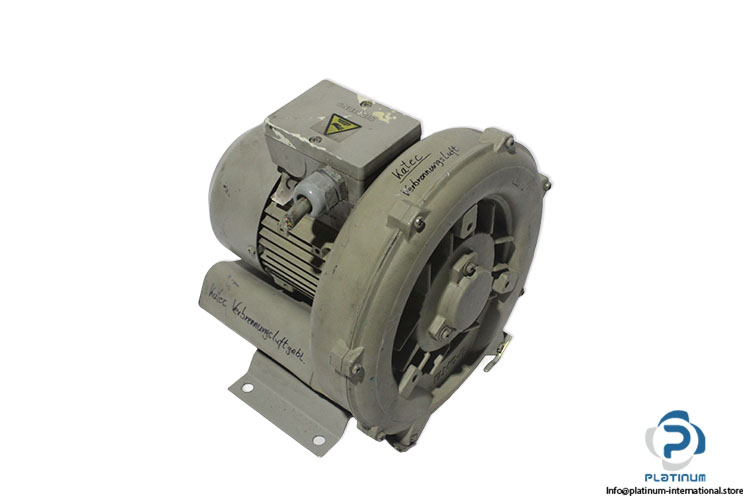

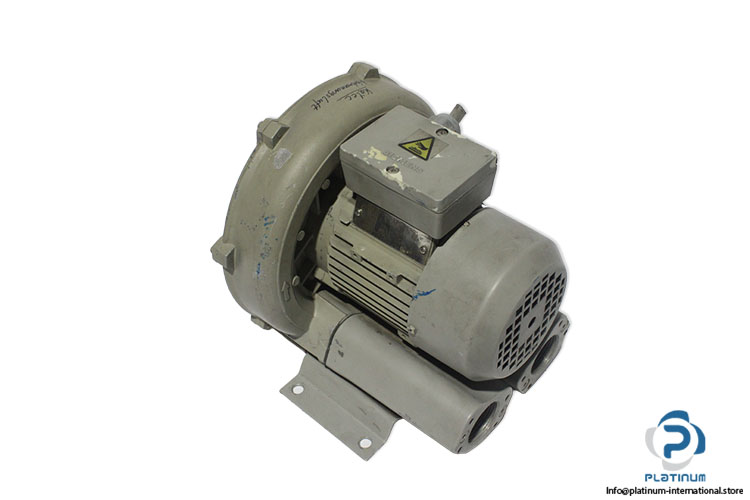

Side Channel Blower The SIEMENS ELMO-G 2BH1 300-1AC01 is a compact side channel blower designed for reliable vacuum and pressure generation. It features dual-frequency operation, IP54 protection, and is suitable for handling air and other non-flammable, non-corrosive, non-explosive gases.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

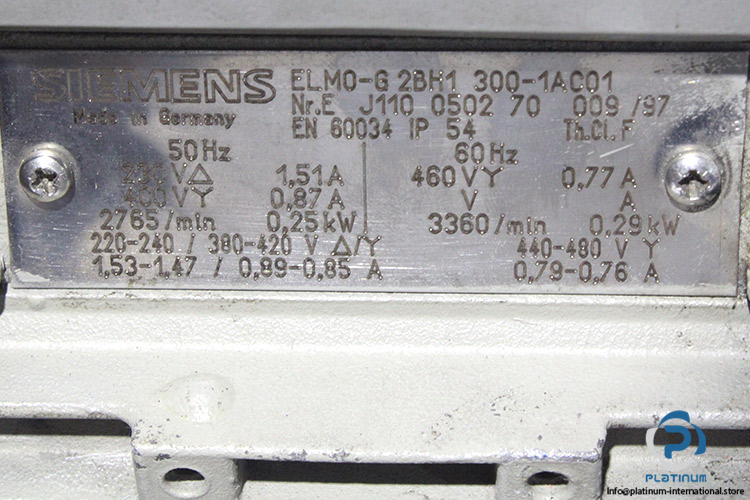

| Part No. | J110 0502 70 009 /97 |
| Supply Voltage At Frequency 50 (Hz) | 230 / 400 V delta/star |
| Rated Power (kW) At Frequency 50 (Hz) | 0.25 |
| Rated Current (A) At Frequency 50 (Hz) | 1.51 / 0,87 |
| Rated Speed (rpm) At Frequency 50 (Hz) | 2765 |
| Supply Voltage (V) At Frequency 60 (Hz) | 460 v star |
| Rated Power (kW) At Frequency 60 (Hz) | 0.29 |
| Rated Current (A) At Frequency 60 (Hz) | 0.77 |
| Rated Speed (rpm) At Frequency 60 (Hz) | 3360 |
| Protection Class (IP) | 54 |
| Insulation Class | F |
| Media Handling | Suitable for air and non-flammable, non-corrosive, non-explosive gases |

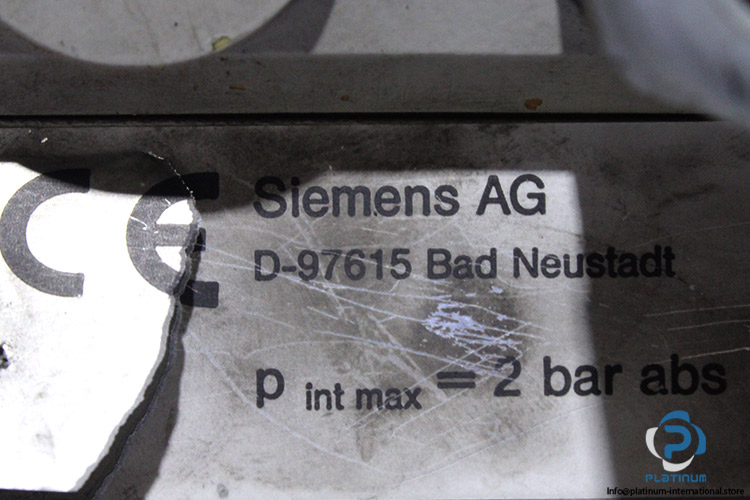

| Maximum Internal Pressure | 2 bar absolute (abs) |
| Standard | EN 60034 |
| Stock key | jo-004 |
| Condition | Used |
| SKU | 1100497 |
| Weight | 8,44 |
