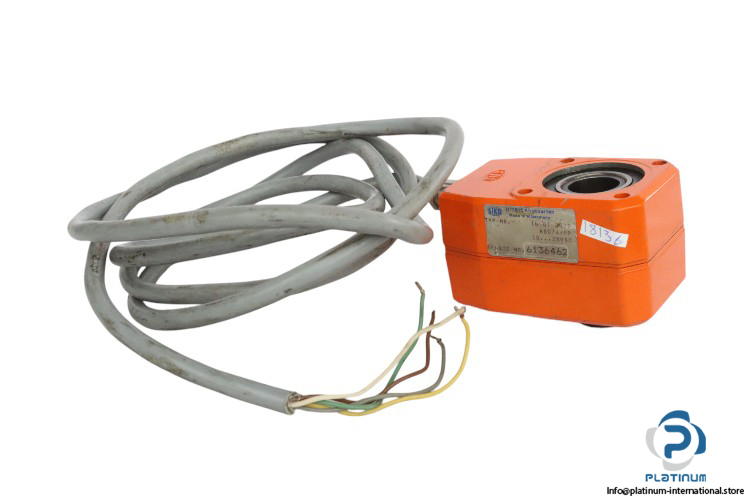

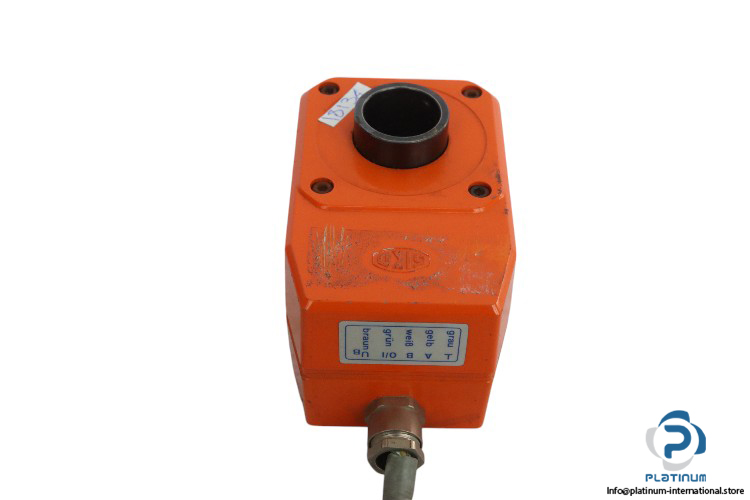

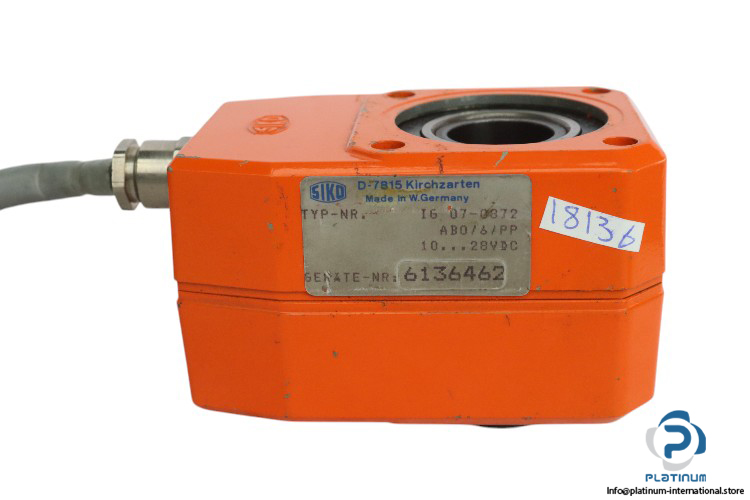

Siko IG07-0872 AB0/6/PP Incremental Encoder
SIKO IG 07-0872 AB0/6/PP Incremental Encoder Industrial-grade incremental encoder featuring a hollow shaft design, 1024 pulses/revolution resolution, and IP64/IP65 protection for precise motion control applications.
SIKO IG 07-0872 AB0/6/PP Incremental Encoder
The SIKO IG 07-0872 AB0/6/PP is a high-precision incremental encoder designed for accurate position and speed measurement in industrial applications. Featuring a hollow shaft design and a robust build, this encoder ensures reliable operation under demanding conditions.
Key Details:
Manufacturer: SIKO
Type: Incremental Encoder
Model: IG 07-0872 AB0/6/PP
ID No.: 6136462
Engineered for durability and high accuracy, this incremental encoder is ideal for motion control, industrial automation, and feedback applications requiring precise measurement and reliable performance.
| Shaft Type | Hollow shaft |
| Operating Voltage | 10 to 28 V DC |
| Current Consumption | 40 mA typical |
| Max. Pulse Frequency | 80 kHz |
| Shaft Diameter | 20 mm |
| Connection Type | Open cable ends (5 wires) |
| Resolutions | max. 1024 pulses/revolution |
| Output Circuit Type | Push-Pull |
| Protection Degree | IP64, IP65 |
| Phasing | 90° |
| Housing Material | Zinc, die-cast |
| Shaft Material | Black-finished steel |
| Ambient Temperature | 0 to 60 °C |
