Siko IG09M-0038-ABO-500-PP Incremental Encoder
399,99$
Industrial-grade incremental encoder with 500 pulses per revolution, hollow shaft (20mm), and IP53/IP63 protection. High-speed pulse output with reliable push-pull signal transmission.

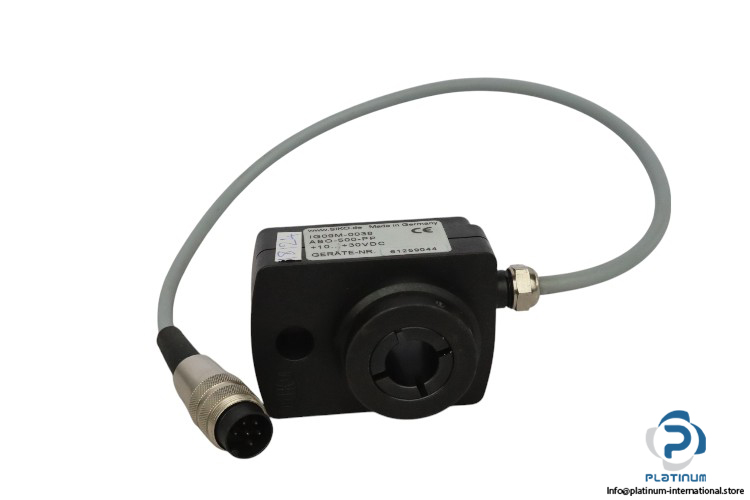

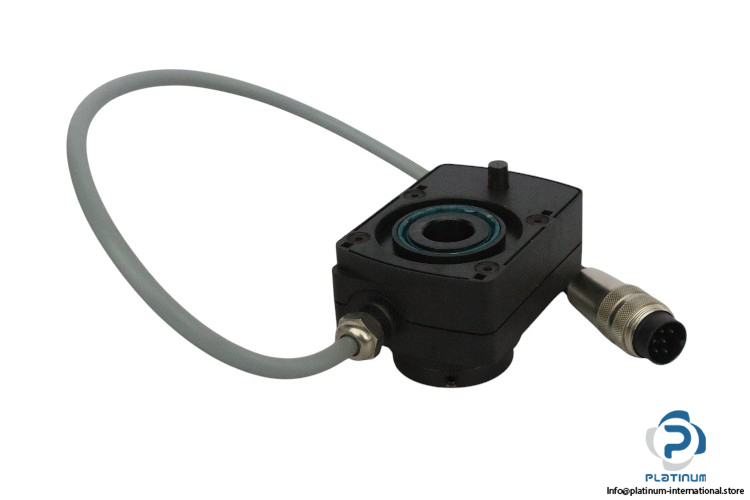

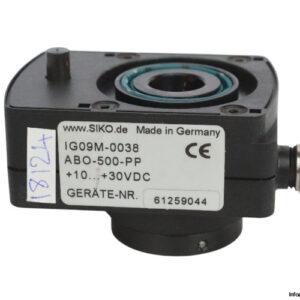

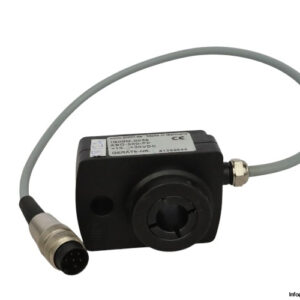

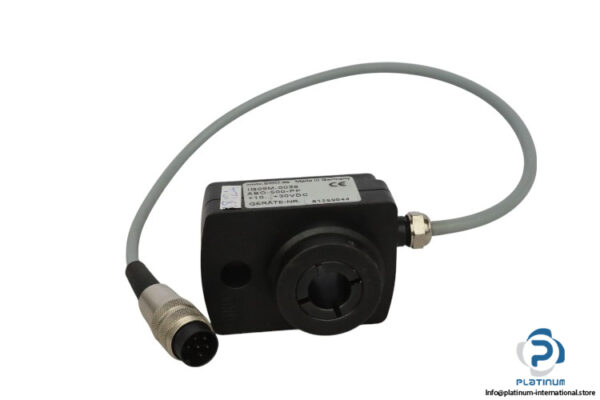

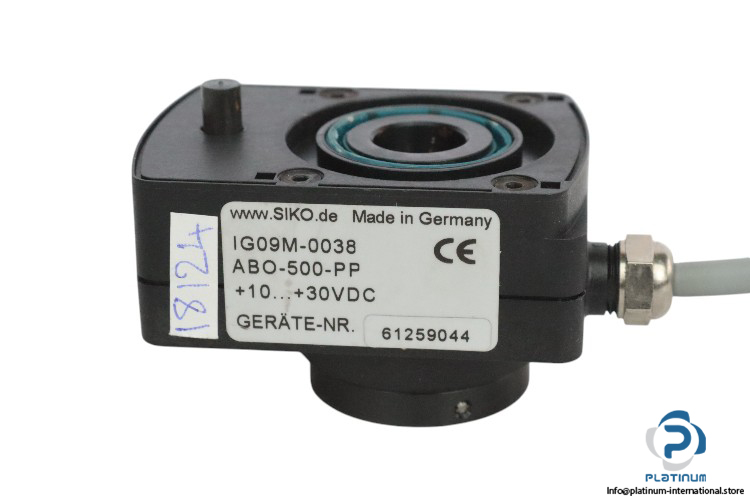

SIKO IG09M-0038-ABO-500-PP Incremental Encoder
The SIKO IG09M-0038-ABO-500-PP is a high-precision incremental encoder designed for industrial motion control applications. As part of the IG09M series, it provides reliable position and speed feedback with a resolution of 500 pulses per revolution. Featuring a robust hollow shaft design, this encoder ensures accurate signal output with high durability.
Key Technical Features:
Manufacturer: SIKO
Type: Incremental Encoder
Model: IG09M-0038-ABO-500-PP
ID Number: 61259044
Series: IG09M
With its high-speed pulse frequency and rugged protection ratings (IP53/IP63), this encoder is ideal for industrial automation, motor feedback, and positioning control applications.
| Shaft Type | Hollow shaft |
| Operating Voltage | 10 to 30 V DC |
| Current Consumption | Max. 25 mA |
| Max. Pulse Frequency | 100 kHz |
| Shaft Diameter | 20 mm |
| Connector Type | Cable with connector end (6 Pins) |
| Resolution | 500 pulses per revolution |
| Output Circuit Type | Push-Pull |
| Protection Degree | IP53, IP63 |
| Starting Torque | Max. 2 N.cm at IP53, Max. 3.5 N.cm at IP63 |
| Housing Material | Reinforced plastic |
| Operating Temperature | -20 to +100 °C |
