Siko WH58M-0029 S6/04-K-E2-4096-4096-KL-20 Angle Encoder
Used
Available on request
250,00$
ANGLE ENCODER
SIKO WH58M-0029 is a high-resolution angle encoder with 12-bit accuracy, a through hollow shaft design, and SSI protocol, ideal for precision industrial feedback systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

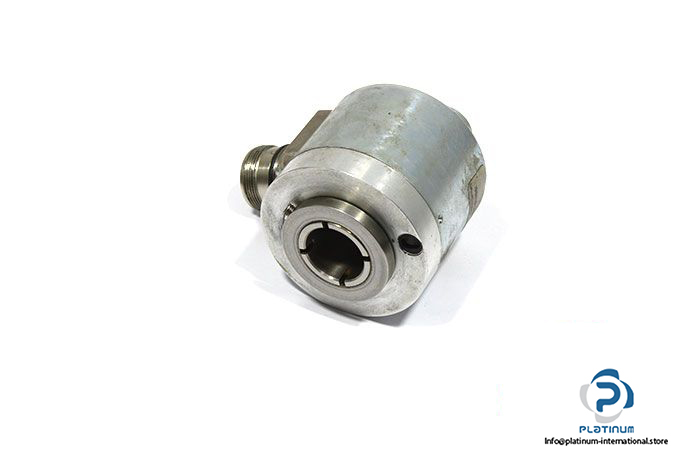

SIKO WH58M-0029 ANGLE ENCODER
The SIKO WH58M-0029 is a high-precision angle encoder designed for demanding industrial applications. With a 12-bit resolution and SSI interface, this encoder delivers reliable performance in motion control and automation systems. It is built with a durable through hollow shaft and IP65-rated protection, ensuring longevity in harsh conditions.
Manufacturer: SIKO
Type: Angle Encoder
Model: WH58M-0029

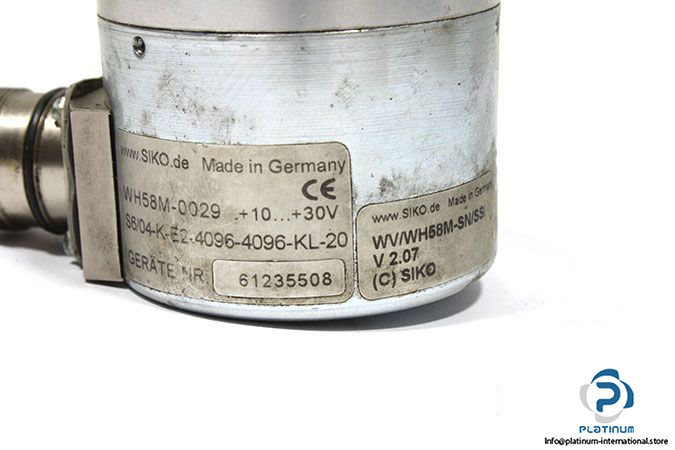

Order Code: S6/04-K-E2-4096-4096-KL-20
MRN: WH58M-S6/04-K-E2-4096-4096-KL-20

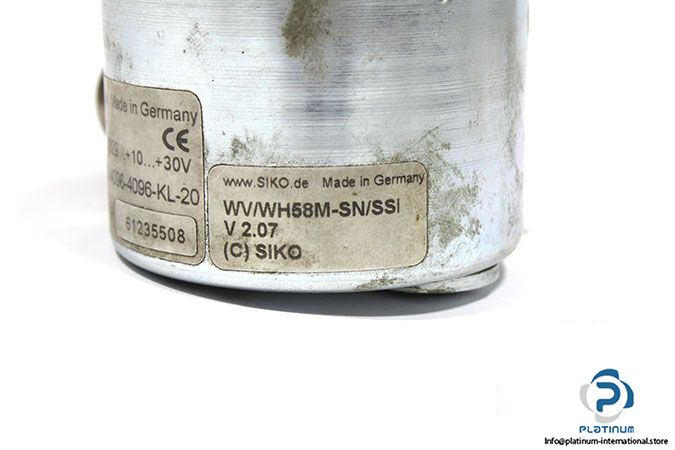

Ref No.: 61235508 / WV/WH58M-SN/SSI V 2.07
| Speed | max. 6000 rpm |
| Shaft Type | Through hollow shaft with clamp ring |
| Shaft Size | 20 mm |
| Protection | IP65 |
| Operating Voltage | 10 / 30 V DC |
| Interface / Protocol | SSI with external calibration input |

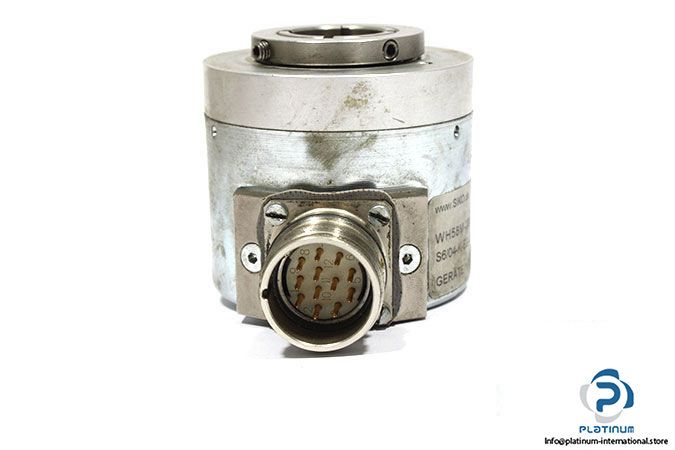

| Connection Type | Connector M23, 12-pin |
| Steps per Revolution | 4096 |
| Resolution | 12 bit |
| Temperature Range | -20 ... +100 °C |
