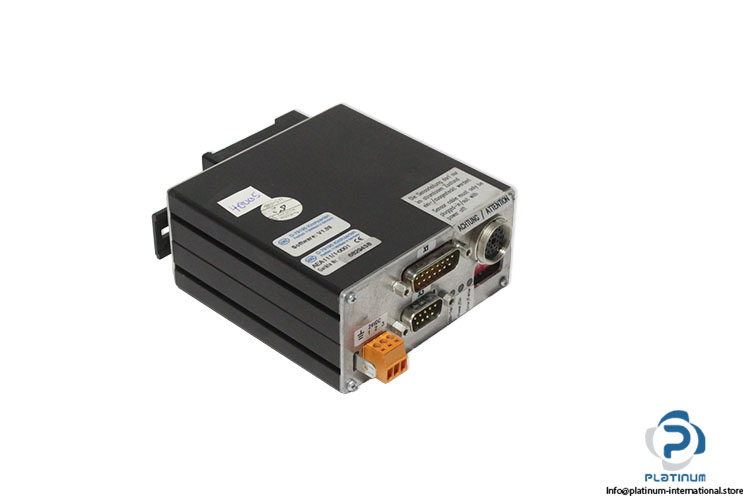

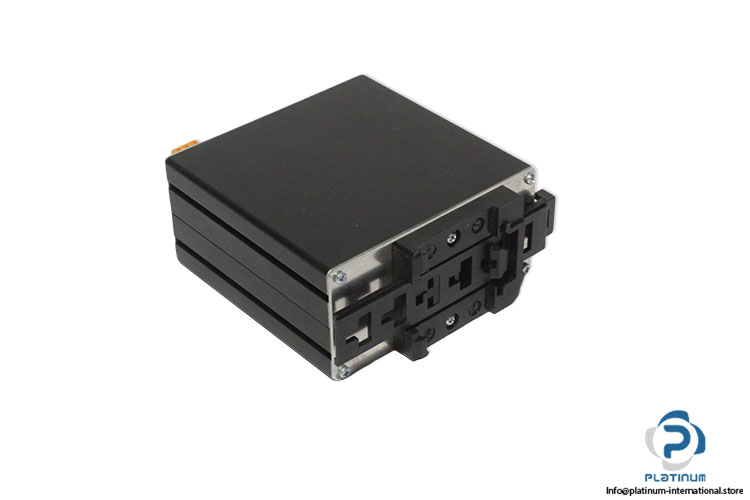

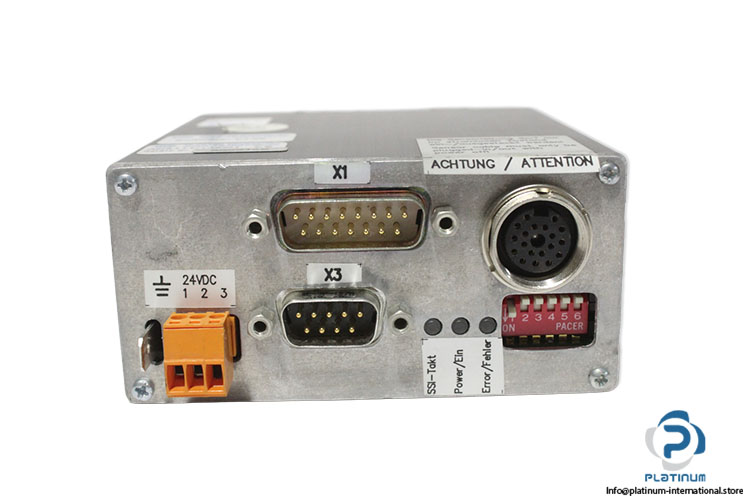

SIKO AEA111/1-0001 Translation Module
New
In stock1 unitReady to ship
Translation Module SIKO translation module with SSI and RS485 interfaces, 24 VDC supply and max. 1 µm resolution for precise industrial measuring and positioning systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

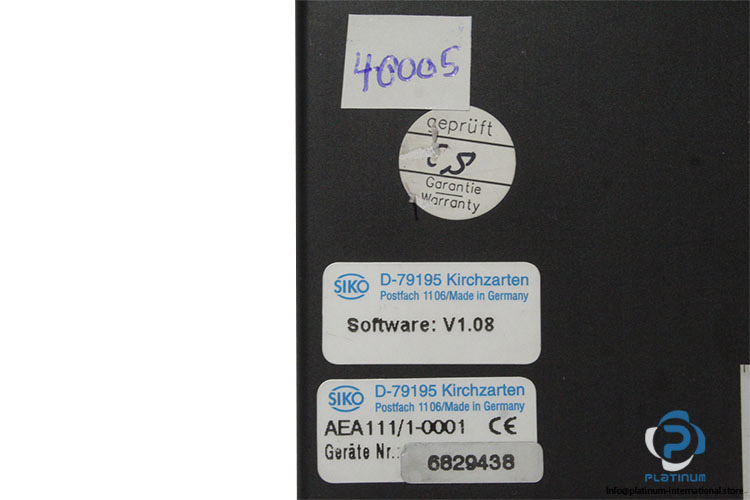

| Serial No. | 6829438 |
| Software version | V1.08 |
| Voltage | 24 VDC |
| Power consumption | max. 250mA @24VDC |
| Interface | SSI + RS485 |
| Realtime requirements | real-time signal processing |
| Interference protection class | 3 |
| Resolution SSI/RS485 | max. 1µm |
| Suitable magnetic sensor/tape | MSA111, MBA111 |
| Pole length | 1mm |
| Period length Sin/Cos output | 1000µm |
| System accuracy | ±10µm |
| Repeat accuracy | max. ±2µm |
| Measuring length | max. 4000mm |
| Operating temperature | 0 ... +60°C |
| Protection degree | IP20 |
| Dimensions | 94 x 46 x 110.5 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1098399 |
| Weight | 0,34 |
