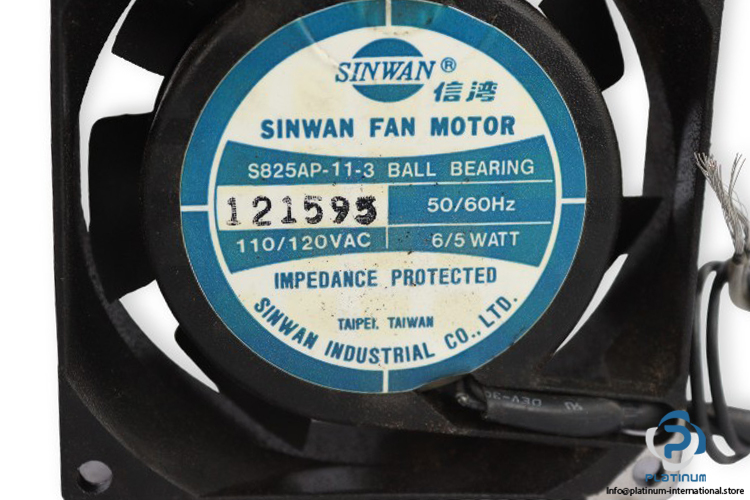

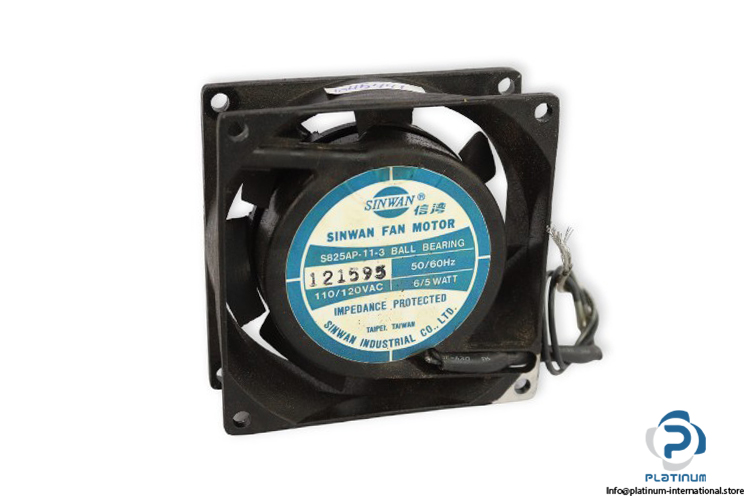

Sinwan S825AP-11-3 Axial FAN

Manufacturer: Sinwan
Type: Axial Fan
Model: S825AP113


Frame Shape: Square Frame
No. of Blades: 7
Dimensions (mm): 80x80x25
Direction: Push
Bearing: Ball Bearing
Voltages (V AC): 110-120
Power Rating (W): 5-6
Speed (rpm): 1800-1900
Flow Rate (m3/h): 25.35-27.04
Flow Rate (CFM): 15-16
Frequency (Hz): 50/60
Inverter: without Inverter
Number of Wires: 2
Blade material / Fan housing material: Plastic / Metal
