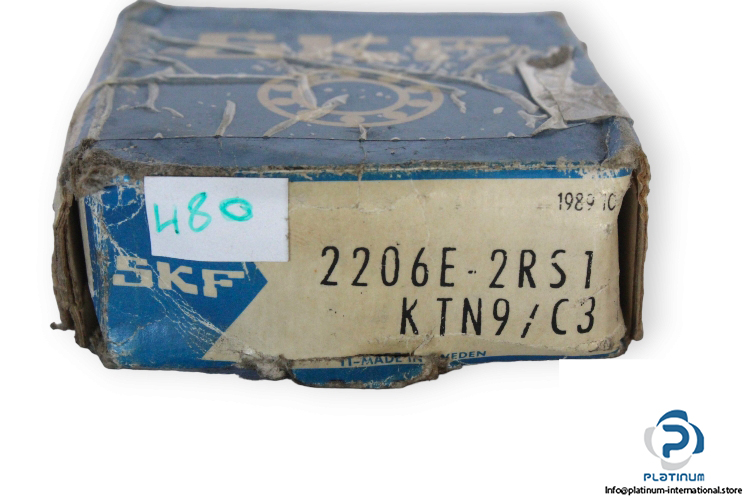

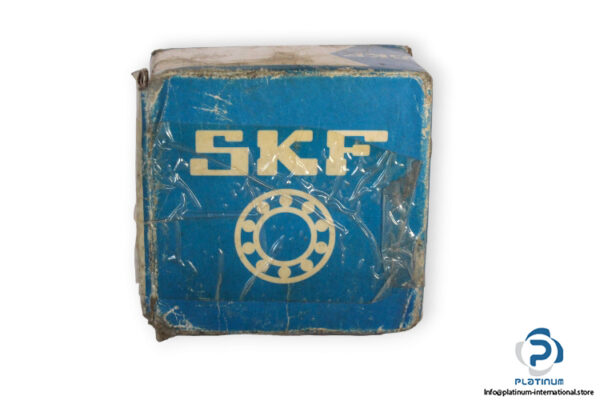

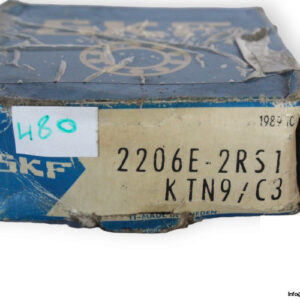

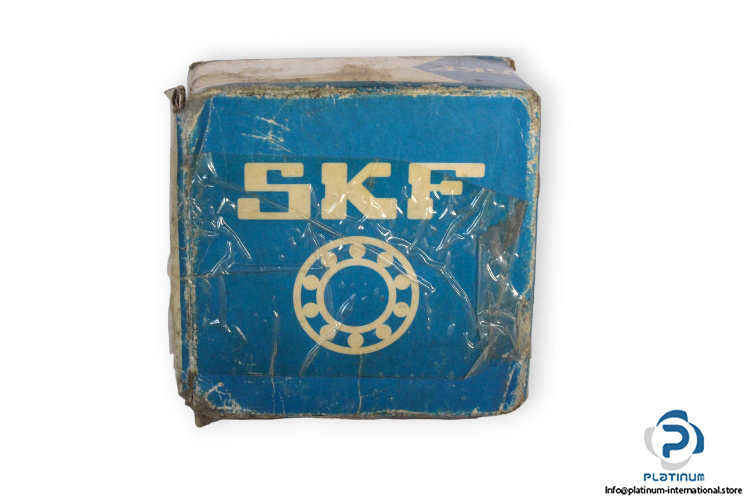

SKF 2206 E-2RS1KTN9/C3 Self-Aligning Ball Bearing

Manufacturer: SKF
Type: Self-Aligning Ball Bearing with tapered bore
Model: 2206E-2RS1KTN9/C3

Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 62 mm
Width B: 20 mm
Dynamic C_r: 15600 N
Static C_0r: 4650 N
Limiting speed: 7500 rpm
Reference speed: 22000 rpm
Bore type: Tapered 1:12
Cage: Glass fibre reinforced PA66 cage, rolling element centred
Radial internal clearance: C3
Sealing: Contact Seal on Both Sides
