SKF 22248 CC/W33 Spherical Roller Bearing

Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 22248CC/W33

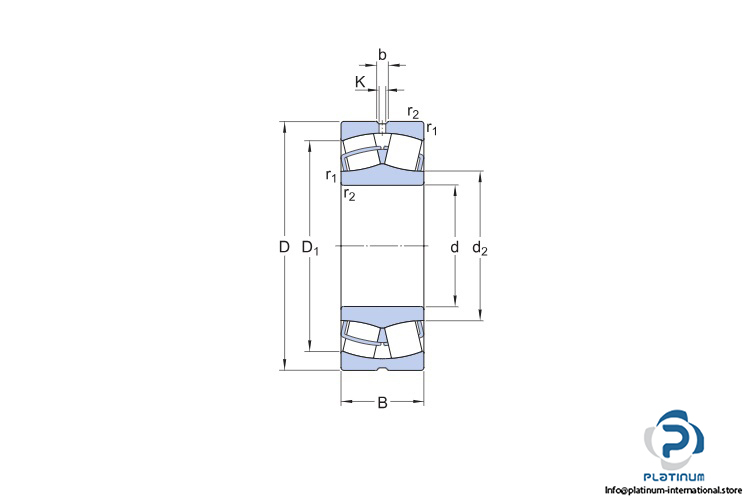

Dimensions
Bore Diameter d: 240 mm
Outer diameter D: 440 mm
Width B: 120 mm
Dynamic load rating: 2258 kN
Static load rating: 3000 kN
Fatigue load limit: 245 kN
Limiting speed: 1800 RPM
Reference speed: 1300 RPM
Cage material: Sheet metal
Lubrication: W33, Annular groove and three lubrication holes in outer ring
