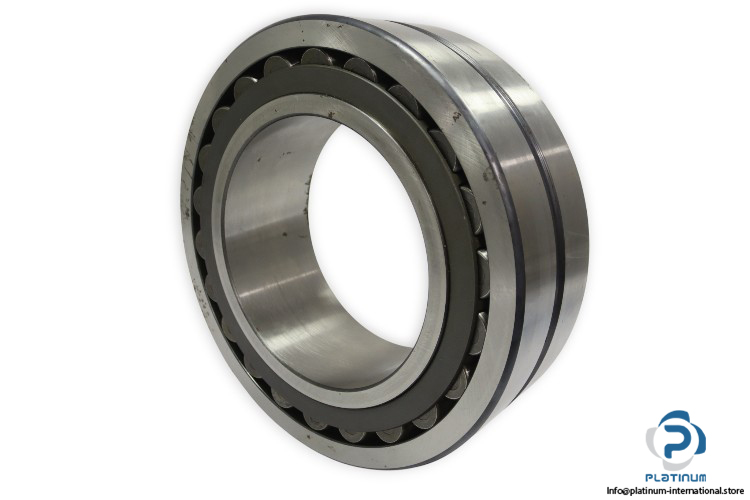

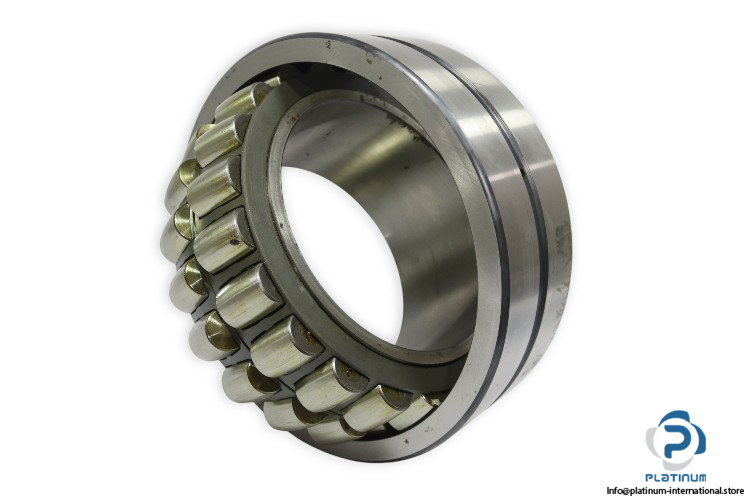

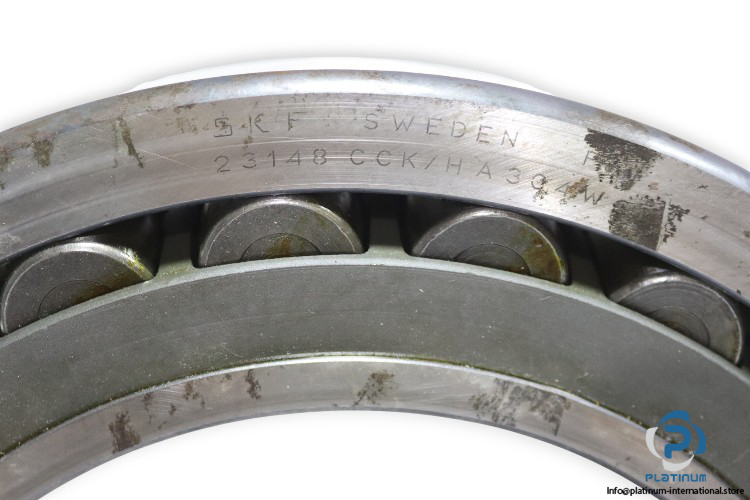

SKF 23148 CCK/HA3C4W33 Spherical Roller Bearing
Used
Available on request
Spherical Roller Bearing
SKF spherical roller bearing with tapered bore, C4 internal clearance, W33 lubrication features, and case-hardened inner ring for heavy-duty industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF 23148 CCK/HA3C4W33 Spherical Roller Bearing
The SKF 23148 CCK/HA3C4W33 is a high-performance spherical roller bearing designed for heavy-duty industrial applications requiring high load capacity, durability, and reliable operation under demanding conditions.
Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 23148 CCK/HA3C4W33
| Bore Diameter | 240 mm |
| Outside Diameter | 400 mm |
| Width | 128 mm |
| Basic Dynamic Load Rating | 2187 kN |
| Basic Static Load Rating | 3200 kN |
| Reference Speed | 1200 r/min |
| Limiting Speed | 1600 r/min |
| Bore Type | Tapered 1:12 |
| Cage | Sheet Metal |
| Radial Internal Clearance | C4 |
| Lubrication | W33, 3 lubrication holes (equally spaced) and lubrication groove on outer ring |
| Suffix | HA3, Case-hardened inner ring with hardened surface for wear resistance and high core toughness |
