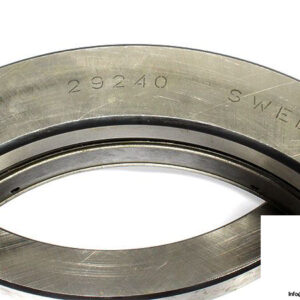

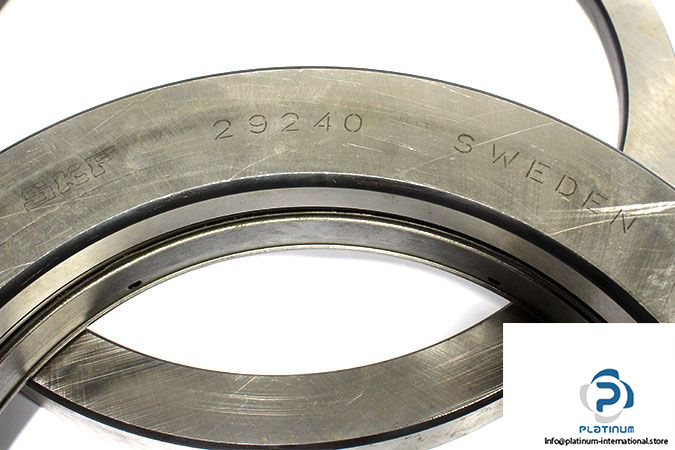

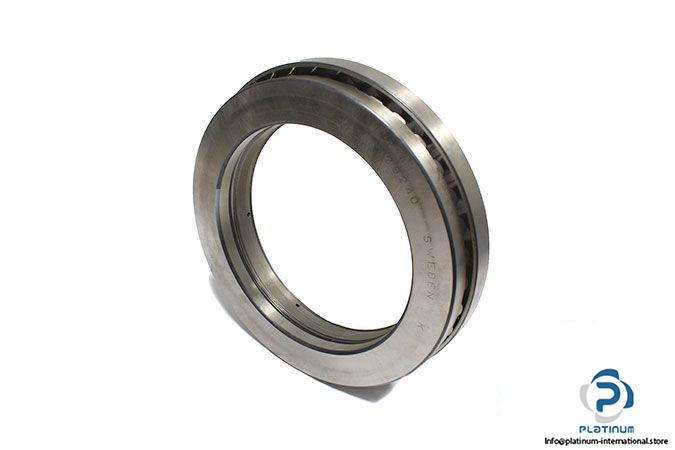

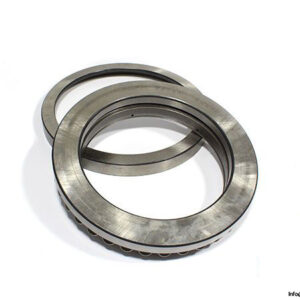

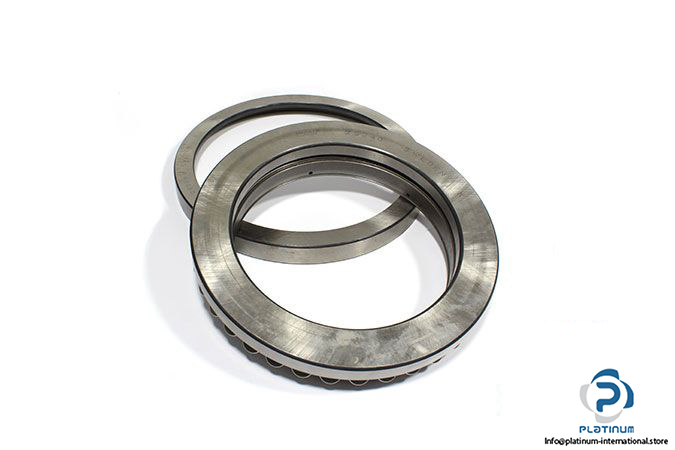

SKF 29240 Spherical Roller Thrust Bearing

Manufacturer: SKF

Type: Spherical Roller Thrust Bearing

Model: 29240

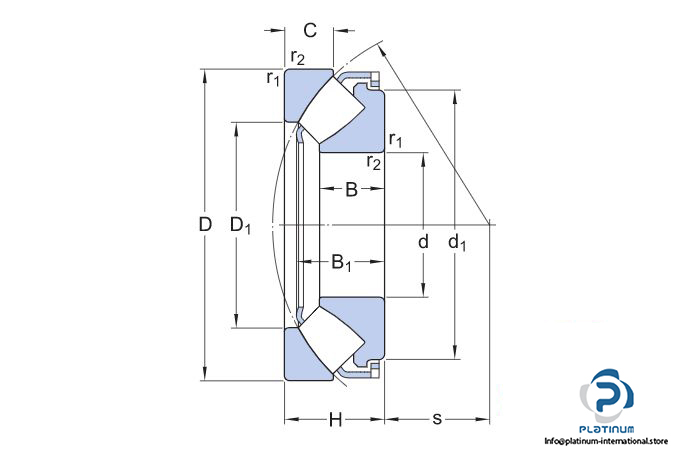

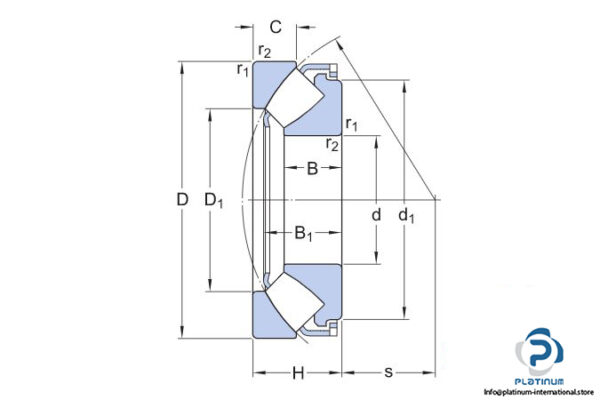

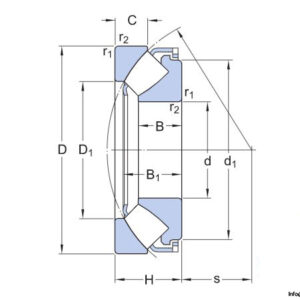

Dimensions:

Bore Diameter d: 200 mm

Outer diameter D: 280 mm

Width H: 48 mm

Minimum chamfer dimension r_{1,2 min}: 2 mm

Basic load ratings:

Dynamic C: 656 kN

Static C₀: 2650 KN

Fatigue load limit P_u: 285 kN

Reference speed: 1400 rpm

Limiting speed: 2200 rpm

Cage: Machined Brass Cage

Weight: 9 kg
